Slopes from sandwich panels do it yourself

01-07-2018

Useful

After replacing the windows there is a need to finish the slopes. The walls of the window niche are revetted with various materials or plaster. Sandwich panels are a practical and attractive finish for slopes. They are easy to install, protect installation seams and give the window opening a complete aesthetic look. Let's see how to make slopes from sandwich panels with your own hands.

What is a sandwich panel

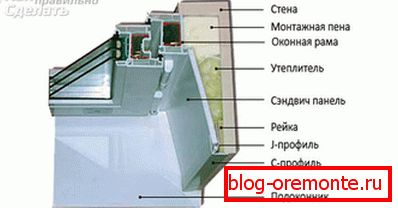

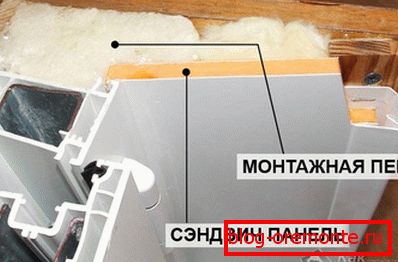

Finishing composite material received the name due to its design. Panels consist of two or three layers. In the first case, it is a sheet of plastic and insulation based on polystyrene, and in the second case, the decorative layer is located on both sides. Finishing material with a three-layer construction is more rigid and keeps its shape well. Extruded polystyrene foam is used as a heat insulator. Panel thickness is 10–32 mm. The color scheme of the decorative coating allows you to choose the finish, combined with the design of the room.

Advantages of sandwich panels:

moisture resistance;
durability;
a light weight;
low thermal conductivity;
resistance to temperature extremes and biological effects;
simple installation and maintenance.

Tools for work:

Building level.
Drill.
Putty knife.
Roulette.
Construction knife.
Stapler.
Scissors for metal.

Preparing to install slopes

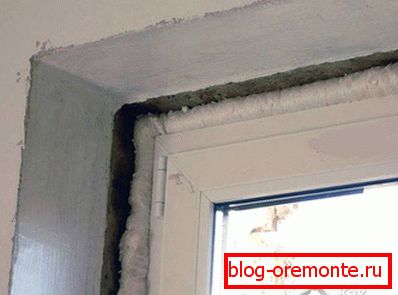

After installing the double-glazed windows, you must wait a day until the foam has dried enough, and cut it with a knife flush with the frame surface. Before installing the slopes of the sandwich panels, it is necessary to prepare the surface: clean of dirt and treat with antiseptic.

For mounting the frame under the panel, you will need a U-shaped and F-shaped plastic profile. The width and height of slopes are measured, the last dimension is taken twice - near the window and near the wall. According to the measurements, strips of sandwich panels are cut.

Assembly sequence

Installation of slopes begins with the installation of the starting profile. For this, a tape measure measures the inner perimeter of the window opening and cuts the required length of the U-shaped profile. The strips are fastened along the window frame with self-tapping screws with a step of 20 cm. The work begins with fixing the upper part of the profile.
The next step is to mount the batten from dry slats of 20 × 40 mm in size. The bar is located near the outer edge of the window niche. The verticality of the mount is checked by the building level. Screws, which are twisted at a distance of 40 cm, are used for fixation. Planks should not protrude beyond the wall plane.

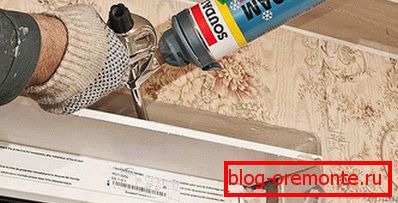

Installation of panels begins at the top. It is cut to size and inserted into the bolted start profile. The incision is made strictly at an angle of 90?, So that drafts do not appear because of the cracks during the joining. The edge is inserted tightly, but carefully, so that there are no profile bends. The empty space is filled with foam. The second end of the panel is screwed with screws to a wooden bar.
The installation of sandwich panels on the sides is similar to the described technology: the lining is installed in profile and attached to the rail. You can also use mounting foam. When using this method, it is important not to create excess foam, which will prevent the creation of a flat surface.
To make the outer edge of the slopes look attractive, the connection is closed with a decorative plastic F-shaped profile. The length of the strip is measured on the outer perimeter of the window opening and is cut off with metal scissors. Screws screwed into the crate prevent the PVC profile from snugly fitting, so it is necessary to cut the pieces of plastic at the points of contact. The strip of the casing is applied to the rail and the location of the screws is marked on it. After cutting off the extra sections, the profile is screwed around the perimeter. At the point where the sides and the upper band meet, it is necessary to cut the workpiece at an angle of 45 ?. Another variant of the docking - profiles impose on each other and sawed at an angle of 45? both at the same time. If the wallpaper is pasted on the wall, then a plastic strip is placed under the cutting place. Fastening to a wooden rail is done with staples from a construction stapler or put on liquid nails.
Sealant or liquid plastic is applied to the joints, this will protect the seams from contamination and moisture. The material is matched to the color of the fixed panels. Work is done carefully, speaking surplus wiped.

The decoration of the slopes takes a little time and does not include complex steps. This method can be safely used with wallpaper stuck on the wall. The use of sandwich panels does not require additional insulation or decoration. To clean the plastic surface of the panels any detergent will do, but it should not contain abrasives.

Video

See how to install plastic slopes. Visual instruction:
