Repair the air conditioner do it yourself

21-05-2018
Useful

Do-it-yourself air conditioner repair is not the easiest thing. After all, not every master is familiar with the device of climate technology. However, today many of these systems have special indicators that indicate the nature of the breakdown. It helps to cope with some common problems in the home. Air conditioning malfunctions are divided into the most common ones that can be fixed by yourself and those that require serious repairs in service. The following are the most common problems.

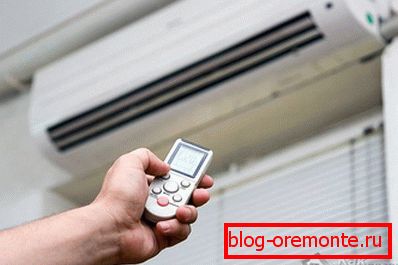

Air conditioning does not turn on

The reasons for the malfunction of the air conditioner in this case can be ridiculously simple. First you need to believe the remote. He, too, can fail. In the remote can simply sit down batteries.

  1. It is necessary to turn off the air conditioner, and then turn it on again.
  2. The same must be repeated with the remote control.
  3. In the remote, you can try to replace the batteries.

If these methods did not help, then it's time to contact a specialist. Because the causes of failure can be very much. Without special knowledge, fix the device will not work.

Appearance of water

If water is dripping from the air conditioner or condensation forms on its walls, there may be several reasons for this problem. Most often this suggests improper use of equipment. For example, the owner could start the cooling mode in the air conditioner at a time when there were low temperatures. This could well cause a plug in the drain wire.

  1. Before you fix the air conditioner, you need to figure out whether an ice block appeared in the drainage water supply system. If it has not yet appeared, then the water supply must be heated. The optimal temperature for heating is about plus 6-7 degrees.
  2. If the cork has already appeared, you will have to wait for the heat until it melts. Technique before this period can not be run.

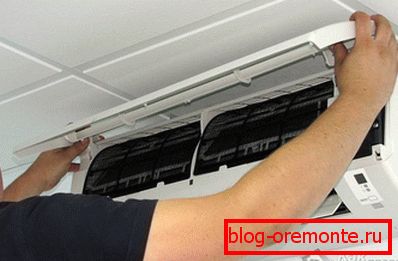

Clogged filters

Blockage blockage is the third most common problem. To eliminate it, you must first clean the air conditioning panel. Often there you can find a pile and dust. It can appear from carpets and various woolen products. Before you repair the air conditioner, you need to make sure that the filters are to blame.

Symptoms of clogged filters are sharp drafts and cooling in the room. If water and condensate were found along with this, then the problem could be a defective drainage system.

If the drainage system is faulty, simply cleaning the panel is not enough.

Installation

The installation of split systems raises no less questions than repairs. After all, very much depends on the correct installation of the air conditioner. Some problems with air conditioning devices occur precisely because of improper installation. Of course, installation is most often produced by professionals. However, this can be done independently. The main thing is to figure out how to do it right.

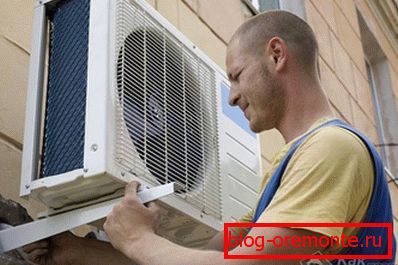

  1. The choice of location. Most modern air conditioners are split systems. That is, the device is divided into two parts. One of them is located on the street, where there is enough fresh air, and the second operates in the apartment. To install such an air conditioner, you must choose a place in the room and outside. When installing the unit outside the apartment, you must choose a place that will be located closer. The length of the track should not exceed 4 meters. The maximum size is 5 meters. Otherwise, the installation of the device will cost too much.

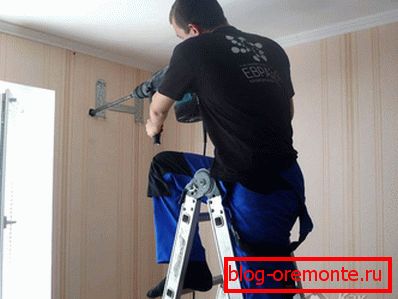

  2. Когда место выбрано, можно приступать к работе. Installation начинается с внутреннего блока сплит-системы. Он устанавливается строго по уровню, и этому есть разумное объяснение. При малейших перекосах из устройства может потечь, потому что в нем расположена емкость для конденсата. Поэтому при монтаже консоли надо пользоваться только уровнем. Не следует ориентироваться по линии потолка.
  3. When the console for the indoor unit is installed, it is necessary to make a hole that will bring the second part of the split system to the outside. Through this hole will be held the cable connecting both parts of the air conditioner. To do this, use a punch (if the hole lies in the concrete wall).
  4. Internal and external units combine with copper tubes. It is better if this work is done by a professional. Although the installation can handle the owner of the device.
  5. When the system is installed, the tubes can be hidden in a box. It is noted that they are often damaged by various birds that are addicted to the outer surface of the track.
  6. Final work. After installing the system, it is necessary to check the operation of the air conditioner in all modes. You should also test the noise level. Modern systems are almost silent, they are not audible against the background of street noise.

Если возникли непредвиденные неполадки, то придется обращаться к специалистам. Кондиционеры от ведущих компаний обычно устанавливают монтажные бригады. Installation устройства — очень ответственная процедура. Часто причины поломки кондиционера кроются в неправильной установке. Дефекты, которые агрегат получил из-за неправильного монтажа, не поддаются гарантийному обслуживанию, и это следует помнить.

Fault classification

In addition to the three main problems that may arise with similar installations in domestic conditions, the malfunction of the air conditioner may be different. All breakdowns can be divided into two parts:

  • problems with electronics;
  • cooling circuit problems.

Most often, problems with the refrigeration circuit arise due to the leakage of freon. The reason for this lies in 90% of cases in the improper installation of the structure. With regular service installation, such problems are solved by refueling. However, in the home there is no constant check of the air conditioner. In addition, the leak can be quite intense.

If the air conditioner is working poorly, then it must be fully diagnosed.

Begin diagnosis by checking the status of heat exchangers. They must function in such a way that nothing will disturb them. Interference may be the most common dirt or dust.

After that, we must proceed to check the integrity of the circuit. If the suction pressure in the system falls below zero, then it is likely that not only air but also water got inside. Having discovered such a problem, you should immediately start repairing the system, because you cannot operate the air conditioner in this condition.

With a lack of freon danger in the first place, threatens the compressor system. He can:

  • overheat;
  • corrode.

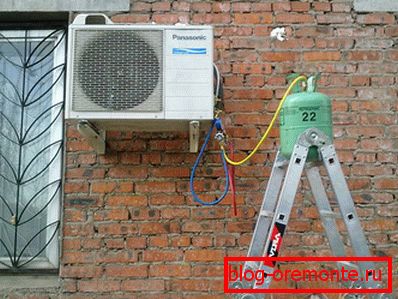

Lack of freon can be fatal to the system as a whole. Therefore, this problem must be resolved urgently. In some cases, avoiding freon refueling is no longer possible. Have to:

  • remove the old freon completely;
  • eliminate the cause of refrigerant leakage;
  • replace the anti-acid filter in the system;
  • replace the filter drier;
  • vacuum circuit;
  • fill the circuit with freon.

Tools such as leak indicators can help detect Freon leaks in a timely manner. They are added to the refrigerant. If a leak occurs, it becomes obvious.

Another tool is special electronic devices for searching for leaks. They flash the refrigerant.

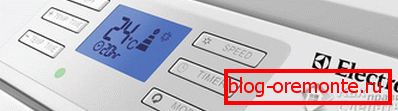

Problems with electronics - another headache of the owner of the air conditioner. Most often, either a compressor or a condenser suffers. To fix these devices at home is extremely difficult.

Video

In general terms, the operation of the air conditioner is presented in the following video:
