How to make waterproofing roof

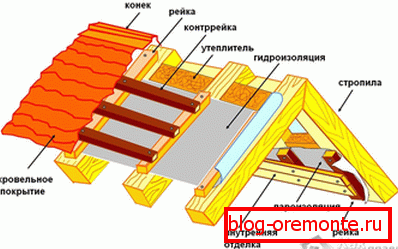

Any roof covering is, as you know, a pie of several layers, each of which is intended for its own purposes. These layers usually include:

• direct coverage;
• waterproofing layers;
• natural roof ventilation system.

Waterproofing features

The need for waterproofing due to the fact that the roof during its long operation is exposed to many destructive factors. If moisture gets under the roof, its insulation begins to rot and collapse, which can further damage the load-bearing wooden structures.

In order to make a waterproofing of the roof, one must first of all know that it not only protects the structure from moisture penetration, but also performs a number of auxiliary functions:

• prevents natural rainfall from getting under the roof;
• protects against condensation;
• part of the ventilation system.

Condensate, as it is known, is formed due to the temperature difference under and above the roof and can accumulate on the surface of the insulation or other structural elements. The formation of a special ventilation circuit (which also includes a waterproofing layer) prevents condensation.

Consider options for the formation of a protective layer using a variety of waterproofing materials.

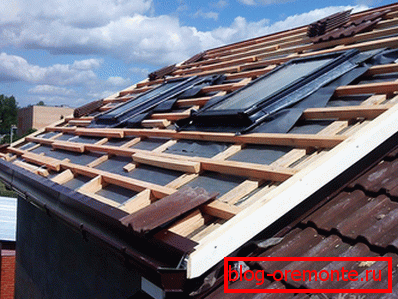

Isolation device

For the preparation of waterproofing used films of various types, which are usually divided into "non-breathing" and "breathing." The so-called "breathing" films are divided, in turn, into simply diffusion and superdiffusion. We first consider the second type of films, which are made of synthetic non-woven materials and work on the principle of a one-sided membrane that lets moisture vapor out and does not let it in.

Waterproofing of this type is placed directly on the insulation, which allows you to create a single ventilation circuit. The roof is thinner and lighter; In addition, such a film is able to provide good wind protection and significantly reduces heat loss through the roof.

Another kind of "breathing" materials are diffusion films, which are made of polypropylene or polyethylene. They have a special perforation, which allows steam to pass through but effectively retains external moisture.

Diffusion films should be placed on the insulation and on the working roof of the roof with a small gap, since their ability to transmit steam is slightly lower than that of membranes.

Films from the category of "non-breathing" are mainly made from the same polypropylene (polyethylene). When using them, you will have to create a double-circuit ventilation system under the roof. It is convenient to use such films when the section of rafters is a little more than the norm. In this case, there is a decent gap between the layer of insulation and the upper cut of the rafters.

Another type of "non-breathing" materials are the so-called anti-condensate films, the inner layer of which holds the condensate drops, preventing them from rolling down. Over time, all the condensate accumulated on them dries out. When using such a film, you will need to make a couple of small gaps of about 8-10 cm (for an ordinary film - about 5 cm).

The outcome of the consideration of the question “how to make roof waterproofing” is a reminder that it must be arranged throughout the roof, not excluding pediment and curtain hangings. In this case, the lower cut of the canvas should be removed beyond the edge of the eaves, thereby ensuring that it is adjacent to the walls and ventilation pipes.

Video

The procedure for laying roofing waterproofing is presented in the following video:
