How to make a wooden gate

02-01-2018

Useful

Arrangement of a reliable garage provides not only the safety of the car, but also prevents intruders from entering the vehicle. Each car owner seeks to have his own garage, since in large cities a lot of cars spend the night in the open air, being exposed to the harmful effects of the environment and being the object of increased attention from fraudsters. For the owners of country houses and cottages, the task of erecting the named building occupies one of the first lines in the list of priority events. But the excessively high cost of manufacturing this design in some cases discourages any desire to implement his plans. Significantly reduce costs in the construction of the garage will allow the use of wood and the manufacture of some elements of the structure with his own hands. An integral part of any construction of this type are the gate. For their high-quality construction, it is necessary to become familiar with how to make wooden gates on their own without the involvement of specialists.

The benefits of using wood

The main advantages of this material are:

Availability and reasonable price. It is possible to buy wood products of the required grade and required sizes with ease in a hardware store or specialized company. Price policy in comparison with the metal is much lower.
Ease of processing and installation. Without much difficulty, anyone can do the preparation of this material with their own hands. While the processing of metal products will require the use of expensive equipment: angle grinder, welding equipment, etc.
Durability and reliability. With scheduled regular maintenance, the wooden entrance structure will last for a long time. In comparison with metal, the wooden surface is not subject to rust, but requires periodic treatment with special compounds. If one of the sides of the canvas is damaged, it is really possible to replace the old boards with new ones in a matter of hours.

Depending on the tastes and preferences of each owner, it is possible to make any of the types of gates: a retractable form or a variant with a lifting device.

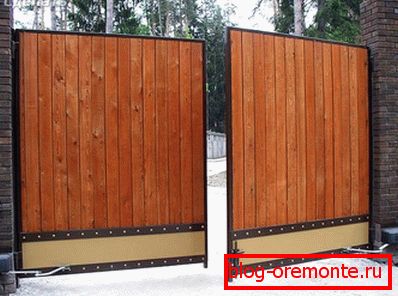

The most simple and versatile type are swinging gates. Manufacturing technology of this element is intuitive and does not require special construction skills from the master.

The main task is to take into account all the subtleties and important features, as well as to carry out high-quality measurements and processing of wood.

Preparatory work

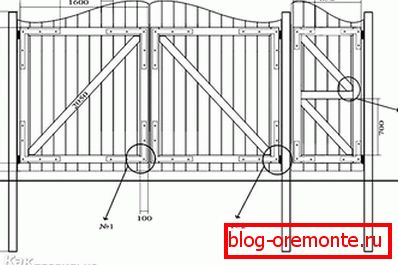

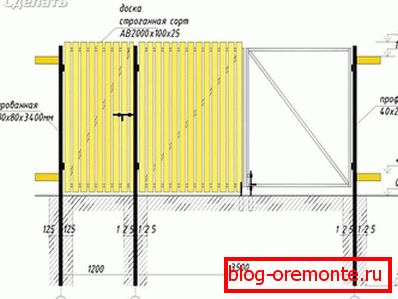

Before preparing the required material and tool, you should draw up a diagram of the future structure and accurately calculate its location. Having finished with these points, it is worth starting measurement of an entrance aperture. To increase the visibility, it is useful to use the existing sketch and adjust all the values to fit your version.

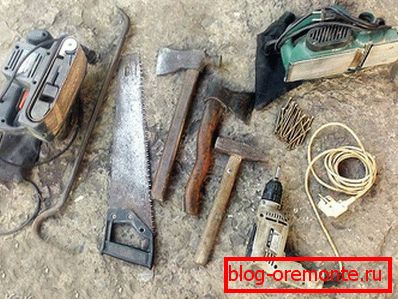

Drawing up a detailed sketch will allow you to better navigate the number of consumables and components. The construction of the structure involves the use and preparation of the following tools and materials:

timber or metal profile 50? 50 mm;
wooden boards having a width of 100 mm and a thickness of 25 mm;
metal hinges;
hacksaw;
roulette;
Bulgarian;
building level;
steel corners;
drill with a set of drills and bits;
stameska;
sandpaper;
primer;
machining compositions;
set of brushes.

In the manufacture of wooden doors for the garage must be prepared in advance special support. If they are not ready yet, then they will require two wooden beams or logs for their production.

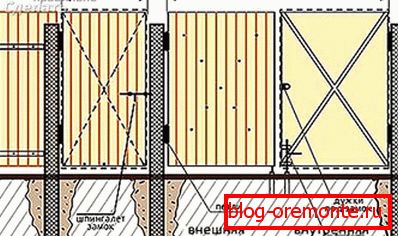

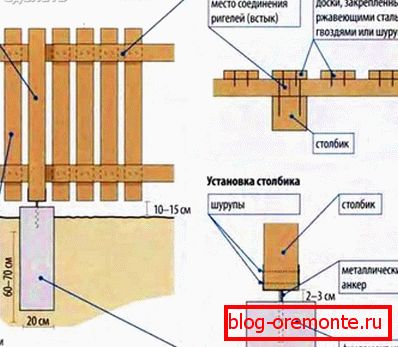

We prepare pits for them with a depth of at least 1.2–1.5 m. When constructing any support structure, the simple rule is that the deeper the posts are located, the more stable and reliable the gate will be. We cut the workpiece to the required height, taking into account the part of the support, which will be in the ground. To increase strength, it will be useful to further strengthen the foundation of future support pillars, by filling the bottom of the recesses with a small amount of crushed stone of the 5–20 fraction and ramming the resulting substrate.

To prevent the premature destruction of wooden poles, it is necessary to treat the places that will be underground with a special waterproof mastic or resin.

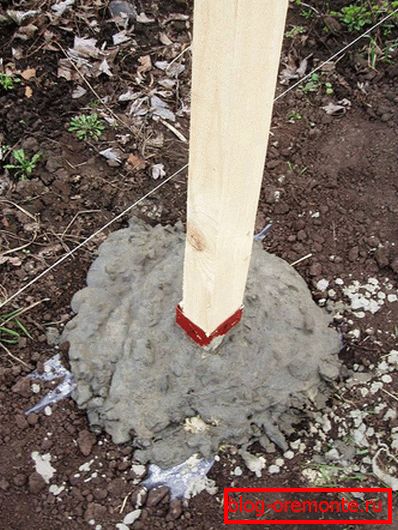

Next, we install the pillars, fix the vertical position of the construction level and fill the indentations with concrete or cement mixture. In addition, to give greater practicality and aesthetics, you can impose concreted places with large stones or bricks.

Installation

After completing all the preparatory procedures, proceed to the manufacture of the structure itself.

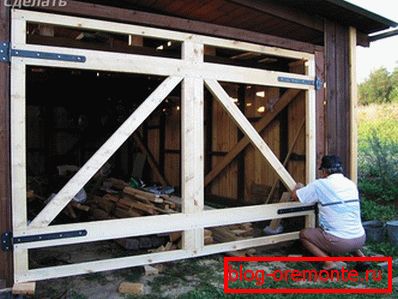

Frame

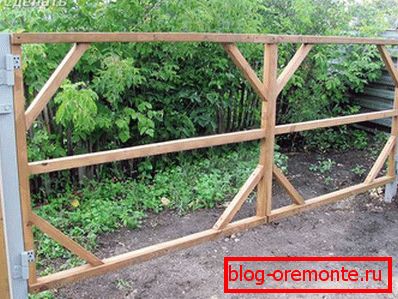

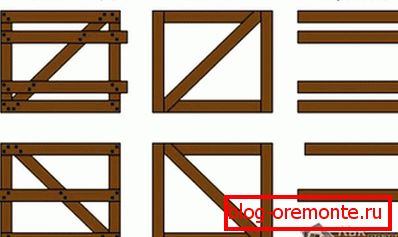

In accordance with the dimensions of the entrance aperture, we cut the wooden bar to the required values and lay it out on an even place so that a rectangle or square is formed depending on the type of the gate.

We check the horizontal position and verticality of the laid out bars, then we drill holes in the corner joints and fasten the structure with screws or pins. It will not be superfluous to strengthen the corners and the center of the frame, respectively, with steel corners and transverse beams. The ends of the last products are cut at an angle of 45 ?, placed cross-wise and fixed with screws.

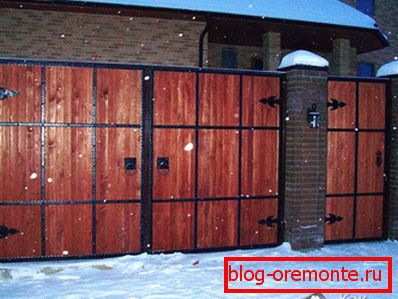

Metal profiled pipes can also be used as the basis for the future frame, but welding equipment will be required for manufacturing.

Finish

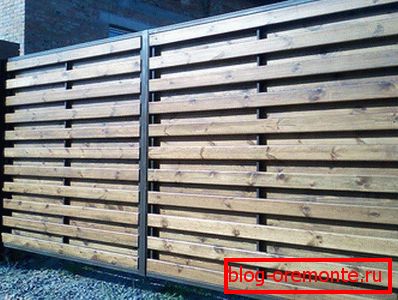

The next event is the manufacture and surface treatment of cladding elements. Depending on the material chosen and the size of the leaves, cut the required number of boards. As a rule, pine is used for plating, since wooden products from it have a small specific weight and are most protected from the harmful effects of environmental factors.

Facing board is placed close to each other and fixed with screws to the frame. Upon completion, all irregularities are cut and machined with a grinder or fine sandpaper.

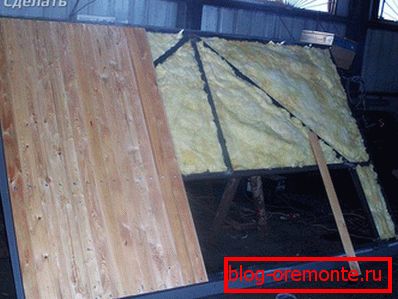

To increase the density of fit to the frame and maintain the temperature in the garage, the edges of the doors can be sheathed with insulation.

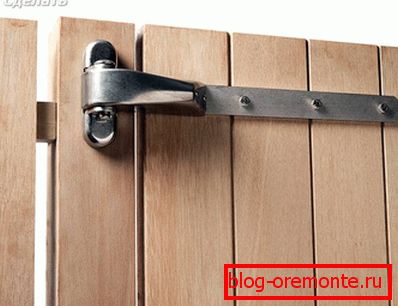

Installation of hinges and fastening the valves

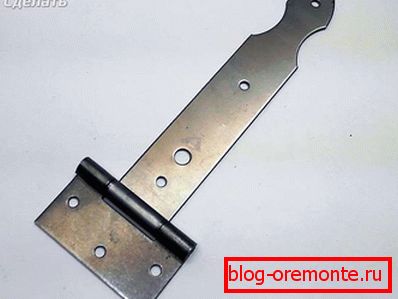

Preparing the gate leaf, proceed to the installation of metal hinges. In the case of attachment to the frame structure, the mounted parts are welded directly onto the frame, and, in the case of attachment to wooden bases, onto support columns. To determine the optimal location it is necessary to retreat from the upper and lower boundary of the support a distance equal to? total height of the pillars and map out the place. Then fix the hinges on the pillars and hang the sash.

Surface treatment

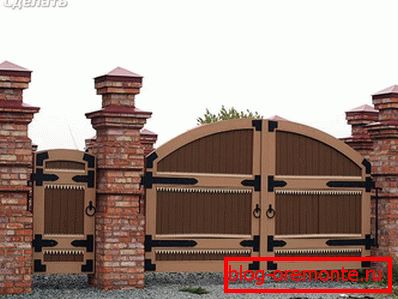

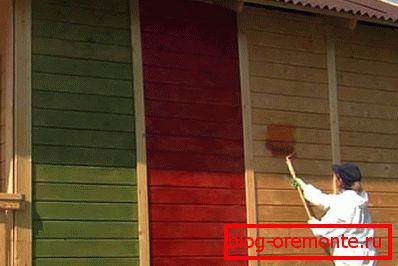

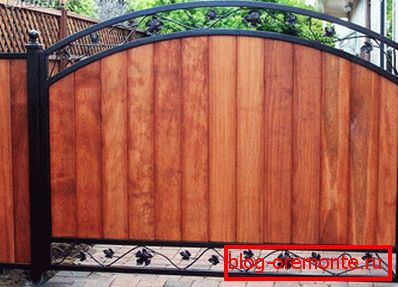

The gates are almost ready, it remains only to prime and coat the surface with antiseptics. After giving the necessary time to dry, proceed to the placement of accessories: handles, locks and bolts. To give a noble look, the gate can later be decorated with various forged elements.

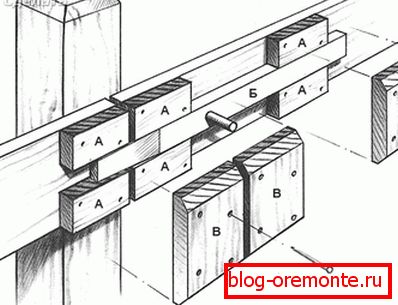

Reliable bolts

They can be as L-shaped metal rods located on the sash. For their operation, it is necessary to place two small lengths of pipe with a diameter ensuring the free running of the rod in the intended places of entry into the ground, and also on each leaf to make a platform for fixing the fastener handle in a raised position.

The procedure for the construction of wooden doors with their own hands is a simple exercise and accessible to the implementation of each person. As with any construction work, to achieve all of the goals, it is necessary to strictly follow the advice of specialists, carry out accurate measurements and use quality material. Performing all of these points in conjunction with planned periodic maintenance will ensure reliable operation of the entrance gate over the years.
