How to insulate the ceiling in the garage

Garages are built most often of bricks, cinder blocks, foam blocks or reinforced concrete structures. All these materials have high strength, but do not retain heat at all indoors. To create comfortable conditions for the owner and the car in the garage, it is worthwhile to warm it. In this article we will explain how to insulate the ceiling in the garage with your own hands, both from the inside and the outside, as well as which materials are better to choose.

Before you begin to insulate the ceiling, first make sure that it does not leak anywhere and repair it if necessary.

Insulation Overview

Special requirements are placed on the material for thermal insulation of the ceiling in the garage:

• moisture resistance;
• low thermal conductivity;
• resistance to rodents;
• affordable cost;
• easy installation

There are enough insulation materials on the market that combine these characteristics. When deciding how to sheathe the ceiling in the garage, you should study the properties of thermal insulation and finishing materials. The greatest demand from motorists use the products, which are discussed below.

Mineral wool. Insulation is presented in three forms: glass, slag and basalt wool.

• Glass wool - fibrous insulation resistant to chemical attack and fire. It is durable and elastic, does not lose shape during operation. In this insulation mouse will not start, but when you install it, you need protective equipment.
• Slag wool does not burn, has the lowest cost of mineral insulation, but has a high hygroscopicity, the material must be isolated from moisture.
• Basalt wool is durable and durable, but it is also afraid of moisture and requires the installation of waterproofing. The material does not rot, does not attract rodents, is affordable.

All types of wool are made in various forms: rolls, plates and mats. A heater with improved characteristics, which gives the gluing of a layer of aluminum foil. The reflective layer helps to keep the heat in the room and is a vapor barrier. The thickness of the material is 20–200 mm, but 50–100 mm is enough for warming the garage.

Styrofoam is the most popular insulating material. This is due to its low thermal conductivity, moisture resistance, minimal cost and ease of installation. The material has its drawbacks: flammability, fragility and attractiveness for rodents. Foam sheets with dimensions of 100? 100? 50 mm are most often used for insulation.

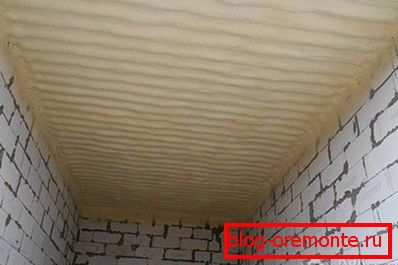

Polyurethane foam - insulation applied to the ceiling with the help of special equipment. The composition is sprayed with a layer up to 5 cm and after polymerization forms a monolithic surface. It does not burn, is not afraid of moisture and biological effects, durable and durable. High adhesion with any coating makes insulation universal. The material is sensitive to ultraviolet, therefore, requires the creation of a finishing layer.

Penoplex - material based on foamed polyethylene, combined with a layer of foil. It works on the principle of reflecting heat back into a room. Insulation is not afraid of moisture and fire, it is easily mounted, fastened with brackets or wooden crate. Supplied in sheets, the effective thickness is 25-30 mm.

Insulation outside

If an attic space is arranged above the garage, then insulation is performed outside. For this you can use polyurethane foam, mineral wool, foam plastic or expanded clay. The work is carried out according to the following technology:

1. The surface on which polyurethane foam is then applied is cleaned and prepared.
2. If you choose a different type of insulation, then arrange a crate of wooden bars treated with antiseptic.
3. The sheet of waterproofing creeps in, it is attached to the crate with a stapler.
4. Foam plates or mineral wool mats are placed between the bars. The material fits tightly, the slots are blown with mounting foam.
5. A vapor barrier membrane is laid on top of the insulation, you can use geotextiles.
6. On top of the insulation, the second tier of the batten is made and the finish is mounted - boards.

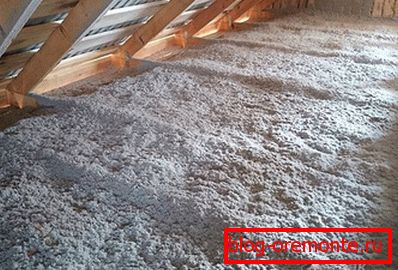

If expanded clay is used, it is poured onto the waterproofing sheet with a layer up to 3 cm, and is also covered with a film on top. For high-quality insulation, it is recommended to pour expanded clay with a coupler of 2–3 cm.

Warming from the inside

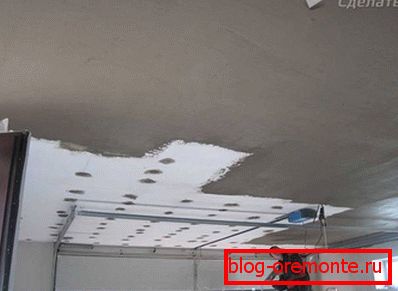

Choosing an inexpensive and moisture-proof material for thermal insulation, it is necessary to figure out how to insulate the ceiling. Depending on the overlap material, the method of installation of insulation is selected. On the concrete ceiling, you can glue the plates of foam or extruded polystyrene foam without prior preparation. Since foam is a combustible material, for safety, it is better to use plates marked with PSB-S, which have flame retardants.

Special adhesive composition is applied with a comb to the surface of the insulation, then the plates are pressed against the ceiling and held for some time. Connecting seams are sealed with the same composition. For additional fixation of the material using plastic dowels, umbrellas with a wide cap. Each plate is fixed with 5 dowels: 4 along the edges and 1 one in the center. Rigid plates of extruded polystyrene foam do not require a large number of fasteners, 2 plugs are enough. Finishing for insulation is plastering. Before applying the solution, the surface is reinforced with a fiberglass reinforcement mesh that is attached to the adhesive.

The second method of installing insulation is more costly and time consuming. It requires the assembly of the frame of galvanized profile. For guides, the UD profile is used, and for lintels, the CD wall profile. Thermal insulation includes several stages:

1. The ceiling is marked for mounting the profile.
2. The guides drill holes for fasteners, then the profile is fixed to the ceiling with self-tapping screws.
3. The foam is placed in the space between the profiles, from below it is supported by a jumper from the CD profile attached to the main screws. This sequence is maintained until the end of the installation of insulation.
4. Finishing is done with plastic panels that are stitched to the profile.

The first method of insulation is preferable, it is not only simpler, but also provides better thermal insulation, without disturbing the integrity of the ceiling by drilling.

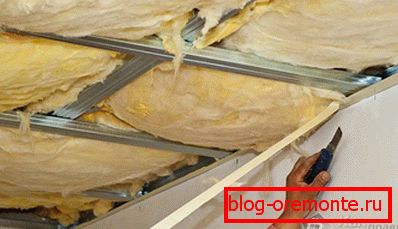

When used in the internal insulation of mineral wool, waterproofing of the ceiling is required. If the material gets wet because of moisture leaked from the roof, it will lose its heat insulator properties.

The surface of the mineral wool laid in the frame is always covered with a vapor barrier membrane, it allows moisture to accumulate in the insulation. The canvas is attached to the profiles on double-sided tape or staples with a step of 15 cm. Penoflex copes well with the role of vapor barrier, while it is an additional layer of insulation. The material is easily attached to the crate with staples, the joints of the cloths are glued with foil tape.

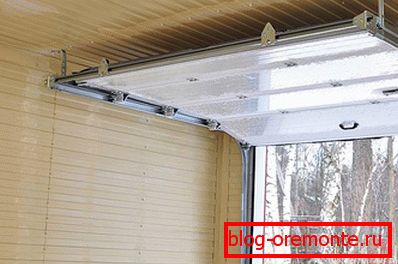

In recent years, many people prefer to finish the ceiling professional sheet.

Finishing with plastic panels is the most common option; this material is resistant to fluctuations in temperature, moisture, and is easily cleaned when contaminated. For heated garage you can use drywall or clapboard.

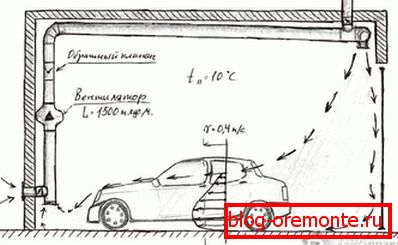

When performing thermal insulation it is impossible to turn the garage into a thermos, it is necessary to take care of the device of the ventilation system or to leave air vents. This will create a favorable climate without excessive moisture, dangerous for the metal of the car.

Video

This video demonstrates the process of warming the garage ceiling with polyurethane foam:

This video describes the basic rules for garage insulation:
