How to install the fittings in the toilet cistern

It is extremely difficult to imagine modern life without a comfortable bathroom. It is no secret that the toilet plays a key role in the bathroom. And so that its operation does not bring discomfort, the drain mechanism should work properly. In this article, you will learn how to install the fittings in the toilet cistern.

Features of the drain mechanism

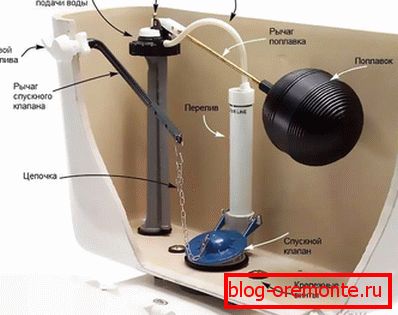

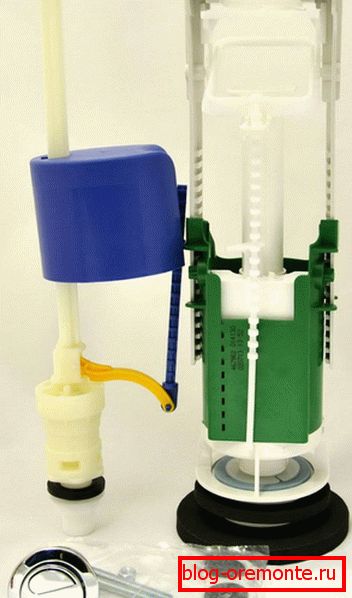

There are several types of drain mechanisms. But regardless of the type, it must ensure a good discharge of all the water that is in the tank. In this case, the drain should be carried out by lightly pressing the rotary lever or button. Some drain mechanisms today can be equipped with an economy system, so that instead of one button you will see two, one of which drains a smaller amount of water at a time. The drain mechanism is equipped with overflow. It is necessary in order to prevent the tank from overflowing. The whole mechanism has two important parts:

1. Drain siphon.
2. Pull lever.

The siphon has an opening which, when docked with the tank, forms an airtight connection. There are several types of siphons that regulate water in different ways. For example, "pear" is a rubber cylinder. To drain the water, use the handle or lever that pulls up or is pressed.

In modern drain systems, there is a stock in the drain mechanism, which raises the pear. As a rule, when the mechanism is triggered, water enters the toilet bowl.

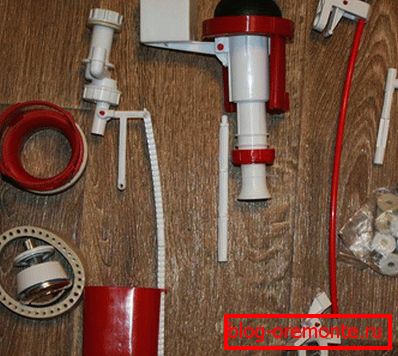

Installation of drain fittings

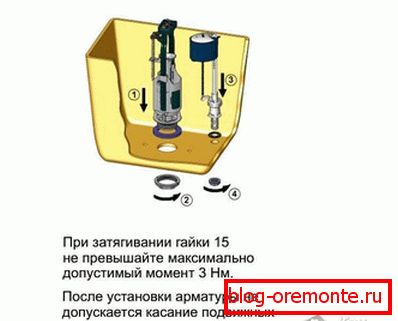

After installing the toilet in the first place going tank. Although there are different drain fitting systems, we will consider the most common installation. The installation process takes place in the following order.

1. The first step is to install a rubber gasket on the drain mechanism.
2. Then it is installed in the tank and twisted with the help of a plastic nut on the reverse side.
3. Complete with a siphon there are special sealing rubber gaskets and washers for screwing the cistern to the toilet. From the bottom side, plastic washers are put on the screws and a nut is screwed on. Do not forget to put the rubber sealing ring on the screw.
4. After that, you need to connect the water supply with a hose. There must also be a rubber gasket on the hose that will provide a tight connection.

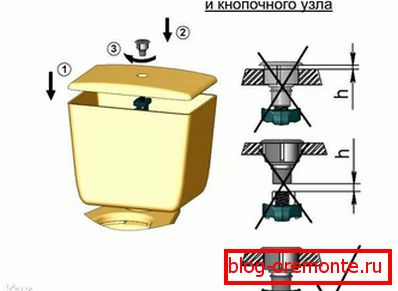

5. At the very end of the lid is mounted on the toilet bowl.
6. Then the button is twisted to drain.

Depending on the design of the drain tank, the location of the handle drain can be different.

That's the whole procedure for installation of valves on the drain tank. It remains to adjust the valve cistern.

Adjustment of the drain mechanism

After installation, it remains to check how the valve in the tank works. It is important to correctly adjust the water level inside the tank. To do this, the glass is fixed in the position in which the water will stop at the same level. Overflow height adjustment is also performed in parallel. Each locking mechanism is usually accompanied by instructions from the manufacturer. If you study it, you will learn how to adjust the toilet fittings correctly in your case.

In the attached video you will see how to properly install the toilet bowl fittings. If you have experience in this work, then leave your comments at the end of this article.

Video

In the next video, the master gives a lot of useful recommendations for installing the fittings in the tank, adjusting it, shows how to carry out the maintenance of the drain tank:

Example of installation of single-level fittings in the drain tank:
