How to install a heated towel rail in the bathroom

24-06-2018

Useful

When carrying out repair work or finishing a new bathroom, it is often necessary to solve a variety of tasks. As in most other cases, these actions can be carried out either independently, or seek help from hired specialists. Of course, the second option will entail additional costs, but it will save energy, and the first, on the contrary, will avoid material costs, but will require time and effort.

When the question arises of how to install a heated towel rail in a bathroom, you can do it according to your abilities, but in any case, you need to know, at least in theory, what this work is and what are the features of its implementation, for example, in order to monitor its implementation and to expand the horizons. This will be discussed further.

Description

Before turning to the direct description of the work, it is worth saying a few words about what a heated towel rail is and what its purpose is, since understanding this will make it easier to grasp the essence of the upcoming work. A towel warmer is usually called a piece of bathroom equipment, which is a curved pipe, the installation of which implies its heating. In addition to the following of the name of the destination element, the heated towel rail helps to maintain an optimal microclimate in the bathroom and resist the appearance of fungal infections. The additional open heating element allows to balance the excessive humidity to a certain extent, which usually forms inside the bath.

According to their device towel warmers are:

Electric. As it is easy to guess, this option heats up due to electric heating elements.
Water. Here, heating occurs due to hot water circulating inside.
Combined. This type of device can be met quite rarely, but it is a kind of hybrid of the first two.

It should be noted that the most common version of this device is a water heated towel rail, therefore, it is advisable to consider installation work in more detail using this example.

Installation

First of all, it should be said that installing a heated towel rail in the bathroom with your own hands is a rather difficult task, which can hardly be solved without sufficient experience, although it is quite possible if you have the desire and direct hands.

The installation of this heating element can be done in two main ways:

Installation in the heating system.
Installation in the hot water system.

It should be noted that the second option will be most preferable in most cases.

Insertion into the heating system should be carried out in strict accordance with the regulations stipulating this type of work, without doing this without coordination with the housing office, and finally, it should be noted that the operation of this element will be possible only during the heating season.

So, the installation of a heated towel rail in a hot water system is carried out in several stages, each of which requires separate attention.

Training

In most cases, the heated towel rail in the bathroom is installed initially. So it is often about replacing it, which means that at the preparation stage, it is necessary first of all to dismantle the old serpentine. If the installation is done for the first time, then you first need to decide on the installation location of the element and dismantle all other elements. In addition, for the work necessary to block the access of water to the system.

Dismantling

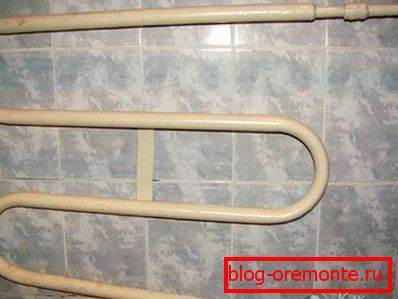

Next, you need to dismantle the old towel warmer. It should be noted that it can be connected using a threaded connection, as well as welded to the pipes.

If the element is bolted, then the nuts are simply unscrewed, and the element is removed, and if the heated towel rail is welded, then it must be cut by a grinder. It is necessary to carry out the work so that there is a place on the pipes for subsequent threading.

Jumper Installation

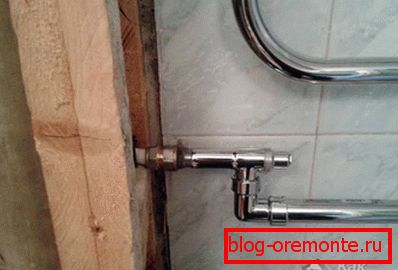

Then follows the installation of special jumpers equipped with ball valves. This is necessary in order in case of an emergency, there was a possibility of blocking the access of water to the heated towel rail, but that the entire standpipe was not blocked. The lintels are screwed onto the pipes at the connection points of the heated towel rail. If the question arises how to properly connect, then it should be said that the main condition is the tightness of the connection. Fortunately, modern sealants greatly simplify the task.

Installation полотенцесушителя

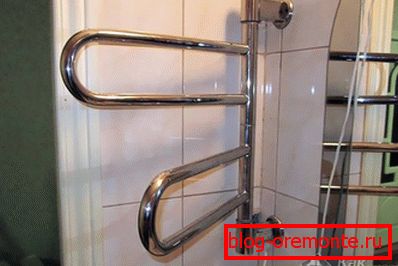

And the final stage of the work is the installation of the towel rail itself. The element is simply screwed to the jumpers. As always in such cases, first of all, you need to ensure that all connections are sealed. In addition to connecting the coil to the system itself, it is necessary to install special brackets for fastening to the wall in several places. For this, a number of holes are drilled, dowels are driven into them, and then fasteners are screwed.

Installing a heated towel rail, despite some complexity, is a quite doable task. In order to better understand the essence of the installation process, you can additionally read the relevant videos. So it will be much clearer, and therefore more understandable.

Detailed installation instructions:

Installation of the electric heated towel rail

An electric heated towel rail is one option. Such a device has no less functionality and greater breadth of use. And also, among other things, the installation of this model is much simpler than that of samples connected to water supply systems. In order to install and connect this device, it is necessary to carry out a series of simple steps.

First you need to decide on the installation site. It is worth noting that, unlike the usual "water" option, an electric heated towel rail is not tied to the location of water supply pipes and can be installed in any convenient place. At the same time, you need to decide how the device will be connected. The accessory can be powered either directly from the distribution box or simply from the outlet. In the first case, it will not be possible to do without bathroom equipment with an additional branch of the wiring, it is somewhat more difficult, but also safer. In the second case, the heated towel rail just plugs into a wall outlet, which is simpler, but more dangerous.
Next you need to prepare the surface of the wall. The point is that in the place of the proposed installation all protruding elements should be dismantled, such as shelves or supports.
The next stage of installation is the preparation of the necessary holes for fasteners. Since the device, in general, is not very heavy, you can simply attach it to the wall and estimate how it will be fixed. Then, in the necessary places, holes are drilled into which the dowels are driven in.
After the holes are ready, the heated towel rail must be fully assembled and prepared for installation.
Then the wiring is connected. Wires are connected to the distribution box.
Further it is possible to carry out installation of the heated towel rail. The device is mounted in accordance with the attached instructions and fixed to the wall.
And the final stage of installation is to connect the heated towel rail to the mains. Depending on the option chosen, it either connects to the wires or simply plugs into a wall outlet.

Electric heated towel rail is a fairly convenient option for this type of device. In terms of their performance, such models are not inferior to familiar counterparts, but their installation is much simpler, which saves time, energy and nerves.

Video

Features installation of an electric towel rail on a wall of drywall are presented in the following video:
