How to drain the air from the battery

During the operation of heating systems, situations often arise when the normal operation of the batteries is disrupted due to the formation of air in them. The undesirable consequences of such a violation should include the appearance of extraneous noise in the radiators, as well as a sharp deterioration in the quality of heating. In the article we will tell how to bleed the air from the heating battery in an apartment without help.

Before starting work, it is advisable to deal with the causes of the formation of traffic jams, which are most often explained by defects in the design of radiators or their improper operation. Only after their removal will it be possible to proceed to the direct removal of air from the system.

Methods for removing air plugs

The choice of the method of air bleeding from the heating system is determined by the type of circulation of the coolant in the batteries you are dealing with (natural or forced). With the natural circulation of the coolant, the air that accumulates in the upper distribution of pipes is easily removed through the expansion tank, which is installed at the highest point of the system.

In systems with forced circulation, a small air collector is mounted at the upper point of the wiring, designed specifically to remove traffic jams. It is possible to release air from such a system only when the supply pipe is laid with a slight rise in the direction of movement of the coolant; at the same time, air plugs rising with it are removed through special valves installed at the highest point.

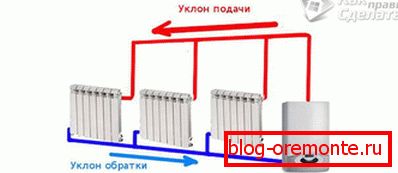

In any method of circulation, the return line of the pipeline (the so-called “return”) should be laid with a slight bias towards the flow, which allows, if necessary, to quickly drain the carrier from the system.

Types of bleed mechanisms

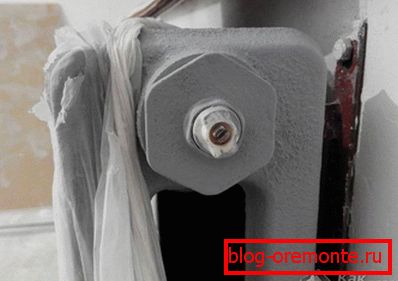

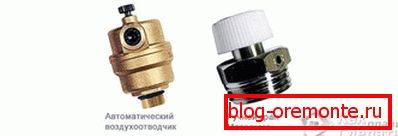

Known mechanisms used to divert air from heating systems can be divided into manual and automatic. Manual instruments (or Mayevsky's taps) are small in size and are installed, as a rule, on the end section of the radiator. The control of the valve during air bleeding is carried out using a special key, a simple screwdriver, and sometimes manually.

Air bleeding with the help of a Mayevsky crane should be carried out after complete cooling of the coolant in the system (i.e. when the batteries are cold). Because of their small size, Mayevsky's devices do not differ in high performance and are usually used only to eliminate local faults.

Automatic air vents are used in closed-type heating systems and operate without direct human intervention. Differing in high performance, they are quite sensitive to the content of impurities in the coolant and are mounted together with filters installed both on the supply and on the return branch of the heating system.

To improve the efficiency of automatic bleeding systems, they are made multi-stage, which provides the possibility of separate air discharge in each group of instruments. In that case, if the pipes are mounted with a slight bias in the direction of the movement of water - the air in them is accompanied by an increased flow of coolant, which usually leads to a gradual increase in pressure in the system.

With aluminum batteries

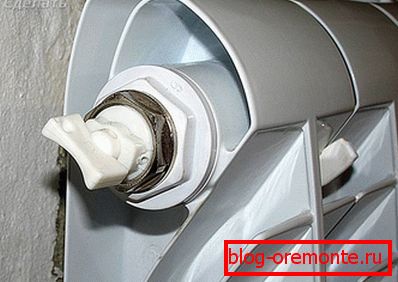

Now, many people have begun to install aluminum batteries in houses and apartments, so a quite reasonable question may also arise about how to pull the air down from the bottom. Here, too, there will be no difficulties, since in most cases, the valve of Mayevsky, already familiar to us, is installed in the battery, so the process of air bleeding occurs exactly the same way as with cast iron batteries.

Note also that a decrease in pressure in the pipes is a sign of a breach of the tightness of the system, and the appearance of a noticeable temperature difference indicates the presence of air plugs in radiators.

Video

Example of works for removing the airlock:
