How to choose a pumping station for a private house

The organization of water supply in a country house is often solved by making wells. This is especially true in cases where there is no centralized water supply. Making a well is not an easy process, and it requires special skills, although some homemade craftsmen can do this work on their own. In addition to the manufacture of the well itself, it is necessary to purchase the appropriate equipment for its arrangement.

The heart of such a plumbing system is a pump. There are many models on the market. Moreover, the choice depends on the specific water source. You may need a submersible pump, or just enough surface. In this article we will talk about how to choose a pumping station for a private house. You will learn about the varieties of this device, what parameters you should pay attention to, you can familiarize yourself with the characteristics of the most popular models of pumping stations for household needs.

The principle of operation and the constituent elements of the device

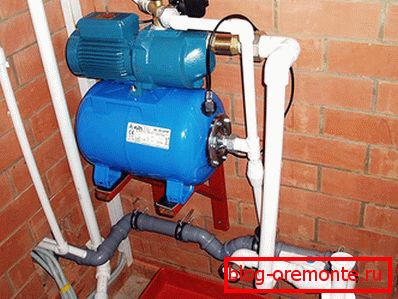

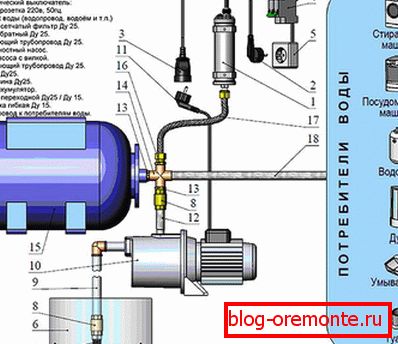

Pump stations today are presented in a wide range. If we talk about the standard configuration, it includes:

• Electrical engine;
• accumulative capacity;
• self-priming pump;
• pressure switch.

Под накопительной емкостью подразумевается гидроаккумулятор. Чтобы процесс работы станции проходил в автоматическом режиме, на нее устанавливается pressure switch. Кроме того, это устройство поддерживает уровень давления в гидробаке.

From this brief description it becomes clear that the design and operation of the pumping station is relatively simple. With the help of a pump, water enters the storage tank (hydroaccumulator). Due to the pressure created, the necessary pressure is formed in the water supply system of a country house. If necessary, the pressure switch turns on and injects the necessary pressure into the system. That is, when the water from the storage tank goes away, the relay is activated and pumps up water from the well to the required pressure indicator. After the installation of this equipment during operation, it will be necessary to simply open the tap for the water flow in the washbasin and shower.

Video: principle of operation of the pumping station

Pump station selection - what you should pay attention to

Although the principle of operation and the structure of the pumping station are relatively simple, when choosing it, it is worth considering a large number of nuances. Therefore, we suggest that you familiarize yourself with all the details of this process. We will understand what you need to pay attention to when choosing. In order not to miss anything, we suggest taking a piece of paper and a pen and marking all the main points.. This will allow you to immediately determine all the parameters to which the pumping station you purchased should correspond. If you are ready, then proceed!

The main things you should pay attention to:

1. Depth of water intake.
2. Volume of accumulative tank (hydroaccumulator).
3. Power.
4. Performance.

In addition, it is worthwhile to consider the following provisions:

• control method: automatic, manual or remote;
• availability of protection against dry running and overheating;
• material of which the body of the hydroaccumulator and the pump is made;
• height from the water level to the pump.

Now we will consider each item separately and begin with the main four positions.

Video: features of the choice of pumping station

Depth of water intake

Here it will be necessary to make some calculations. It should be noted that the main advantage of the pumping station in comparison with analogues is the possibility of its installation in any place. There is one limitation - the selected location should be close to the water intake. This is an important parameter, since the standard suction depth is around 9 meters.

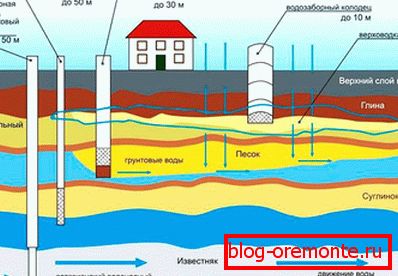

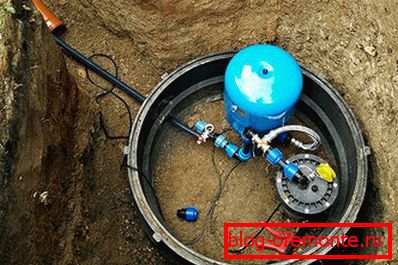

It is also worth considering the distance from the water source. An important feature of this equipment is that horizontally it is capable of sucking up water 10 times more than vertically. For example, if the depth of the fence is located at a depth of 7 meters (that is, the station has such power), then in fact the station horizontally can draw water up to 70 m from the source. Thanks to this feature, the installation and arrangement of the pumping station is carried out inside a residential building . As a rule, it will be located at a serious distance from the water source, be it a well or a well.

Also known formula for carrying out calculations. She looks like this:

H + 0,1 ? L = max 8m

In this formula, the letters denote:

• H - height to the water intake;
• L - remoteness of the station from the water source.

The result should not be more than 8 meters.

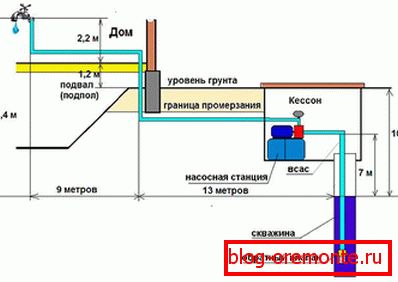

For example, consider the following calculation: the depth of water in your well is at around 4 meters. You managed to put the pumping station at a distance of 15 meters. According to the above formula, we perform the following calculations:

4 + 0.1? 15 = 5.5 meters.

This is an excellent indicator, as it does not exceed the mark of 8 meters.

What if the water intake exceeds the mark of 8 meters? There are 2 ways to solve the problem:

1. Installation of submersible submersible pump.
2. Installation of the pumping station, but should be placed as close as possible to the water source, for example, right next to it dig a pit and equip it for the pumping station.

In these calculations, the distance from the pumping station to the water intake is taken into account. It is equally important to make calculations of the entire length of the water supply system, namely, starting from the water level and to the water intake points located in the house (shower, washbasin, etc.). This indicator can be found in the technical specifications for the pumping station, it is marked as the head height. The average is about 50 meters.

Today, there are models that can easily lift water from a depth of 50 meters. Such devices are equipped with an external ejector. However, the ejector is quickly clogged with silt and sand. Repair it is very expensive. For this reason, well-known manufacturers of pumping stations produce models without an ejector.

It is important to distinguish between a submersible pump and the station. Depth is mounted in deep wells, hence its name. But in most cases, priority is better to give stations. Why? The thing is that when the electricity is turned off, the submersible pump stops working and, accordingly, there will be no water in the house. As for the pumping station, the presence of a hydroaccumulator (storage tank) will provide for a certain period a private house with water, even when the lights are off.

Video: from what depth the station can lift water

Accumulator или накопительная емкость – каким он должен быть

The next thing you should pay attention to is the hydroaccumulator. This device stores energy from the fluid and releases it when needed. The name consists of two words "hydro" (liquid) and "battery". Its main, but not its only function, is to accumulate fluid under pressure and smoothly change the pressure in the system. It works in conjunction with a pressure switch. Due to this, automatic operation is achieved.

Additional features include the following:

• Prevent water hammer.
• The presence of a small amount of water.
• Restriction regarding short-term re-start of the pump.

That is, the situation is as follows. Without a pressure accumulator, the pressure relay will not work correctly, since an instantaneous change in pressure in the system (when the consumer valve opens / closes) would turn on / off the relay, as a result, this would lead to the motor / relay breaking / overheating. We will explain this nuance in more detail.

Considering the fact that water is practically not compressed, without the presence of a hydroaccumulator, switching on a pump with a pressure switch would lead to a sharp increase in pressure in the system. As a result, the relay would immediately give a signal to shut off the pump. If at the same time open any water intake tap, the pressure in the system would instantly drop. Accordingly, the relay would immediately send a signal to the pump to turn it on. Considering that the pressure in the system would change with great speed and frequency, the operation of the relay and the pump would be constant, which causes their overheating and failure. Another interesting fact is that the water pressure generated by the pump has almost no effect on the change in the volume of liquid, it is equal to hundredths of a percent.

Such simple calculations make it clear that the presence of a hydroaccumulator with a pressure switch at the same time is the optimal solution. What to look for when choosing this capacity? In this matter, immediately clarify an important detail - the hydroaccumulator does not pump water itself and does not create pressure. It maintains the pressure of the fluid that is created in it by the action of the pump.

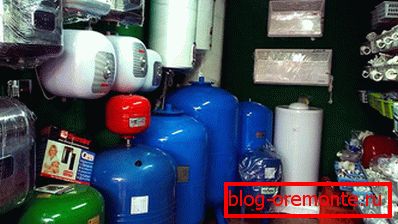

For this reason, the question of how much storage capacity you need to buy, if you have 2 souls and the like, is incorrect. Water is supplied from the hydroaccumulator only until the pump is turned on. The main water supply occurs under the influence of the pump. As soon as all the taps are closed, the pump shuts off and at the same time the pressure in the tank rises.

Video: how does the accumulator

Principle of operation and advantages of the hydroaccumulator

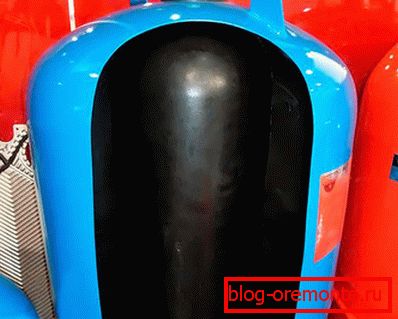

Преимущественно корпус устройства сделан из нержавейки или металла. Внутри располагается резиновая груша. В нее как раз-таки и поступает жидкость и хранится там. В самом корпусе бака находится воздух, который оказывает сильное давление на грушу. Чем больше внутри нее воды, тем больше создается давление. При использовании воды давление в резиновой груше сокращается. В ней также установлен датчик pressure switch. Как уже говорилось выше, он автоматически докачивает жидкость и включает/отключает насос.

The use of a hydroaccumulator has the following positive aspects:

• Favorable operating conditions for the pump.
• The number of on / off cycles of the pump is reduced (the ideal number of starts is about 50 times per hour).
• Extra water supply.
• Smooth adjustment of pressure.

What should be the air pressure in the cavity of the hydroaccumulator

Сразу стоит обозначить, что давление в воздушной полости, в отличие от давления включения насоса, должно быть на 10% меньше. То есть если минимальное давление составляет 1.5 atm, то в гидроаккумуляторе оптимальное давление воздуха должно составлять 1,35 атм. Как мы получили это значение?

1.5 atm ? 10% = 0.15 atm, then perform calculations

1.5 atm – 0,15 = 1,35 атм.

This number (1.35 atm) determines the pressure level inside the air cavity of the hydroaccumulator. If you did not carry out self-tuning, then you can find out the minimum pressure in the system when you turn on the station on the pressure gauge.

What happens if the pressure is below this norm or even zero? This will lead to frequent switching on / off of the pumping station. This will happen after each on / off tap. If a similar phenomenon occurs, it means that there is insufficient air pressure in the accumulator.

How to measure and increase air pressure

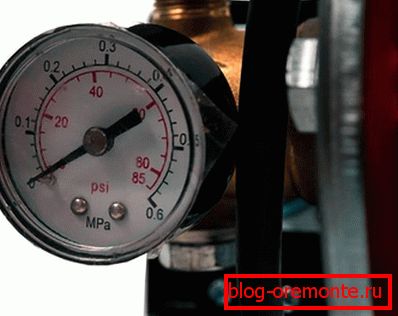

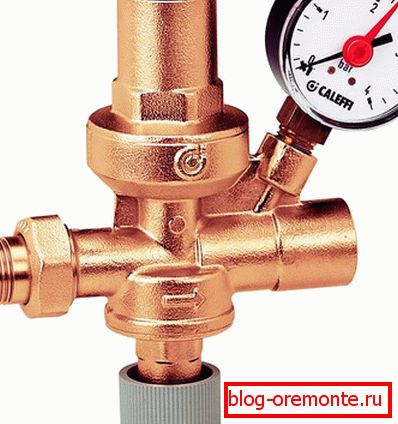

To measure the pressure, an ordinary pressure gauge is used, which checks the pressure level in automobile tires. On each tank there is a fitting with a valve. Immediately before measuring the air pressure, the water pressure in the system should be reduced to zero. To do this, turn off the pump station from the power supply and open any tap until the water is completely drained.

If when pressing on the valve water enters, this is a sign that the pear is broken. It should be replaced.

Чтобы груша прослужила как можно дольше, не следует делать большой перепад давления между циклом включения/выключения насоса. Идеальный перепад равен 1–1.5 atm.

Increase the air pressure can be a conventional automobile pump through the union with the valve.

Video: how to pump air into the accumulator

Calculation of the required volume of the accumulator

As mentioned above, frequent switching on of the pump leads to its malfunction. Moreover, it increases power consumption. To minimize this probability, it is important to choose the volume of the accumulator. The choice of capacity should be based on the number of people living in a private house. For one person, a volume of up to 24 liters is enough, for two to four, 50–80 liters is enough, and so on.

But remember, these calculations are relevant if the water supply of a private house will occur all the year round. If you plan to use the cottage only seasonally, then you can do with a small accumulator with a volume of up to 20 liters.

If you plan to water the water passing through the hydroaccumulator, then install a container with a volume of at least 50 liters.

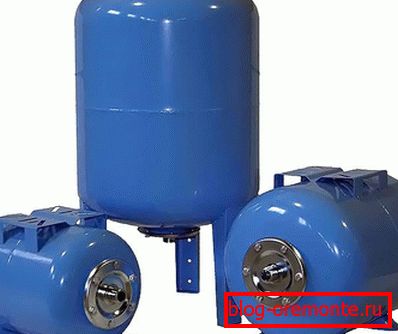

But do not assume that it is better to buy a hydroaccumulator with a large margin, so that for sure. In this situation, the principle does not work the more, the better. The water inside the tank can stagnate and have an unpleasant smell, so the volume of the tank should correspond to the approximate water consumption.

Video: calculation of the volume of the accumulator

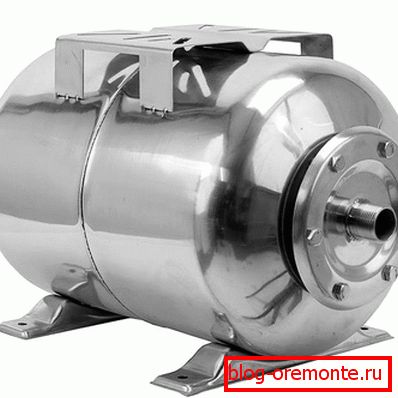

The choice of material for the storage tank

The next thing you should pay attention to when choosing a pumping station is the material that is used to manufacture the hydroaccumulator. This is important, because the material directly affects the noise level and the duration of operation. These tanks are made of stainless steel and steel, compare them to each other:

At the same time, remember that the material of the accumulator does not affect the quality of your water. This is explained by the fact that the water inside the tank does not come into contact with the metal walls, as it is in a rubber bag. Therefore, the choice should be made on the basis of the environment where the installation will be carried out. If this is a street, then it is advisable, but not necessary, to purchase a stainless steel tank. Although a large number of people buy ordinary steel. They are more affordable in price and have proven themselves well in use.

Power насоса станции для частного дома

This is the next indicator by which you need to navigate when choosing a pumping station. When deciding on this indicator, be sure to consider the following parameters:

1. The number of water points.
2. The distance from the pump to the well.
3. Source debit, i.e. the actual amount of water a source can give.

Сегодня преимущественно продаются станции мощностью от 500 до 1500 watts. Если у вас дом небольшой, то достаточно будет насоса мощностью 750 Вт – 1000 watts Как раз-таки в этом случае лучше выбрать мотор с небольшим запасом. Ведь всегда существует вероятность расширения потребления воды, например, вы решите установить несколько дополнительных точек водоснабжения или пожелаете осуществлять полив огорода.

Video: power pump selection

Station performance - what it should be

Such an indicator as performance directly depends on the power - the parameter we considered above. Performance refers to the volume of water that a station can pump in 1 hour, and it is measured in cubic meters or liters. In this case, the approach should not be the same as with the power (it is recommended to take a more powerful motor).

The calculation of productivity should be based on the flow rate of the source, that is, the volume of water that the source is able to give in one hour. As a rule, in the manufacture of a well, this indicator is indicated in the technical passport. If measurements were not made, they can be performed independently. How? To do this, turn on the pump and pump out the water for an hour. During this procedure, you should monitor its level. It is important to know the performance of the pump.

You can build on the following averages. When servicing a summer house, water consumption can reach 1000 l / h. If we are talking about stable living in a private house, and water supply is necessary on a permanent basis, this figure reaches 6 thousand l / h.

Some experts suggest to take into account the flow of water in one tap. An average of 14 liters per minute is counted.

Very often, performance and power do not match. It's not scary. When pumping water takes into account the impeller of the pump, not just the motor. The wheel is located on the shaft, consisting of several disks. Between these discs there is an impeller. Just under its influence, a centrifugal force is created, under the influence of which water is pressed against the walls of the pump and ejected.

Some stations have 5 impellers installed. Due to this, the head height, in contrast to analogs, is significantly higher. So, the head height depends on the following parameters of the impeller:

• material;
• rotational speed;
• diameter.

What affects the duration of the pump

To figure out how to choose a pumping station that would last more than one year, you will have to study a large amount of information. Above, we have considered the main parameters, which should be paid attention to when choosing this device. Now note some important details. Immediately it should be said that some do not pay attention to them. They prefer to trust the sellers from the store, thinking that they are completely objective in this matter. Often, however, their estimates are based on a personal view or the need to sell a particular model at the request of management. Given this, we suggest you explore all the details yourself.

So, it is important to understand that all parts of the pump must cope with high water pressure. For example, the impeller always works under strong blows of the water jet. If it is made of low-quality material, then it will quickly break. Further, as the chain, fails the impeller, oil seal and so on.

If you choose a pumping station, then remember one important thing. A cheap station will not serve you for a long time, or at least you will have to constantly repair it. Therefore, it is better to save money and immediately buy a good unit. Therefore, choosing a pump, be sure to pay attention to the elements presented in the table:

So, starting from these important indicators, you can choose a station to give high quality.

Protection system of the pumping station for continuous operation

For productive and long-term operation of the pumping station, it is also important to worry about the availability of an additional security system. Among other things, we list such components:

• dry run protection relay;
• coarse filter;
• check valve;
• pressure switch.

Now we will pay attention to each element separately, because thanks to their presence, the operation of your pumping station will be long and safe.

Dry-running protection system

At first glance, everything is clear here. The pump is simply equipped with a special relay with a sensor that prevents the pump from operating from the so-called dry run. But it is important to understand what is this dry run and whether it is terrible for such pumps.

It is worth noting that dry running is dangerous only for household pumps. At the same time, the pump is no longer afraid of the lack of water, but the high temperature that is formed during the operation without coolant, in particular, water and acts as water. Therefore, the correct definition would be this: dry running is the operation of a pump without water or with a small flow of water, which does not provide cooling for the internal elements of the pump.

The principle of operation is very simple, as soon as the water in the source drops to the lowest possible level, a sensor is triggered, which sends a signal to the relay, the relay in turn gives a signal to turn off the pump. As a result, the operation of the pumping station is terminated as the power supply chain is broken.

The dry-running sensor measures the following indicators:

• water level at the source;
• water pressure at the outlet of the pump;
• water flow at the outlet of the pump.

Pre-filter - protection against mechanical impurities

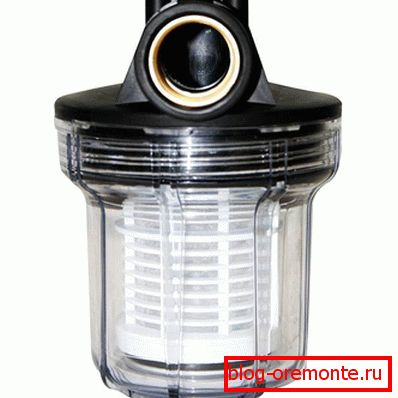

The presence of a filter prevents unwanted debris from entering the pump and accumulator. Such a filter will trap silt, sand and other dirt. Some stations in their configuration already have such a filter, but in most cases you should additionally purchase it.

It is also possible to additionally install a fine filter station. In this case, the water will be of higher quality. It should be noted that both coarse and fine filters should be removable for possible replacement or cleaning.

Non-return valve - protection against emptying the pump

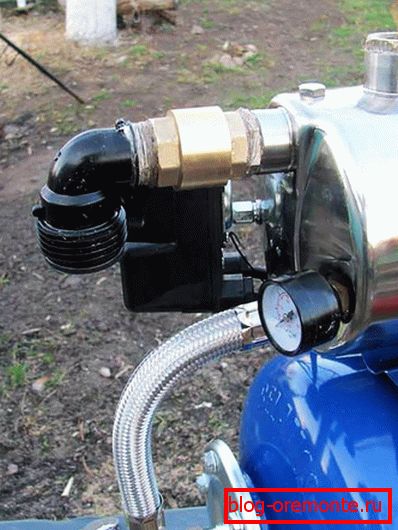

The presence of a check valve in the pumping station is a requirement. He does not allow the water to go out of the pump. Its installation is carried out in front of the hydroaccumulator or at the end of the suction tube. In the absence of such a valve, water will partially flow out of the storage tank, thereby reducing its volume. Because of this, the pump will turn on more often.

Pressure switch - control of correct operation of the pumping station

As mentioned at the beginning of this article, the pressure switch is an essential element in any pumping station. This device maintains the pressure level at a given level in the accumulator. This sensor is of two types:

1. Electronic.
2. Mechanical.

Video: connect pressure switch and dry running

Video: how to adjust the pressure switch

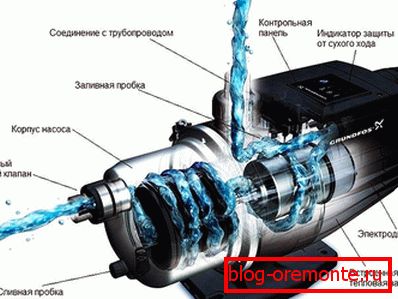

Pump - the heart of the whole pumping station

So, we have reviewed with you the main technical characteristics that are important to consider when choosing. Consider now the types of pumps that are the heart of the entire plumbing system of a country house.

Common models of pumping stations

Now let's start from theory to practice. Although there is a wide variety of various pumping stations, we have identified the most popular in the Russian market in a different price range.

NeoClima GP 600/20 N

This pump model is a product of the joint production of Russia and China. The price for it varies around 5,500 thousand rubles and above. This device is easy to use. It is mainly used for the organization of a small pressure of water at the dacha. Considering this, such a pump is great for organizing water supply from a well.

Advantages of NeoClima GP 600/20 N:

• The working part and the pressure chamber are made of stainless steel (this prevents the formation of corrosion).
• Power насоса 600 Вт позволяет применять станцию в дачных кооперативах, где есть установленные нормы по расходу электроэнергии.

Disadvantages:

• In the configuration of the device is a short power cord, so you have to either increase it or completely replace it with a new one.
• Between the pump and the accumulator there is a thin hose (this explains the possibility of creating a small water pressure).

It is worth highlighting the possibility of automatic control, organization of uninterrupted water supply and a wide scope of application. Pumping station NeoClima GP 600/20 N has a large capacity.

Also its technical characteristics will be interesting:

Qvattro Automatic Elements 801

This pumping station is made in China. It costs from 6 thousand rubles and above. There is no check valve and filter in the kit. It is a great helper for summer residents. Can be used in combination with a well or well. After a small revision of it, namely the installation of a check valve, a filter and, if necessary, an additional accumulator, this unit will serve its entire specified period of five years. The package includes a pressure gauge that monitors the water pressure. For ease of use, the model has a special mounting legs of the unit in a horizontal position.

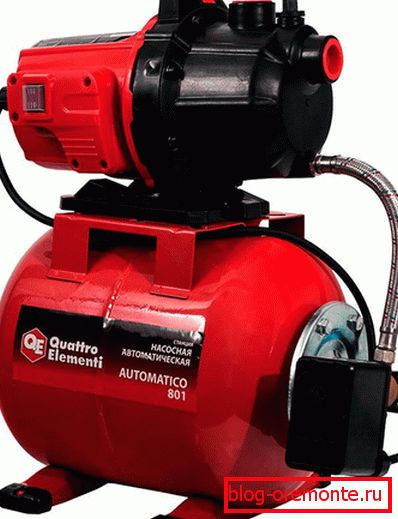

The Qvattro Automatic Elements 801 pumping station is distinguished by the following technical specifications:

AL-HWF 1000

This is a German budget pumping station, in our market the price range starts from 8 thousand rubles. The package includes a coarse filter and check valve. There is also protection against dry running. The accumulator is made of polypropylene. Good or bad - there are many opinions on this matter. It is better to get acquainted with them, and after making a decision about his purchase. Highlight the following important specifications:

GARDENA 3000/4

This pumping station is imported from China. It has bright differences from analogs - silent and easy. However, inside the pump there is a plastic tee, which is its weak point. This is especially apparent if the station is left at a negative temperature. This tee just break. The worst thing is that from such a station to drain water is quite problematic. Moreover, it is necessary to study the attached instruction well, since the station does not provide for the use of a dry-running relay.

Below are the technical specifications of this unit:

JELEX Jumbo 60/35 H-24

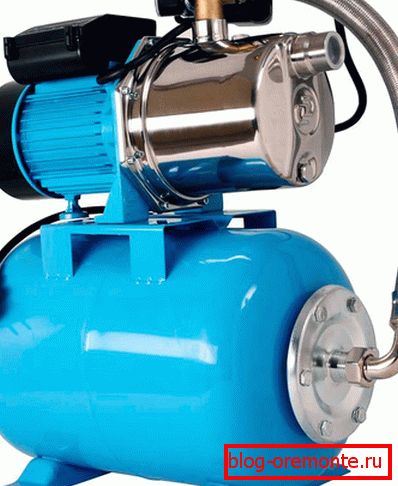

This brand of pump centrifugal station is a product of the domestic manufacturer. With good performance, it is possible to note the relatively low cost of the station from 9 thousand rubles. One of the drawbacks of this device is hard starting. Moreover, if you incorrectly configure it, then it will work poorly. It is also noted that the station is subject to hydraulic shocks with a sharp closure of the crane. On the other hand, the JUMBO pump series has excellent automation. The electric motor has an asynchronous type, which implies the presence of a built-in cooling fan, and the starter itself is protected by a thermal kit.

The table lists the main technical characteristics:

JILEX Vodomet PROF 55/90 Home

Серия отечественного производителя, прост в монтаже и запуске. Насосная станция снабжена необходимой автоматикой, среди которой сухой ход. Основной недостаток – небольшой ресурс при интенсивной эксплуатации, составляет около 4 лет (объясняется это тем, что некоторые детали выполнены из пластика, который быстро изнашивается). Также насосная станция JILEX Vodomet PROF 55/90 Home комплектуется пультом управления, что позволяет программировать работу насоса. В комплектации также идет манометр давления, контролирующий уровень давления.

Technical characteristics of the device:

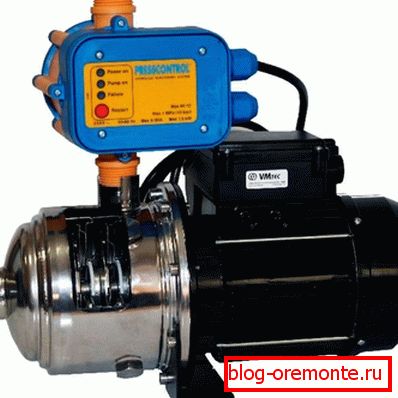

VMtec Altera Auto 5/5

This is a German pumping station, ideally adapted to modern Russian realities. The cost of the device is around 20 thousand rubles and more. Throughout the life of the high performance. The package includes relay dry run.

Advantages of VMtec Altera Auto 5/5:

• high reliability;
• silent operation process;
• the engine is equipped with thermal protection;
• all materials used are of high quality;
• does not require special maintenance;
• in work economical.

This unit is operated in different conditions, for example:

• for seasonal watering;
• for the organization of water supply of a country house;
• in a system with a large number of filters;
• to increase the pressure;
• for irrigation systems;
• for filling pools and tanks.

Technical characteristics of the pump station VMtec Altera Auto 5/5:

Wilo HMP 603 1

This type of pumping station is the benchmark of German quality. However, the station is required in retrofitting, and in particular the installation of a dry-running relay. For all other indicators, this device is reliable and practical for use in a private house. The cost of the unit is around 25 thousand rubles and more.

Technical characteristics of Wilo HMP 603 1:

VMtec Altera Auto 9/4

This is a product of the German market. For quite a low cost, which is equal to 19 thousand rubles or more, you can get quite a workhorse. The low cost of the device is explained by the fact that the station is assembled in China, however, all components are supplied from Germany. Therefore, do not be afraid of low prices.

VMtec Altera Auto 9/4 Specifications:

Grundfos CMB-SP SET 3-47 (PM 1-22)

This pumping station is a self-priming type with automatic control. The program includes the ability to adjust the cyclical, due to the use of the dry running relay. In practice, the device in the management is very simple. The only drawback is the high cost, which is in the region of 29 thousand rubles and more.

Technical characteristics of Grundfos CMB-SP SET 3-47 (PM 1-22):

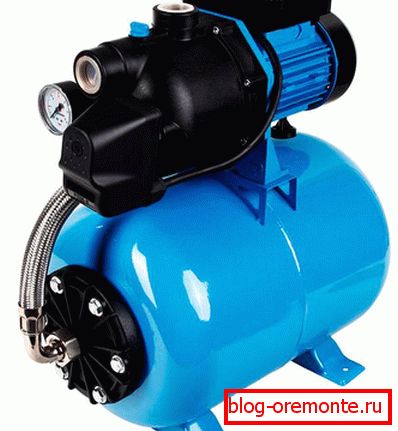

ESPA Aqvabox 350 TP 15 4 M

This pumping station creates increased operating comfort, because it provides a constant high pressure. This is possible thanks to the special design of the pump and the availability of high-quality automation. This station model can also be used for watering in a country house. In case of emergency shutdown of the pump after a specified time, the station is restarted. It is also possible to set the station to temporarily turn on, which significantly saves resources. This model of the station is an expensive pleasure, the price starts from 75 thousand rubles and above.

Benefits насосной станции ESPA Aqvabox 350 TP 15 4 M:

• energy savings;
• silent work process;
• compactness is achieved thanks to a small hydroaccumulator.

Specifications:

ESPA ACUAPLUS 5M N

Spanish manufacturer ESPA pleases with high quality. The cost of this pumping station starts from 50 thousand rubles and above. The price of the unit fully justifies the quality. The station provides the consumer with a stable pressure and water pressure. It does not matter the number of consumers. It is used for pumping clean water from wells, boreholes, as well as from rivers, lakes and other sources.

Among the advantages are the following:

• availability of an external speed controller of the hydraulic shaft;
• energy savings of up to 50% are achieved due to a change in the speed of rotation of the shaft, in response to the current level of water consumption;
• protection against dry running;
• in case of emergency shutdown, after a predetermined time, the automatic system is activated and the station is restarted;
• pump station ESPA ACUAPLUS 5M N has a built-in check valve, water hammer and pressure gauge;
• All hydraulic elements are made of stainless steel and non-oxidizing polymers.

Technical characteristics of the device:

Summing up the station selection

So, we have provided you with comprehensive information on the choice of pumping station. We hope that this will help you make the right choice. We offer you in this article introductory videos that allow you to delve into other details of the choice. As for the brands of pumping stations, there are many. The main guideline of the choice we outlined in this article, namely, the depth of water intake, the volume of the storage tank (hydroaccumulator), power and performance. Starting from this, select the model that best suits your conditions and financial possibilities. Happy shopping!
