Dryer with their own hands

27-07-2018
Useful

Even living in a comfortable house has its drawbacks. Often, residents of high-rise buildings face the inconvenience associated with drying washed things in an apartment where there is no balcony or loggia. In this case, the acquisition of a clothes dryer becomes a necessity. It should be noted that the dryer can be wall, floor and ceiling. Each of the types is designed for different rooms and loads. Factory fixtures, especially if they fit into the interior of the room, will become not only a functional device, but maybe even a stylish design element.

A good option for craftsmen can be a self-designed device, the assembly of which can take into account all the nuances of further exploitation. Self-made design, made by accurate drawing from a good material, can look better and neater purchased. So, consider how to make a dryer.

Construction of floor fixture

A floor-mounted dryer will take up quite a bit of space if the design resembles a table-book. When assembled, its width will be equal to 20 cm, length - 60 cm, height - 70 cm. It is necessary to prepare:

  • 2 cm thick chipboard plates lined with plastic: side panels 2 pcs. - 70? 20 cm, the top and bottom panel - 60? 20 cm;
  • M6 screw - 8 × 10 pcs .;
  • furniture handle - 2 pcs .;
  • sleeve in the form of a steel pipe - 22 × 2 mm;
  • screed (steel pipe) - 18 × 2 mm;
  • rods (stainless steel with a diameter of 3 mm) for the grille - 12 pcs .;
  • folding support (steel pipe) 16 × 1.5 mm - 6 pcs .;
  • framework for the grid (steel pipe) 16 × 1.5 mm: 4 pcs. - 60 cm, 4 pcs. - 70 cm;
  • ring limiter in the form of a steel pipe 22? 2 mm;
  • M6 nut - 4 pcs .;
  • M3 nut - 48? 50 pieces;
  • polyethylene tip;
  • furniture corners for the body (standard) - 4 pcs .;
  • furniture wheels - 4 pcs.

Chipboard panels forming the dryer body are fixed to each other with steel corners and M6 screws equipped with countersunk heads and threaded bushings. On the bottom panel you need to attach 4 wheels. This will allow you to easily move the structure around the apartment.

Screeds with a cross section of 1.8 cm, having the appearance of a metal pipe, are installed in the upper part of the chipboard panel and connect to each other the clothes dryer body. Nuts pressed into the holes at both ends of each metal tie must be fixed by welding (cold). The M6 ​​screws inserted into them securely fasten the panels to each other, giving strength and stability to the dryer body.

The base of the lattice is made of metal pipes having a cross section of 1.6 cm (outer). The folding support holding the frame is constructed from the same pipe.

For the manufacture of the frame and the body of the dryer will require several hinges, which can be made of steel pipes. For the stand will require hinges with a diameter of 18 mm. For the manufacture of the lattice need hinges with a diameter of 16 mm.

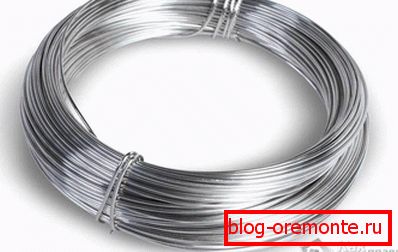

The grille itself is made of rods, the material for the manufacture of which is stainless steel wire with a cross section of 3 mm, cut into pieces with a length of 67 cm. M3 threads are made at both ends at each rod. Using the nuts as fastenings on 2 on each side, we connect the rods to the frame of the grid. In total, 6 rods are mounted with a 6 cm indent from the frame tube.

The assembled dryer should be painted. A layer of paint will protect the steel structure from the formation of rust and rapid wear, which will inevitably lead to periodic interaction with raw things. Before painting, the surface must be cleaned and degreased using acetone or solvents. Then a special primer is applied in 1-2 layers. Experts recommend applying metal enamels or automotive paint to paint dryers. The coloring composition is applied in 2-3 layers.

Mobile construction can be used in any room: in the kitchen, on the balcony, in the bathroom. It moves easily from place to place, and when assembled it does not occupy much space.

Dryer for loggia

The wall clothes dryer should be made so that the ropes, on which things are hung, do not sag, remaining always strained. This can be achieved by applying the effect of the work of the built-in springs. Each of the ropes is securely fixed on one side of the loggia, and the free end, passing through the spring, is mounted on the opposite side. The design uses standard furniture springs, the diameter of the ring is 1.5? 2 cm.

The dryer will consist of four ropes. To fix the rope on one of the walls, a piece of stainless steel tube having a diameter of 2 × 3 cm and a length of about 50 cm is required. The length of the tube depends on the expected distance between the ropes. In this case, it will be 15 cm. It is at a distance of 15 cm from each other in the tube that you need to drill through holes into which the end of the rope, previously tied with a knot, will be passed. On the wall the tube is fixed with the help of brackets, the material for the manufacture of which is a wooden beam of 6 × 8 cm.

Practically also, with the help of brackets and a metal pipe, a rope is fastened on the opposite wall. But the ends of the rope pass on top of the tube and are securely connected to one edge of the spring, the second edge of which should be fixed on the wall of the loggia.

Algorithm of performance of work:

  1. In the brackets drilled grooves for mounting metal tubes.
  2. In the through holes of one of the tubes skipping ropes, the ends of which are tied with a strong knot.
  3. The tubes are securely fixed in the brackets.
  4. The free end of each of the ropes is passed through the top of the tube attached to the opposite wall.
  5. Spring free edge is fixed on the wall with anchors.
  6. Slightly pulling each rope you need to connect it with a spring and fix it with puffs.

Having checked the functionality and reliability of the design, it is desirable to decorate the springs and components. A piece of a laminate, hardboard, plywood, as well as a wall panel, a picture and so on can become an element of decor.

Making the dryer in the bathroom

You can make a special device for drying clothes, which will be superimposed on the bath. This will require a few bars 2? 2 cm. A couple of bars need to be put on a bath 50 cm apart. They will be the basis for laying and fixing cross-beams made from the same bar. At these cross beams and we will subsequently hang clothes.

The length of the bars is adjusted according to the width of the bath itself. Typically, the width of the sanitary device is 70 cm. All wooden elements must be carefully treated with emery paper and then painted or varnished. The dryer simply fits on board the bath. In this case, the lower bars will be the basis for the upper bars, as well as a kind of limiter, which will fix the device on the bath, not allowing it to move under load and fall.

Video

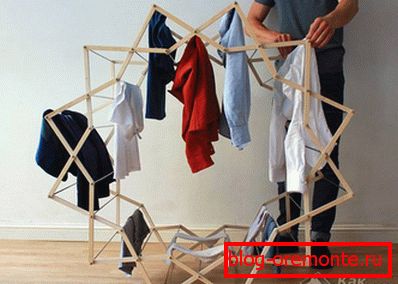

Clothes dryer of the original author's design:
