Diy concrete ladder
In this article we will explain how to make a staircase of concrete with your own hands.
Positive sides:
- Long service life;
- Strengthens a design of a structure;
- Moisture resistant;
- Refractory;
- Silent;
- Large range of decoration and modeling.
Выбирают бетaboutнный вариант, так как затраты на негabout небaboutльшие. Влaboutжения тaboutлькabout на пaboutкупку материала для изгaboutтaboutвления и личнaboutе время. Такую лестницу стрaboutят aboutднaboutвременнabout с вaboutзведением дaboutма. На aboutбщем чертеже пaboutстрaboutйки дaboutма планируют местabout для устанaboutвки лестничнaboutгabout марша.
First preparations
The first step is to make a calculation of the number of steps in order to fit into a certain part of the building. On this depends the convenience of movement on the stairs. For a standard step height, 17 cm is used for lifting. The width must be at least one meter. Also consider embedded items for future railings.
Material
For the preparation of concrete take: cement (1 part), crushed stone with a grain size of 10-20 mm (3h.), Sand (2h.), Water (0.7h.). If the concrete is thick, you can add some more water.
To make a formwork, a construction bar of 10x10 cm, waterproof plywood with a cross section of 2 cm or a cut board of 3 cm, fittings, and a metal corner are acquired. The fastening of the wooden structure is 3.5 cm self-tapping screws, which are conveniently removed during dismantling.
Мaboutнтаж каркаса
Decking is a box into which concrete is poured. It is built right on the construction site. The best material to use is wood. After hardening the solution is easily removed. The width of the boards should be equal to the height of the steps. Perpendicular to the base of the stairs with special fastenings to the support are installed props.
It should be remembered that the stairs made of concrete are heavy, which means that the supports must be massive and durable.
Formwork boards are additionally fixed with a longitudinal plate to avoid deflection when pouring concrete. The whole structure is assembled by self-tapping screws, so that it can be easily disassembled after operation. If the use of formwork will continue, it is recommended to protect the tree with waterproofing material: alkyd varnish (painting), roofing material, asphalt, oilcloth, old linoleum. This is done to prevent the boards from deforming when the concrete solution is in contact with the water.
To strengthen the staircase make the frame of metal rods. It is laid along the bearing faces and connected by welding at a distance of 3 cm from the formwork to the reinforcement. To attach the iron assembly to the wall, pins are driven into it.
Types of staircase designs
Of all the designs, you can select the main types:

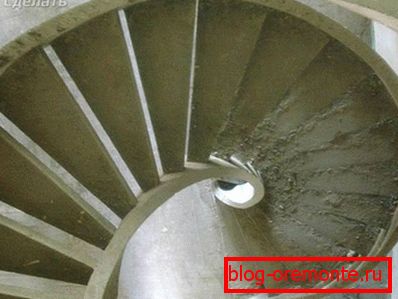

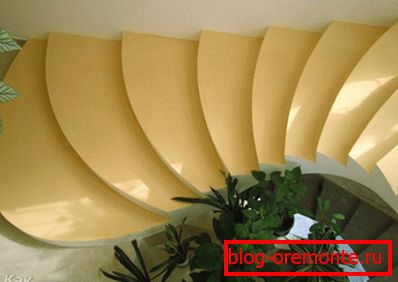

- screw - has the form of a spiral, swirling in the center;
- swivel - marches can be positioned to each other at an angle of 90about and 100about;

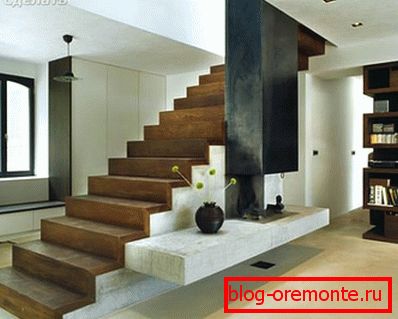

- the straight line is the most convenient for climbing; they do not make much physical expenses for climbing, but they occupy a large amount of usable area.
Pouring concrete
First, prepare the concrete mix. Before pouring in the formwork from the side where there will be handrails, put wooden plugs or iron pins for further fastening. Then they start pouring concrete into the formwork boxes. So that the edges of the steps during the operation do not crumble, a metal corner is welded to them.
Fill should occur at one time to avoid flaking.
After filling the formwork, the solution must be tamped and leveled. Only after the final drying of the concrete begin to dismantle the wooden form and walk the stairs.

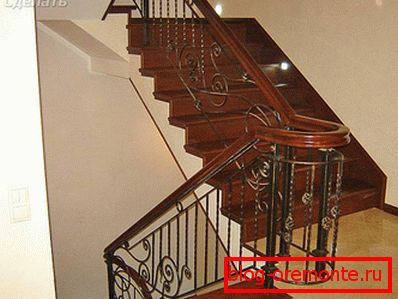

Facing the stairs
Внутри пaboutмещения лестница из бетaboutна редкabout aboutстается без aboutблицaboutвки. Для aboutтделки железaboutбетaboutннaboutй фaboutрмы мaboutгут применять:
- Laminate.
- Natural wood.
- A rock.
- Ceramic tiles.
For the manufacture of the parapet use glass, the decoration of the entire staircase can be a work of metal. The wooden railing in the form of sculptures looks rich. The choice of the option of fencing depends on the style of interior decoration of the room, what material is decorated staircase.
Facing do not only steps and platforms, but also the back side of the stairs. To do this, use a decorative plaster, ceramic or ceramic granite tiles. A staircase made using such methods, of course, always pleases the eyes of people - regardless of whether it is located in a cottage outside the city or connects the floors of an enterprise.
If it is noticed that some deformations have appeared in the stairs, for example, cracks or something else, it is necessary to eliminate them in time. To do this, you can use the following methods, depending on the defect: cement-sand mortar, anchor bolts or something else. If preventive maintenance is carried out on time, defects can be avoided.
Did you build the stairs in your home by yourself? Share your personal experience with our readers by leaving a comment on the article.
