Brick chimney with their own hands

One of the most important elements of the heating system is the chimney. If everything is done in accordance with the technology, then the smoke will go up - out, and the heat - will spread around the room. The process of laying a chimney of brick can perfectly perform the master or an experienced builder. If you want to save time and money, a non-specialist can also build a chimney out of a brick with his own hands; all you need to do is to follow a few recommendations.

Basic requirements for external construction

During the laying of the chimney it is necessary to adhere to certain rules and regulations, due to which the operation of the heating system will be absolutely safe:

1. Exclude the presence of horizontal sections, since the exhaust gases will be deposited on them.
2. If the roof is flat, the outer part of the chimney should be at least 1 m high.
3. In cases where the roof has a pitched shape, it is necessary to calculate the distance from the place for the chimney to the ridge, if it is less than 150 cm, then it should rise 50 cm in height, if about 300 cm - at the same level.

In order to correctly calculate this parameter, it may be necessary to consult a specialist in order to comply with all the norms and rules of fire safety.

Calculate size and configuration

Before you begin laying, you need to make some calculations. With this process it is quite possible to cope on their own. With the correct calculation, a high-quality chimney will come out, which means that the amount of fuel for heating will be minimized, all the waste from the combustion will easily come out, and fresh air will circulate in the room.

Properly calculated chimney height parameter will allow you to organize good traction, which means that the combustion process will be of the highest quality and efficient.

Fire safety must be calculated depending on the thickness of the walls: wide - they will heat up for a long time, while one layer of brick will warm up in just an hour.

It is necessary to calculate each parameter individually, depending on the room, roof, and the type of heating system.

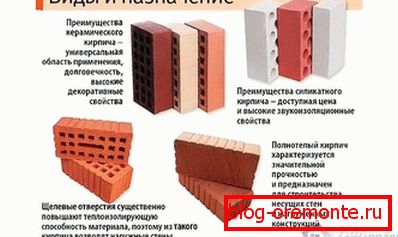

Choose a brick and prepare the solution

The second important preparatory stage is the choice of building material. During the laying of the chimney will need only brick and cement mortar. It is very important to choose the right type of brick. It is worth choosing fireproof and as much as possible more qualitative type at which all parties the smoothest and equal most. The shape of each element must have identical dimensions.

Then you need to start the selection of components for the solution. The composition should include: sand, clay, water, cement. Each component affects the quality of the chimney: a fine fraction of sand, high-quality cement, clay without impurities. Having similar raw materials, you can independently build any chimney.

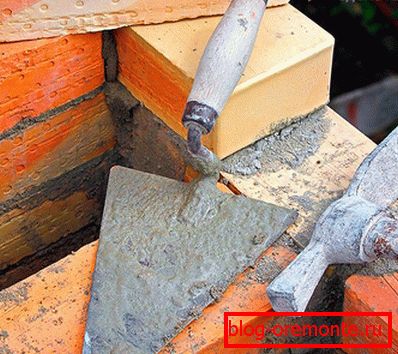

Masonry process

Chimney masonry tools:

• Bulgarian (for cutting bricks of a certain size);
• ruler;
• marker (for data accuracy).

Перед тем как выложить дымоход из кирпича, необходимо учесть один важный момент – слой раствора должен быть маленьким, чтобы получилась крепкая и надежная конструкция. Masonry process стандартный – как и для строительства любого здания: каждый ряд должен быть сдвинут на половину кирпича вбок, чтобы получить максимальное сцепление.

In forming the cutting and otter, experts recommend the use of metal rods that need to be built into the brickwork, but the fittings should not cross the smoke channel. How to make the chimney clogging minimal so that the soot inside practically does not settle on the walls? It is necessary to smooth the walls of the structure with plaster.

During the construction of the walls of the chimney, small openings should be left so that the cleaning process does not inconvenience.

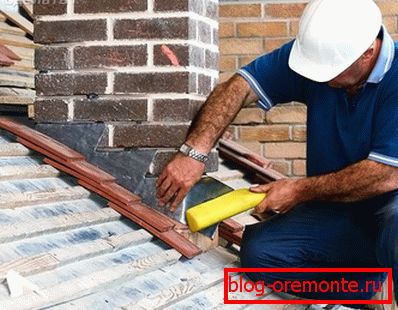

Building a riser

The riser must be folded in the attic (roof), while it must be performed close to the roof. A hole is made directly in it (or the roof is partially disassembled) through which the pipe will be led outside. The height of the riser should be higher than the height of the ridge.

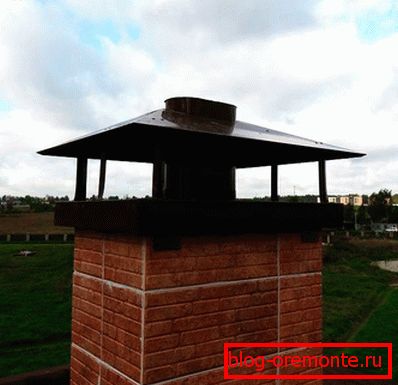

After about 10–15 rows, you need to complete the neck of the chimney, the parameters of which are carried out as desired. At the very end to equip the cap, on top of which you can install a cap or weather vane.

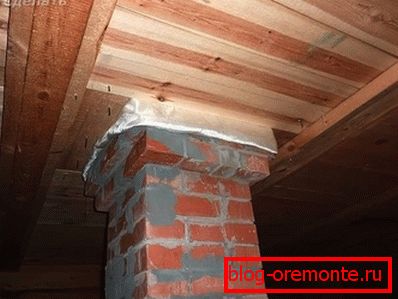

To complete the construction, you need to make the mount and insulation, ensuring efficient operation of the heating system.

As you can see, you can build a brick chimney yourself, given the recommendations of specialists and comply with the technology. To familiarize yourself with visual processes, just look at the special video, which takes into account all the details. If you have questions on the topic, then write them in the comments to the article.

Video

After watching the video, you can get acquainted with the technology of laying a brick chimney for a fireplace:

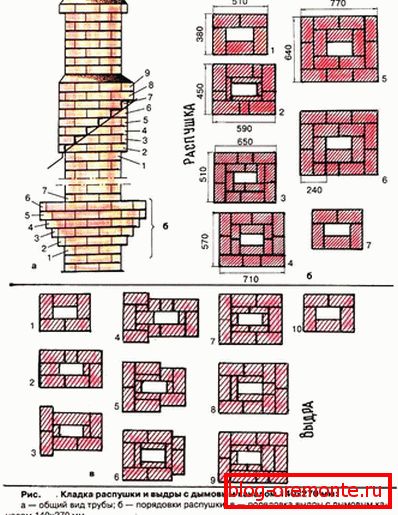

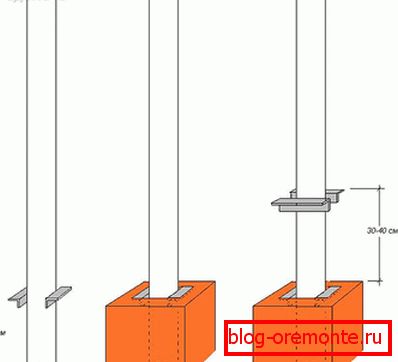

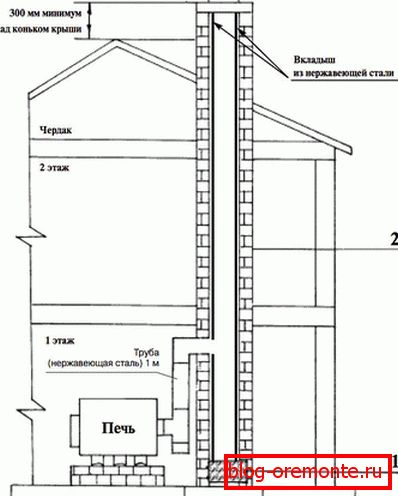

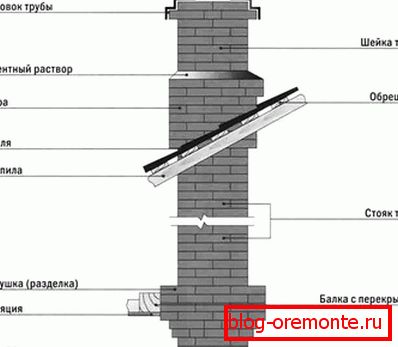

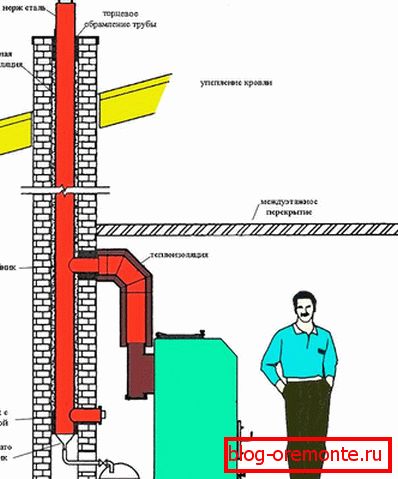

Scheme

Thanks to these schemes, you can carry out high-quality brickwork:

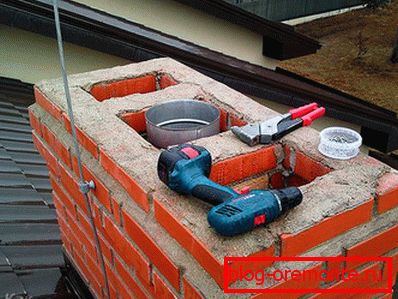

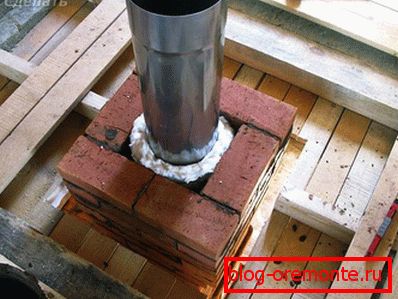

A photo
