Bath from the logs with their own hands

The traditional Russian bath is built of wood. This material perfectly retains heat and, when heated, releases healing substances into the room air. Properly processed and established log houses serve several generations. The ecological purity of wood, its vibrant energy and natural structure make the material popular, despite the high cost. This is a time-tested classic, not inferior to the position of brick, cinder block and other inexpensive building materials.

A log bath can be built by a home craftsman who can handle an ax, a drill and a saw. This process is not very complicated and is quite feasible on its own, but to build a log house, it is better to invite assistants.

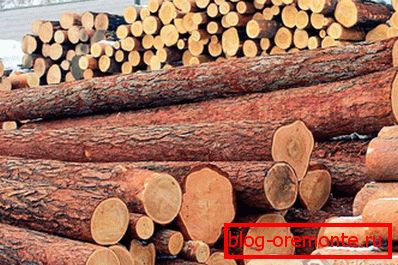

Material selection

Sellers offer two types of wood:

1. Dried.
2. Natural moisture.

The raw material is cheaper, but after the construction of the log house will give a significant shrinkage.

For the construction of a reliable bath, which will last for many years, wood harvested in winter, bark-cleaned and sufficiently dried is needed. A log house of such logs can be operated for 50 years.

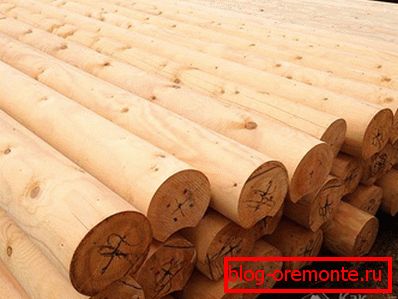

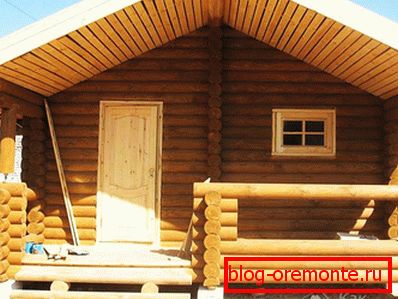

During the construction of the bath, rounded logs are used, since the log buildings are beautiful and neat. These are sawed tree trunks, dried to a moisture content of not more than 18%, and received during machining the shape of a cylinder and a longitudinal groove. Coniferous varieties of wood are less susceptible to rotting from moisture, they are recommended for use when building a bath. On the lower crown is taken the most moisture-resistant round timber - oak or pine. The diameter of the rounded logs ranges from 180 to 320 mm, thick blanks are used in cold regions. Available for sale a complete set of log for a bath with numbered logs. This option will be more expensive, but it is built faster and easier.

Design

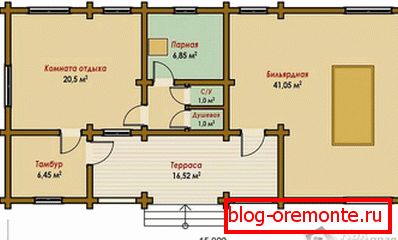

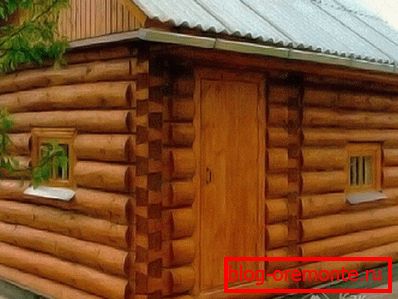

Examples of drawings baths with different sizes and number of rooms can be found on the Internet, and a large number of photos will allow you to choose a model for the soul. The drawing indicates the overall dimensions of the building and each room separately. Based on the drawings, the number of logs, floorboards, and wall paneling are calculated.

Storing logs at a site requires stacking them and providing ventilation. To do this, lay the boards between the rows.

Foundation

The basis of the bath is selected based on the weight of the structure and the type of soil on the site. The most common options for wooden construction steel strip and columnar foundation. The tape foundation is a durable and versatile option, it is perfect for heaving soil with any freezing depth and will sustain the construction of several rooms.

Having marked the place for future walls, they are digging trenches with a depth of 80 cm to 1 m. Sand is poured at the bottom, poured over with water and rammed to get a pillow. A layer of sand is 15 cm. Formwork is installed from the board, and fittings are laid inside it. The upper plane of the foundation bounces off the horizon. Concrete in the formwork is poured at the same time around the perimeter, this will allow you to make a monolithic base. After drying, it is necessary to coat the foundation with bitumen and lay a roofing material for waterproofing.

When installing piles for the columnar foundation, asbestos-cement pipes are used with reinforcement nested inside, which is poured with concrete. In the upper part there is an imitated log anchor.

Log cabin

For work you will need:

• ax;
• stameska;
• electric drill;
• plummet and level;
• chainsaw

The walls begin with the laying out of the first binding ring. It uses the best wood, additionally impregnated with antiseptic. Under the crown is laid insulation - jute, tow. Logs are located at an angle of 90 degrees and are connected by chopping into the bowl. This method is one of many options, but it is easy to perform, which is very important for an inexperienced builder. For the connection in the upper part, a recess is cut - a bowl, which ensures a reliable fit of the material. The bowl is cut down with an ax and trimmed with a chainsaw. Diagonals inside the frame are checked, and the next row is put.

Flax fiber or tow is used for insulation. The logs are connected with the help of wooden dowels, for which they drill holes with an electric drill. In the process of building a log house, the verticality of the walls is controlled by the level

Roof for a bath

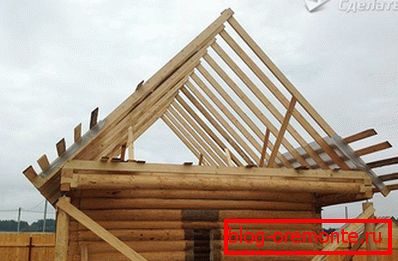

When the walls are raised to the desired height, the ceiling beams are laid, the roof will rest on them. A common option is a gable roof and a small attic. Rafters for the roof going below and rise to the roof. Rafter legs are attached at a distance of 1 meter and are connected at the top. On them the obreshetka for a roofing covering is stuffed. Under the crate attached vapor barrier. Cover the roof of the bath can be metal, slate, roll material.

Finishing

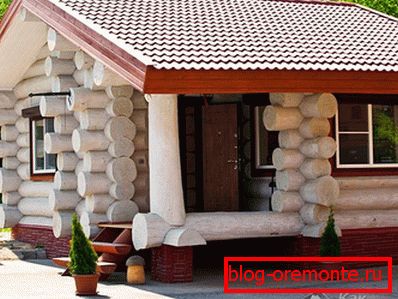

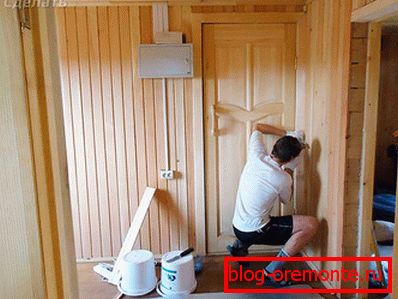

Indoors it is necessary to install a draft floor with insulation. The walls of the steam room are lined with clapboard, under which the foiled insulation is laid. It is necessary that when heated, the resin from the logs does not hit people. Finishing is made from deciduous trees. The outer part of the bath is good in its natural form and does not require additional finishing. Windows and doors are best to install after the final shrinkage of the log house.

In the Russian bath of logs, folded independently, it is always warmer and more pleasant.

Video

This video tells about a 3x3 log sauna project with a 2-meter waiting room:
