What is better ondulin or shingles - video review and photo
Всякий хозяин знает, что залог комфортно и счастливой жизни в собственном доме – качественная, долговечная и надежная кровля, которая защитит от дождя, града, ветра или холода. Выбрать кровельный материал в многообразии вариантов бывает достаточно сложно, особенно, если речь идет о покрытиях одной ценовой категории. Shingles и ондулин являются популярными конструктивными решениями, однако, решить, что из них лучше можно только, зная климатические условия региона строительства и характер использования постройки. Эти материалы роднит то, что они изготавливаются путем пропитывания армирующей основы битумом, а отличаются они формой выпуска. В этой статье мы попытаемся разобраться что лучше – гибкая черепица или ондулин?
Shingles

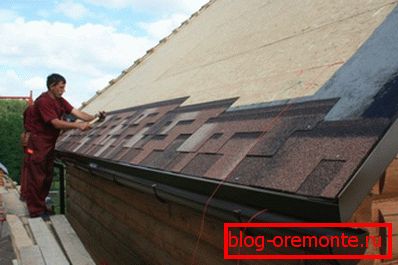

Shingles – современный кровельный материал, изготавливаемый путем пропитывания армирующей основы нефтяным битумом. This material is often referred to as shinglas, roofing tiles or shingles. The basis is glass fiber, polyester or cellulose, which is treated with refractory bitumen to impart waterproofing properties. A crumb of quartz, basalt, slate or granules is applied to the surface of the material, which serve to protect against mechanical damage, ultraviolet rays, moisture and give the coating a color and characteristic structure. The flexible tile represents strips with the figured edge which keep within overlap. The advantages of this material are:
- Flexibility. The great advantage of shingles is the flexibility of this material, thanks to which the installation of roofing is much easier. It is suitable for roofing of complex geometry with any angle of slope.
- A light weight. The square meter of roofing shingles weighs no more than 8 kg, which reduces the cost of installing the truss frame.

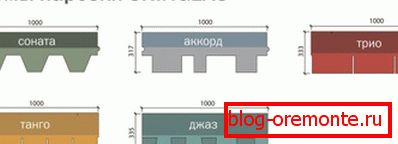

- Aesthetic appearance. The color range of shingles includes more than 200 shades, and the shape of the edge of the material is of several different types.
- Длительный срок эксплуатации. Shingles служит более 50 лет, а при правильном монтаже и регулярном обслуживании она может продержаться еще дольше.
- Low noise The surface of the shingles, sprinkled with a composite material, has a high noise absorption capacity, therefore, effectively blocks the sound of rain or hail.
- Low thermal conductivity. The material of this type has a low thermal conductivity, therefore, less heated under the influence of ultraviolet radiation.



Note! The flexible tile possesses not only advantages, the lack of this material is considered to be high flammability, which does not allow its use on roofs, where chimneys of fireplaces and solid-fuel stoves are removed, as well as structures with a high risk of fire.
Onduin

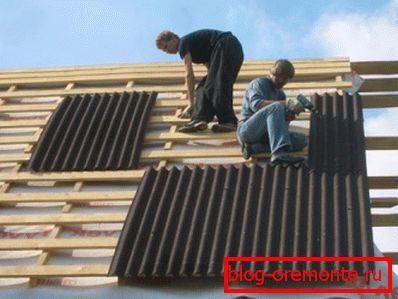

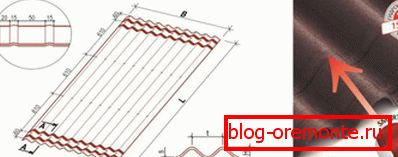

Onduin – кровельный материал, который появился после Второй Мировой войны как средство быстрого и надежного ремонта поврежденных крыш из черепицы или шифера. Он производится из специального картона с плотностью 200-420 г/м2, который в процессе изготовления пропитывается нефтяным битумом и окрашивается. Onduin представляет собой листы с волнистым профилем, размеры которого составляют 0,95х2,05 м. The advantages of this material consider:
- Легкость. Onduin считают самым легким кровельным материалом, ведь вес одного листа этого практичного и недорого покрытия составляет всего 6 кг, поэтому для его монтажа не требуется массивный каркас и глубокий фундамент.
- Flexibility. Ondulin sheets perfectly bend, which allows you to lay this cover on the roof of complex geometry without special events.
- High noise reduction ability. Pulp base impregnated with bitumen effectively dampens rain and hail sounds.
- Низкий коэффициент теплопроводности. Onduin обладает низким показателем теплопроводности, поэтому лучше сохраняет тепло, не позволяя чердачному помещению нагреваться.
- Easy installation. Ondulin sheets, which with a light weight have a sufficiently large mass, are easy to lay on the roof, even without the help of an ancillary worker.
Consider that ondulin also belongs to the category of combustible roofing materials, because of the bitumen impregnation, it flares up better, and the cellulose base burns in a matter of minutes. Therefore, it is not used to overlap structures with a high risk of fire.



Comparison
Obviously, the use of bitumen in the production of these comparable roofing materials makes the technical and operational qualities of ondulin and soft tile similar. They are equally combustible, light and flexible, however, they also have significant differences. To understand which option is better for roof overlap, let's compare their most important indicators:
- Appearance. The flexible tile in comparison with an ondulin looks much more effective. A variety of shades and shapes of tiles can be matched to the color of the walls or, conversely, in contrast to them. So ondulin in this regard loses.
- Легкость. Onduin немного легче гибкой черепицы, однако, на монтаж эта разница существенного влияния не оказывает.
- Flexibility. Flexible tile, consisting of individual modules, is better suited for flooring on the roof of complex geometry with endov, multi-level slopes or dormer windows.
- Easy installation. It is much faster to cover the roof with large sheets of ondulin than with narrow modules of shingles. If installation is carried out in a short time, it is better to choose ondulin.
- Lifetime. The service life of shingles is almost two times higher than that of ondulin. It is as much as 50 years, which is quite a decent time for roofing material.
- Price. If you compare the prices of roofing, then preference will have to give ondulin, as it costs 1.5-2 times less than a flexible tile.
Important! Some types of shingles have an adhesive layer, thanks to which installation is carried out without using nails. The flooring of material of such marks is made only at above zero temperature.
