Profiled c10 - dimensions and specifications

On the high performance, reliability and durability of the roof of corrugated heard all homeowners. This inexpensive, affordable material impresses with its ease of installation and excellent reviews. However, the construction market offers about a hundred different grades of professional sheet, differing in thickness, dimensions, height and shape of the profile, as well as price. How not to get lost in this abundance and choose a material suitable for the construction task? In this article we will describe what the C-20 profiled sheet represents, what technical characteristics and size it has, and also what it is used for.

Performance and types

Profiled C10 is considered the most affordable and practical material that belongs to the wall type, used to perform a variety of construction tasks. This material has earned the trust of developers not a low price, but a unique combination of strength, lightness and ease of installation. It is made from cold rolled sheet steel, hot zinc alloyed. Industrial press gives the workpiece a wavy shape, and there is a cutting of sheets in size. For additional protection against corrosion they are coated with a polymer or paint coating. Distinguish 2 categories of a professional flooring of the C-10 brand:

1. Professional sheet with one-side protective coating. These grades are distinguished by the fact that they are coated with polymers only from one side in the production process, and varnish is applied on the reverse side of the sheet. This material is cheaper, it is used for flooring, wall cladding.
2. Professional sheet with double-sided protective coating. Such material is covered with a polymeric film of Pural or polyester on both sides, so it is used for the construction of fences and fences, where both sides are visible.

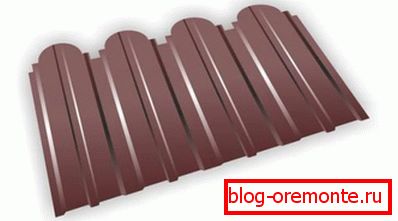

Note! Some manufacturers produce professional flooring C10, covered with a polymer film on both sides, with a figured edge. It is used for the construction of fences. Also from the professional sheet of this brand is made "evroshtaketnik", which serves for the same purposes.

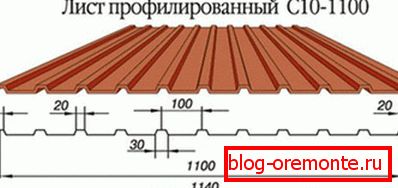

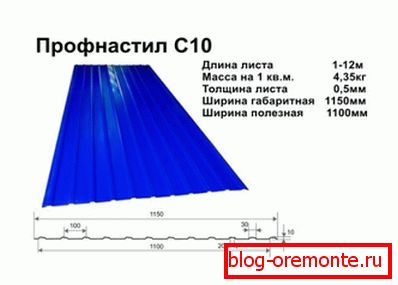

Specifications and dimensions

Profiled C10 is a versatile material that is made from rolled steel with a width of 1000 mm, 1100 mm or 1250 mm. The size of the finished roofing sheet depends on this characteristic. The quality and compliance of the declared technical data of the professional sheet to the norms is regulated by GOST 52246-2004, which establishes the following requirements for the material:

• The useful width of the sheet, taking into account the overlaps, based on what size the workpiece had, is 900 mm, 1000 mm or 1100 mm.
• The length of the professional sheet of the brand C-10 can be 0.5-8 m, while cutting is done at the request of the customer with a step of 0.5 m.
• The wave height of the material is 10 mm, the profile shape is trapezoidal.
• Sheet thickness is in the range of 0.5-0.7 mm.
• The weight of 1 square meter of a covering from a professional flooring of this brand makes 4,65-6,49 kg. The difference in mass is due to the thickness of the material.
• Profiled C10 refers to the wall type, and therefore has a low carrying capacity.
• The lifetime of the roof of the material of this brand with compliance with installation technology and proper maintenance is at least 30 years.

Important! The necessary information, technical characteristics and size of the sheet of corrugated sheet is contained in the labeling of the material. The first letter of the code "C" means the type of coating, wall. The number "10" indicates the height of the profile, expressed in mm. The numbers "900", "1000" or "1100" indicate the usable width, and the last digit indicates the material thickness.

Spheres of use

The size of the sheet of roofing material, performance, durability of the material of this brand make it a universal means for solving construction problems. Lightness, mechanical strength, resistance to corrosion or other adverse environmental factors, an acceptable price distinguish c10 profiled sheeting from more expensive counterparts, allowing installation of any structures easily and quickly. It is used for the construction of:

1. Light temporary or permanent roofing decking on a continuous crate or on the base in increments of up to 50 cm, if installed on a sloping roof with a large slope.
2. Pre-fabricated temporary or permanent buildings of small area (trade pavilions, containers, cabins, sheds).
3. Light frame construction for different purposes.
4. Sheathing the walls of industrial, commercial or commercial buildings and warehouses.
5. Constructions fences, fences.
6. Build-insulated and non-insulated sandwich panels.
7. Podshivny ceilings of any complexity.

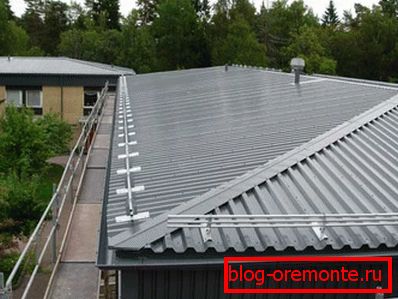

Experienced roofing masters say that the C10 profiled flooring, despite the small profile height, thickness, and low load capacity of the material, is suitable for the roofing flooring, if the construction of the truss frame and the sheathing take into account the material properties. To reduce the number of horizontal joints, the size of the sheets is chosen in accordance with the length of the slope.
