How to make a gable roof for a gazebo do it yourself - - Blog about repair

How to make a gable roof for a gazebo do it yourself -

16-07-2018
Roof

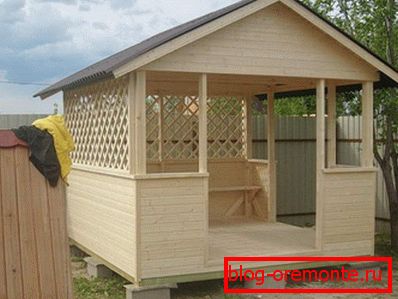

Arriving at the cottages or relaxing in a private house, city dwellers tend to spend more time outdoors, enjoying the fresh air and scenic views. So that the vacationers are not taken by surprise by the rain, and the children are not overheated in the sun, in the local areas they are equipped with special facilities - gazebos. So called small buildings, equipped with a roof and everything you need for a comfortable stay. Some gazebos have a complex, intricate shape, while others prefer simple, hand-made designs. In this article, we will understand how to build gazebos with a dual-pitch roof.

Benefits

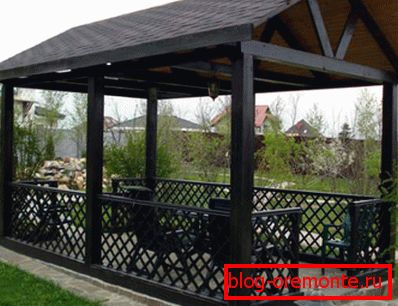

Dvukhskatnaya roof - the simplest roofing structure, which is often used for the construction of gazebos and shelters for recreation. It consists of two planes located obliquely, which are called slopes. In the construction, a double-slope roof is used with symmetrical or asymmetrical slopes, with wired and non-sewn gables. Builders prefer this type of roofing construction, as it has the following advantages:

  1. A light weight. The gable roof does not weigh very much, so for the construction of the arbor is not required to fill a deep and solid foundation. In most cases, it is enough to pour 2-6 columns of reinforced concrete to make the design sustainable.
  2. Easy to operate. The gable roof, due to the slope of the slopes, does not require any special care, as the snow masses and rainwater leave it by gravity. This quality of pitched roofing is important for regions where a large amount of precipitation falls in winter.
  3. Reliability. The roof of the dual-slope type is more stable than single-slope counterparts. It has less windage, so even strong winds do not tear the roofing material from the surface.
  4. Affordable price. A gable roof for a gazebo is quite possible to build your own hands, it saves construction costs. The batten and rafters are made of wood, the cost of which does not change over the years.

Note! If you are going to build a gazebo with your own hands, pay attention to projects with slopes of 25-30 degrees. Such a geometry of the gable roof does not collect on itself a snow cap, because of which the roofing material or the sheathing can be deformed. Consider, the rougher the surface of the coating, the sharper the slopes make.

Device

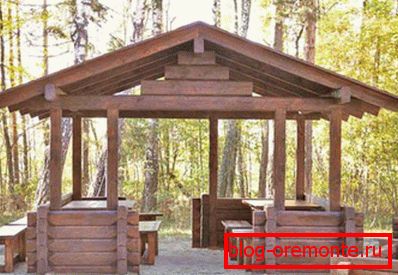

A gazebo with a sloping roof is the most common construction for self-assembly, since it uses affordable materials and tools available in every home. It consists of the following structural elements:

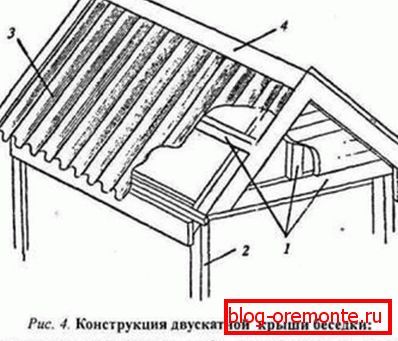

Gable roof device for gazebos
  • Pillar foundation. To fill the basement of the gazebo with a drill, 50-60 cm deep holes are made in the ground. To reinforce the base of the structure, insert the bars of the reinforcement into the holes and fill it with cement-sand mortar. Column foundation solidifies completely in 1-4 days.
  • Bottom trim frame. It is made of pine timber 100x100 mm in size along the perimeter of the future arbor. The elements are fastened together with metal corners or nails.
  • Support pillars. They are made of durable timber with a thickness of 100x100 mm or 150x150 mm. When mounting by hand, they are installed vertically on the bottom trim. Until the pillars are fixed with upper strapping, it is necessary to reinforce them with temporary struts in order to maintain a vertical position.
  • Top strapping. It connects the tops of the supporting pillars of the gazebo together, forming a rigid, stable structure. Fastening is performed with the help of metal corners or wooden bars.
  • Railing They are installed at a height of 100-120 cm from the floor level of the gazebo. The railing is made of 100x100 mm timber and fixed with metal corners to the supporting posts.
  • Truss system. The truss system of the gable roof gable consists of rafter legs, ridge girder and lathing. If the roof covering is of considerable weight or it is necessary to block the construction of a large area, the frame of the roof is reinforced with struts and puffs.
Diagram of a simple project of a gable roof

Important! When building a gazebo with a double-slope roof, consider with your own hands that wood has a low degree of resistance to moisture. Therefore, all wooden elements of the construction are impregnated with antiseptic compounds in several layers and covered with a protective varnish or paint.

Recommendations of the masters

Building a gazebo to give their own hands, a craftsman without experience can make a lot of annoying mistakes and mistakes, the correction of which will require investment or takes valuable time. In order to meet the expectations, follow the following recommendations provided by professional masters:

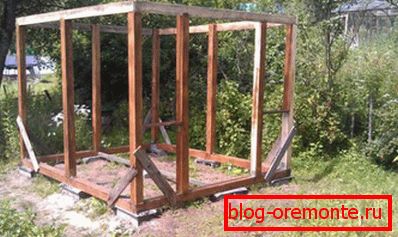

  1. Use roofing materials with a low resonant capacity as a roofing roof gazebo. Decking or metal tile during the rain creates noise, which is why audibility is reduced in the building. Ondulin, slate and rolled roof types extinguish the sound of falling drops, keeping silence in the gazebo. Arbor frame with double-sided roof
  2. If the gazebo is supposed to install a stationary or portable brazier, choose non-combustible types of roofing materials. If the coating does not have refractory properties, the roof area under which the source of fire is located should be protected with a screen made of metal or asbestos cement.
  3. For stoves, fireplaces or barbecues, installed inside the gazebo, be sure to equip the smoke removal channel. Otherwise, the smoke with the combustion products of the fuel remains in the structure, making it less comfortable.

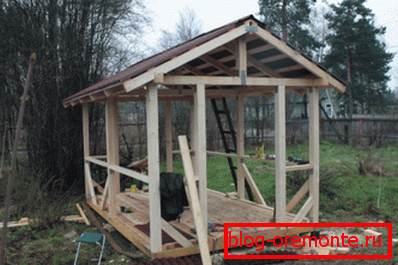

Installation of a gazebo with a double slope roof

Note! Skilled craftsmen recommend using low weight materials to overlap dvukhskatnyh roofs in order to reduce the load that the building has on the foundation. In order to have more light in the gazebo, you can use polycarbonate as a cover and leave the gables unstitched.

Video instruction
