How to make a chinese roof do it yourself - device and

14-05-2018
Roof

Eastern architecture has always attracted a lot of attention because of its unusual, original forms, the use of bright colors and interesting design solutions. The East is traditionally associated with something mysterious, mysterious, or even mystical, so this design direction remains popular and relevant for a long time.

Even just a Chinese-style roof with curved edges and a wide cornice brings Eastern exoticism to the look of the house and radically changes its look. In this article we will talk about the characteristics of this type of roof and the technology of its device.

Features of the form

The Chinese roof is an original constructive decision, which is considered to be the business card of the eastern direction in design. Her appearance is significantly different from the traditional triangular dual-slope roofs for our area. A house with a roof in the Chinese style immediately acquires eastern exoticism. Characteristic features of this design are:

  1. Curved upwards, looking to the sky. Roof eaves, bent at an incredible angle, give the building an original look, resembling visually oriental temples, pagodas or tea houses.
  2. Wide, massive cornices. Overhangs in the Chinese style are carried away from the outer walls of the building, protecting it from heavy rains, snow and wind, that is, all adverse weather events.
  3. Tile special form. To cover the roof in the Chinese style is used a cylindrical ceramic tile, with which it is convenient to draw out the corner joints and ridge design.

Note! The roof in the Chinese style has one distinctive feature - the lack of a traditional roof system characteristic of dual-slope, hipped roofs. Its frame is a stand-and-beam construction that reliably distributes and carries the weight of the roofing pie.

Chinese style roofing device

Appearance and coating

To cover Chinese roofs, traditional cylindrical ceramic tiles are used. The use of this type of roofing material allows you to more accurately arrange the joints between the slopes and ridge. A unique view of the roof in addition to the curved eaves attached:

  • Figures chiang show. A special profile of a rectangular shape with figures depicting various mythical creatures is used for the design of the joints. They not only protect the roof from the penetration of water in the most vulnerable places, but also gives it an original, recognizable appearance.
  • Ridge profile with clips. The profile for the decoration of the ridge with ceramic clips is the most recognizable element of Chinese architecture. Thanks to him, the roof becomes "horned."
Chinese style roofing

Important! Before you make a Chinese roof, you need to consider that ceramic tiles, massive frame and wide curved eaves significantly increase the weight of the structure. To withstand the weight of the eaves, a special system of brackets, called dougun in traditional Chinese architecture, is equipped.

What to choose the original or imitation?

Do-it-yourself Chinese roof is an aesthetic and elegant option for a country house, gazebo or commercial buildings designed to accommodate cafes and restaurants. However, if one strictly adheres to architectural traditions, one may encounter difficulties, since the post-and-beam construction has a very complex structure, requiring a large amount of financial and physical costs. To reduce costs, you can simulate the traditional Chinese roof with the help of simpler design solutions and modern waterproofing materials. The original and imitation differ in the following factors:

  1. Traditional Chinese roofing is characterized by the lack of a truss system, since usually in buildings in China, support columns are usually used instead of bearing walls. Such a device allows minimizing the negative effects of seismic activity. The post-and-beam system is specially designed to withstand intense loads.
  2. Imitation of the Chinese roof is different in that it is built on the basis of the usual truss system and lighter, flexible roofing materials, which allow to fit the structure of the frame. Visually, it accurately imitates the appearance of the Chinese roof, but it is much cheaper.

Important! Before you build a house with a Chinese roof, you need to decide whether you will do an imitation or the traditional version. Professional masters believe that in our area, where there is almost zero seismic activity, it is better to limit to imitation, as it also looks spectacular, but much more convenient from the point of view of installation.

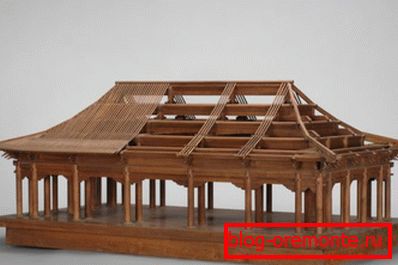

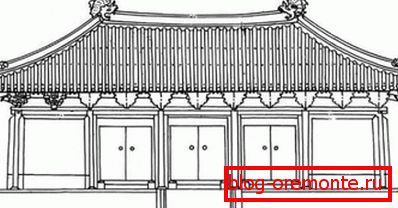

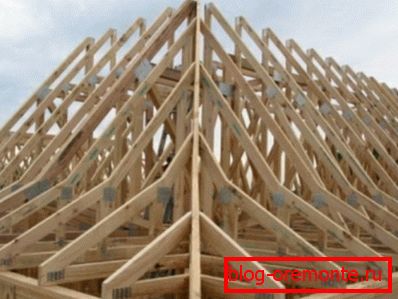

The device of the Chinese roof and its imitation Chinese roof layout Hip roof, stylized Chinese

Mounting technology

Experienced craftsmen claim that the roof for a Chinese-style house or gazebo is a laborious, but quite real, constructive solution. The key to reliability and durability of the design is the accuracy of calculations and the use of quality materials. Installation is performed in the following sequence:

  • The first step in creating a Chinese-style roof is planning. In order for the structure to withstand its weight, it is necessary to calculate the load that lies on it.
  • First of all, after the installation of the Mauerlat, vertical supports are installed exactly in the center, they must be sufficiently strong and powerful.
  • Then the second boards are installed, which at one end rest against the mauerlat, and the second - in the middle of the vertical stand.
  • The next board with one end rests against the middle of the second beam, and the tip of the upper point of the vertical support column, located in the center.
  • After installation, the design of the supporting beams equip the crates on which waterproofing is placed.
  • When the installation of waterproofing and lathing is completed, you can proceed to the laying of the roofing material. Usually for the erection of roofs in the Chinese style use shingles, which bends well, and therefore easily fit on curved ramps.

Note that the Chinese-style wide roof moldings must be hemmed from below to protect their penetration of moisture, cold air and snow. In addition, you can decorate the finished roof with traditional figures.

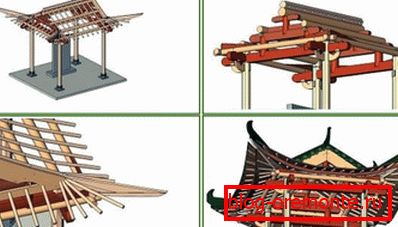

Device frame Sling system Chinese style gazebo
