How to install snow holders on the roof of metal - photo,
The climate of most parts of Russia is famous for its frosty, snowy winters, so our people developed a special relationship to the cold. Therefore, snow is an indispensable participant in children's games and winter fun. However, the snow may not be so harmless, especially the code flies from the roof over your head. The unorganized, avalanche-like gathering of snow masses from the roof slopes often causes injuries, injuries, damage to parked cars nearby, and debris on driveways. A comprehensive solution to these problems is the installation of snow guards.
Snow retention systems
Metal roofs especially require the installation of snow retention elements, since the smooth surface of the slopes facilitates the slipping of the snow cap. The ice crust, which is formed when the lower surface of the professional sheet is heated by warm air, leaves deep scratches on it. In damaged areas, where the protective galvanic layer is broken, corrosion occurs. To premature failure and leakage of the roof, use snow guard, working on the following principles:
- Snow plows. This term refers to devices for snow retention, which do not stop the movement of snow masses from the roof slope, but divide the layer into several parts so that during the fall it does not cause significant damage. The advantage of this design is that on the slopes do not accumulate drifts of large mass, overloading the truss frame and the foundation of the house. Instructions for such devices allows you to install snow blowers on the roof with any slope.
- Snow Barriers Snow-blocking fences work on a different principle, they are installed along the slope in the form of a small fence and stop the gathering of snow mass. So that the accumulated snowdrift does not deform the roof and the rafter frame, regular snow removal is required. Professional roofers argue that the installation of snow barriers is justified only if the foundation and roof have the necessary margin of safety and a sick bearing capacity.
Important! Selection of devices for snow retention is performed taking into account three criteria: the amount of precipitation in winter, the angle of inclination of the slope and roofing. Choosing snow protectors on metal roofing, pay attention to the models that work on the principle of snow blowers. Due to the fact that the snow alone is safely removed from the roof, you can not be afraid to leave it without cleaning even in heavy snowfalls.
Types of snow guard
Snow shields on metal tiles are produced in the form of snow-blocking and snow-through constructions. They are made from durable, high-quality metal, as each element is subjected to significant loads. The most popular are the following types of elements of snow retention:

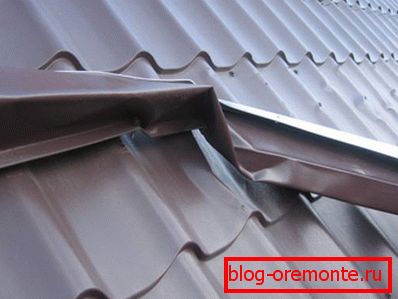

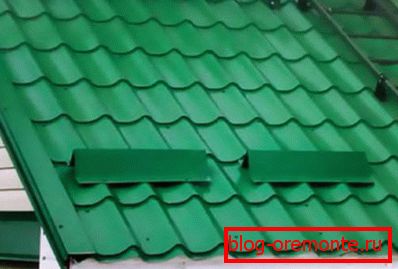

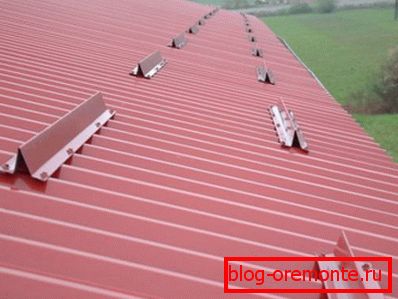

- Corner. These are the simplest structures used to hold snow masses on the slope of the roofs. They are metal corners of stainless steel, painted in one color with a metal tile. Corners are fixed on the slope in 2-3 rows, placing in a checkerboard pattern. The cost of one corner is 100-150 rubles, so the installation of these elements will not hit the pocket of the homeowner. With a tool and a sheet of metal, they are easily made by hand. However, the effectiveness of this design is extremely small and is not suitable for areas with a lot of snow and roofs with steep slopes.

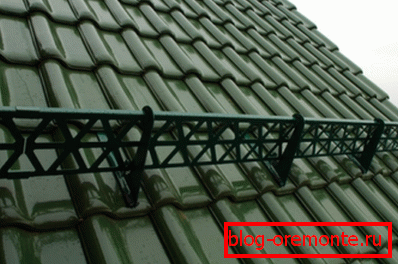

- Grid. Snow holders in the form of a lattice, fixed with brackets on the roof slope, are called lattice. They are included in the category of snow cutters installations, as they do not completely stop the descent of the snow layer. The bars of the lattice divide the snowdrift into parts, preventing the large blocks and ice floes from sliding down. The more often the rods are located, the smaller amounts of snow will be dropped. Manufacturers recommend installing elements of this design on the roofs with a slope of 35-45 degrees.

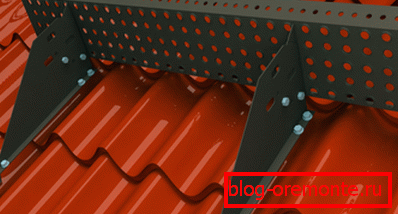

- Пластинчатые. Элементы снегозадержания, изготовленные из металлических пластин и с помощью кронштейнов установленные на скате, называют решетчатыми. Они блокируют снег на крыше, не позволяя ему скатываться до полного таяния, когда он под действием солнечных лучей превратится в воду и попадет в водосток. Installation снегозадержателей такого типа на крутых скатах 50-60 градусов запрещен, так как пластины не выдерживают напора снега, скатывающегося с большой скоростью, гнуться и повреждают кровельное покрытие.

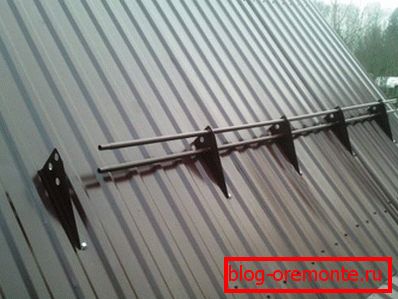

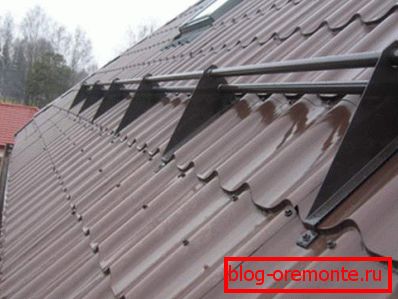

- Tubular. Devices for snow retention of tubular structures are horizontal pipes with a diameter of 6-10 cm, installed in 2 rows along the slope in the form of a small barrier. Passing through it, the snow mass is divided into thin plates. Thanks to batch snowfall, its fall is carried out safely, without threatening the health of people passing by and without overloading the roof frame of the roof. Fixed tubular snegozaderzhateli with the help of special holders and long roofing screws.
Important! The cost of a single snow tube holder of a tubular or trellised construction with a length of 3 m is 1000–1500 rubles, which may adversely affect the homeowner's family budget. In order to save elements for protection from falling snow, they are installed only above the places where the gathering delivers the greatest inconvenience: above the porch, walkways, and parking.
Installation
The installation of snow retention elements is planned during the design of the roof, as they increase the snow load on the roof frame and the foundation. You need to decide in advance on the design and principle of operation of the devices, as some of them require special conditions. The installation itself is quite simple and is done by hand in the following order:
- When designing the roof, the installation sites for the snow-blocking barriers are determined. Usually they are mounted along the eaves, above the roof windows. The first tier is placed above the bearing wall of the house so as not to increase the load on the overhangs. The following rows are located at a distance of 1.5-2 meters. Tubular, lamellar and lattice devices are mounted in rows, and angular and drag in a checkerboard pattern.
- During the roofing work in places where it is planned to install devices for snow retention, the crate is reinforced with boards of 50x150 mm. Some masters of these areas are additionally waterproofed to prevent leaks.
- After the flooring of the metal tile is stretched, the string indicating the installation line of the snow guards.

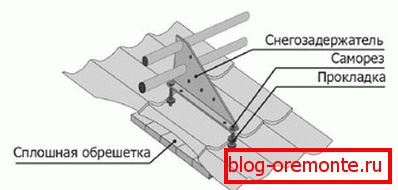

- With the help of a screwdriver and long roofing screws with a press head and a rubber sealer, brackets are fixed on the slope with a pitch of 50-60 cm. The heap the roof slope, the more often they install holders for snow holders.
- The grilles are inserted into the hooks on the brackets, and the tubes are threaded into the holes in the holders. After installation, the reliability of the design must be checked.
Note! Usually one row of tubular devices is enough to contain the snow masses on the roof. But if the amount of precipitation in winter in the area where construction is underway is more than average, and the length of the slope exceeds 5 m, then professional roofers recommend installing an additional row that reduces the rate of snowfall.
