Hc35 corrugated flooring - dimensions and specifications
Profiled metal sheet is a multifunctional building material that is suitable for performing a variety of manufacturing operations. It can be said that the construction of a single object does not do without the use of a professional sheet. When choosing, it is important to take into account that the thickness, shape and height of the profile, as well as the bearing capacity should correspond to the functions assigned to it. In this article we will tell about the HC35 universal sheeting, which combines high strength and lightness with a small price.
The composition of the material

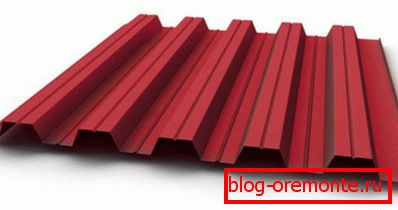

NS-35 corrugated board is a universal type, that is, it is suitable for roofing work, as well as for the construction, wall covering. It is made from steel billets with zinc coating, the size of which is 1250 mm, by the method of cold rolled. In the process of manufacturing material give a trapezoidal profile with additional stiffening ribs. The sheet of a professional flooring of this brand consists from:
- Steel base. As the basis for the manufacture of corrugated board using high-quality rolled steel made in a cold way. They are strong, steady against mechanical influences material.
- Zinc coating. To increase the corrosion resistance of corrugated sheeting, galvanized zinc plating is applied to the steel, which protects it from contact with water.
- Top sheeting. To extend the life of the material, increase wear resistance, corrosion resistance, HC35 professional flooring is coated on one or both sides with a paint or polymeric layer. At the same time, the brands with polymer protection demonstrate the best performance, and therefore last longer.


Note! Technical characteristics, the size of the professional sheet NS-35 are regulated by GOST 24045-94 and TU 1122-079-02494680-01. Material that meets the requirements of these regulations, used in civil and industrial construction.
Sizes, performance
The name "NS-35 professional flooring" says that it belongs to the universal type, that is, this material is equally effectively used as roofing and wall. Twhat versatility is achieved, thanks to the combination of light weight, high bearing capacity of the brand. In addition, a good size allows you to use this practical material for the construction of small and large architectural forms. It has the following specifications:
- The geometrical width of the professional sheet of this brand is 1064.75 mm, and the width of the workpiece from which it is produced is 1250 mm.
- The useful width of the HC 35 professional sheet is 1000 mm, this size is convenient for calculating the required number of sheets for installation.
- Manufacturers have the technical ability to produce profiled flooring of this brand with a length of sheets up to 12 m. They can cut material into an arbitrary size with a step of 0.5 m. Sheets with a length of more than 6 m are rarely made and only on order, since it is difficult and expensive to deliver them.
- The thickness of the NS-35 professional sheet is 0.4-08 mm, this indicator has an impact on the carrying capacity and coating weight.
- Each square meter of material weighs 4.45-8.4 kg. The difference in weight is due to the different thickness of the profiled sheeting of this brand.

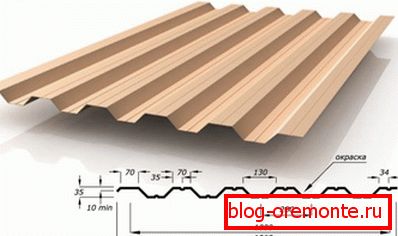

- The profile, the height of the ridge of which is 35 mm, has a trapezoidal shape with two additional stiffening ribs.

Important! Professional flooring brand HC35 is often called roofing, as it is mainly used for flooring with any area and slope of slopes. They successfully overlap flat and pitched roofs, due to the high bearing capacity, which gives the material additional stiffening ribs, located longitudinally in the lower and upper part of the profile.
Application
Technical characteristics and reasonable price allow to use a professional flooring of the NS-35 brand for any construction needs. This material is in high demand, so it has a high bearing capacity at a low price. It is used to perform the following tasks:

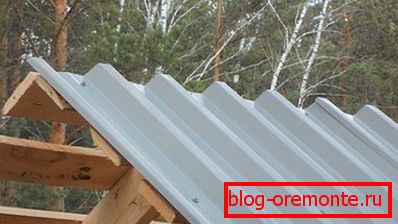

- With the help of a professional flooring of this brand I will lay the roof covering of flat and pitched roofs with any angle of slope of slopes. It is used in regions with difficult climatic conditions, where there is an increased wind load.
- It is used for the construction of pre-fabricated frame structures (trade pavilions, warehouses, cabins, garages, sheds, shopping centers, kiosks).
- This type of profiled sheet is suitable for external and internal wall cladding with or without insulation.
- It is often used to build fences around industrial and civil facilities.
- From a professional leaf of this look collect a sandwich panel.


The price of professional flooring NS-35 with a polymer coating in hardware stores is only 300-400 rubles per running meter (which corresponds to 1 square meter of usable area). It has a unique ratio of cost to bearing capacity and service life, which is no longer found in any roofing material.
