Gable houses - views and devices

Poorly made gable nullifies all the efforts on the arrangement of the roof. In order for the cost of expensive roofing material to be justified, it is necessary to sheathe a section of the wall, which is sloped from the sides by roof slopes, and below the eaves, and to perform thermal insulation with a suitable heater. How to decorate the front of the house, what material and method of installation will be better described by today's article.

Device and species

The pediment is a part of the end wall located between the two slopes of the roof, the bottom of which is the cornice. This element is present in almost every type of pitched roof, except for the hip and hip. Depending on the appearance of the gables are divided into the following categories:

1. Triangular. The most common form characteristic of dual-slope roofs with straight slopes. In form, it resembles an isosceles, equilateral triangle, the two sides of which form the overhang of skates, and the base - the eaves.
2. Pentagonal. This type of pediment is a distinctive sign of double-sloping broken roofs. It is as if it consists of two figures, put together, a triangle and a trapezium. The pentagonal pediment has a large area, so its installation is associated with the manufacture of a reliable frame.
3. Trapezoidal. Gables in the form of a trapezoid build for half-hinged roofs of the Danish and Dutch species. As their name says, they have a trapezoidal shape, the base of which is the eaves, and the sides are slopes of roofs.

In addition to the main types in architecture, they use more intricate types of pediments in the form of semicircles, keel, bow, and steps. The material from which they are made may coincide with the main material of the walls, and another type of finish may be used.

If the room under the roof is not intended for use as residential, then the minimum permissible height of the gable in accordance with building codes is 0.7 m. For the equipment of residential single-level attic, the distance from the eaves to the ridge of the roof should be at least 2.5 m, for two-level - 5 m or higher.

Gable overhang

Gable overhang – это выступающий элемент скатов крыши, обрамляющий торцевой фронтон по бокам и переходящий в карниз. Ширина свеса не регламентируется строительными нормами, обычно этот параметр варьируется в районе 0,4-0,7 м. Чем шире фронтонный свес, тем лучше он защищает отделку стены от попадания влаги. Однако, важно, чтобы этот элемент гармонировал с общим архитектурным замыслом. Сделать фронтонный свес можно следующими способами:

• Due to the crates. When the installation of the lathing on the rafter system occurs, it is extended so that it forms an overhang over the gable of the end walls. This method is suitable for roofing materials with a small mass (Euro-slate, shingles, soft roof) if the overhang width is less than 40-50 cm. For more massive structures, this method is unreliable, since the battens will not withstand the increased load.

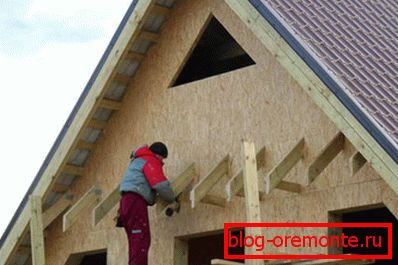

• Due to the truss system. In order to make installation on the truss system, it is necessary to lay the master beam, so that it goes beyond the perimeter of the house. Then the first truss pair and ridge girder will also form an overhang that protects against precipitation. The distance that the rafter system is carried out determines the width of the overhang. The device gable with the removal of the truss system is more complicated and more expensive than usual, however, this method allows you to make an overhang of any width.

So that the material of the overhang itself does not suffer from moisture, it should be hemmed from the bottom. For finishing use wood, siding, spotlights, corrugated. Experienced roofers advise to hem overhangs with specialized perforated soffits in order not to limit the penetration of air into the thickness of the roofing pie.

Ways of erection

Now, knowing what a gable is, we will come to the question of when its installation takes place. Even experienced roofers can not unequivocally answer this question unequivocally. You have to choose from the following options:

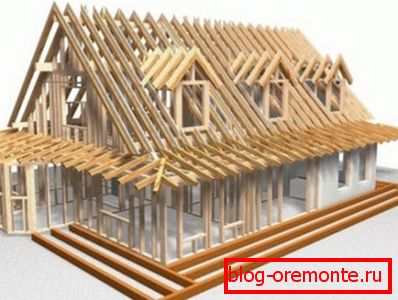

1. Before the construction of the roof. Many craftsmen find this option more convenient, because the prominent parts of the roof do not interfere with the work. The method of installing the gable before assembling the truss system is relevant for regions with strong, gusty winds, where the wall under the roof is used as an additional support for ramps. In addition, having erected a pediment in advance, it is easier to set the geometry of the roof with the help of brickwork, logs and timber.
2. After the construction of the roof. So called mounting gable when it occurs after the completion of roofing work. This is an indispensable method in the case that the construction of the gable is the device of the frame and its subsequent plating. Its advantage is that you do not need to count and mark the shape of the gable, you just need to fill the free space between the slopes. However, overhangs and eaves can make it difficult to get to hard-to-reach places.

Gable trim

The choice of material with which to sheathe the gable - a question that torments every homeowner. After all, I want it to be not only practical and durable, but also not spoil the attractive appearance of the house. Fortunately, home improvement stores offer tremendous choices:

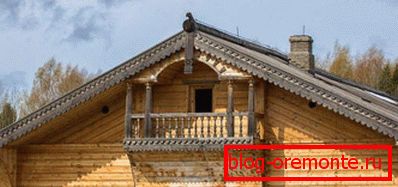

• Wood. The classic version of the gable trim, which never loses relevance. Natural wood is a natural material that perfectly protects against cold and wind. One in view of the low moisture-proof properties of the tree, the pediment sheathed by them will have to be covered with protective paintwork compositions every season. But even with the quality of care, it will not last more than 10-15 years, after which you will need a complete reconstruction.

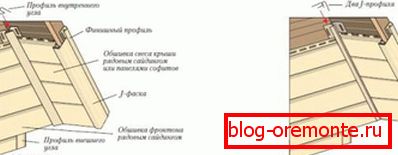

• Siding. Siding is called a modular panel of polyvinyl chloride or metal, equipped with hooks along the entire length, with which they are attached to each other and to the profile. A wide range of siding allows you to choose a shade suitable for the finishing of the main walls or to the roofing material.
• Brick. Brick masonry is used to finish houses of the same material, gas silicate or concrete. The large weight of the brick increases the load on the foundation, so this type of plating needs to be planned at the design stage. In addition, white silicate brick masonry does not look so impressive, so the pediment will have to be plastered.

Equipment gable roof - an important point of construction, which is reflected not only in the appearance of the house, but also on the convenience of its use. Therefore, the installation of this element of the roof deserves careful study and professional approach.
