Endova roof - diagram, device and installation

The higher the complexity of the roof structure, the more different elements it includes. The classic double-slope roof consists of only two slopes, at the junction of which an external edge is formed - the ridge. Multiple options, having more than one ridge, form, in addition to external ones, also internal corners between planes, which are called endov. Many inexperienced builders wonder what the valley on the roof is and how to do it correctly. This article will tell about the features of the device and installation of this structural element, which affect the operation of the entire structure.

What is endova?

Endova is the name of the functional element of the roof, which is formed at the junction of two roof slopes of a complex, multi-tong structure. Simply put, this term refers to the internal angle between two adjacent slopes. End roofing due to the presence of this structural detail is characterized by increased complexity of design, installation and operation. Functions endova believe:

1. Connecting stingrays. Two inclined planes of roof slopes are connected, in the place of pairing forming an internal angle, called endovaya.
2. Collection and transportation of water. Endows are internal corners, so water flows from the slopes into them, collects in a large flow and is transported to the drainage system.
3. Accumulation of snow. Also, the places where skates are adjoining are a place of accumulation of snow masses, therefore the load on the roof system in these areas increases.

Please note that the device of the endova roof should be carried out in accordance with the calculations of the load and the working draft, since this structural element is subject to increased loads due to the accumulation of snow and atmospheric moisture.

Kinds

The polygrain roof is a complex construction, which consists of several slopes, has more than one ridge, and also endyons. A chute between inclined surfaces formed at the point of their junction is a vulnerable point through which leaks often occur if the installation is performed incorrectly. In accordance with the features of the device, the following types of valley are distinguished:

• Open It is an open joint between two ramps, into which a special chute is laid. This is the most easy-to-install version of the gutter device used on roofs with a slight angle of inclination.
• Closed. This option endovy different. What is it slopes fit snugly together, without forming a gap. Endova closed type suitable for roof structures with steep slopes.
• Intertwined Interlaced endo is called the method of the device interface between two associated slopes, in which the sheets of roofing material intertwine, reliably protecting the internal angle from moisture penetration.

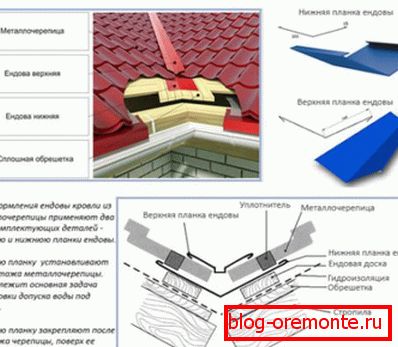

As a rule, a roof of a metal roof or a corrugated roof consists of several elements: reinforced waterproofing, an internal strip that protects the joint from the leakage of atmospheric moisture and a decorative part, making the appearance of the gutter more attractive.

Device rules

The junction of roof slopes of a multi-holed roof is characterized by an increased vulnerability to the penetration of thawed or rain moisture, since it is rather difficult to connect the waterproofing material without a gap. In addition, the gallstone is exposed to increased loads that occur when snow masses accumulate in the winter. Therefore, the end roof must be constructed in accordance with the following requirements:

1. In the place of interfacing the individual parts of the multi-tong construction, it is necessary to reinforce the crate. Solid decking from the board helps to more evenly distribute the weight of the roofing material and the load that falls on the roof when snow falls.
2. Razlelobok polychip roof needs reinforced waterproofing. To protect the valley from water leakage during showers or melting of the snow cap, it is necessary to provide it with additional waterproofing, for this purpose a special waterproof lining carpet will be equipped.

Before you make an endova on the roof, you must carefully consider its design, so that during operation it will not cause leakage. When creating a project, it is important to correctly calculate the load to which it will be subjected. For example, ceramic tile has a much greater weight than corrugated board, so it requires additional reinforcement sheathing.

Requirements for materials and components

Endova is also called a special bar for the equipment of internal corners between the slopes of the roof. For each roofing material, special components are made to protect the gutter from moisture penetration. Endowments for sheeting, roofing steel and metal tiles are corners, and additional elements for tiles resemble semicircular gutters. The main thing is that the material from which they are made meet the following requirements:

• Additional elements should be selected in accordance with the roofing material, which covers the roof.
• The material from which the additional elements are made must be highly resistant to moisture in order to protect the gap between the roofing material from moisture penetration.
• The additional elements used for the equipment of a chamfer should have high mechanical strength and a long service life.

Interestingly, before the manufacturers did not produce special additional elements for the equipment of the gutter, therefore, the developers used various improvised means and remnants of roofing material for these purposes. Now produced reliable and aesthetic endova, suitable for any color and type of coating.

Installation technology

Many inexperienced roofers do not know how to make an endova to avoid leaks during the operation of the roof. In fact, this is a fairly simple technological process, which is carried out in the process of laying roofing. The installation of endova is done with the help of a screwdriver, screws, metal shears, waterproofing film, sealant and a special strip. Installation is as follows:

1. First, in the place where the roof roof is mounted, there the mounting scheme of the batten is reinforced with additional elements. It will be optimal to mount a continuous crate of edged board of 40x150 mm in size in this area.
2. On top of the continuous crates fit waterproofing. To ensure that the lining carpet is reliably protected from leaks, the material is laid in several layers.
3. Then, on top of the waterproofing using an screwdriver and galvanized self-tapping screws to the crate is attached to the inner strap zazhlobka.
4. After the roofing material is laid, the gap, where the ramps join, abundantly coat with sealant, and then close with a decorative corner, fixed with the help of roofing screws with special washers.

Keep in mind that only the end roof, mounted according to technology, reliably protects against precipitation, and also does not give in to deformation with increasing load.
