How to adjust the warm water floors

In many new homes, water floor heating is increasingly being used as the main heating. But in some cases, floor heating is additional to the main radiator. The coolant temperature for the radiator system is usually up to 70 ° C. For a warm floor, the temperature should be equal to 35–55 ° C (for this reason, a warm floor is called a low-temperature system). Given this, it is important to know how to regulate warm water floors, because the temperature drop is significant.

The heat carrier supplied to the radiators is very hot for a heated floor. Although there is one convention in which this is possible. The floor area is increased several times, respectively, significantly increasing the cost of its installation and the purchase of material. Therefore, the best option is to individually control and adjust the temperature of the coolant for a system of warm water floor. In this article we will discuss with you several such methods.

A room with a large and small area

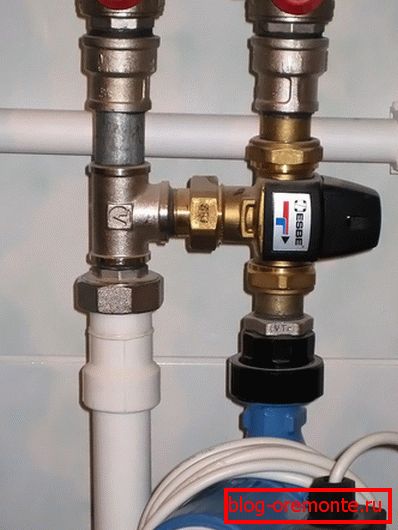

When the heated area is too large, the mixing valves are installed. Their installation is performed directly in the boiler room. Thus, the heated coolant, for example, up to 65 ° C, is fed into the radiator and simultaneously to the three-way valve. With the passage of coolant through the mixing valve reaches the required temperature for underfloor heating.

Note! If the coolant temperature for radiators exceeds the mark of 75 ° C, then lowering the temperature is carried out by a two-step method. Four-way and three-way valves are used at the same time. They are installed on the pitch.

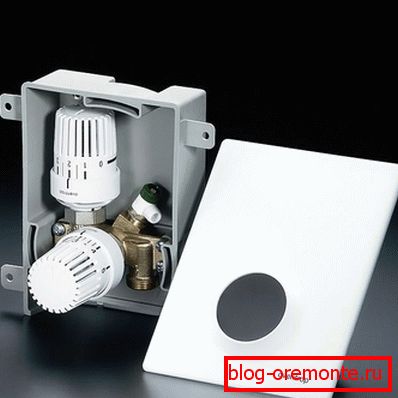

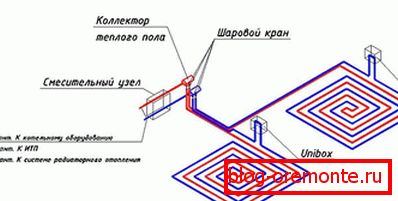

As for small heated areas, in addition, you can use the Unibox adjustment module. Through it, you can adjust the temperature of the coolant to a predetermined temperature. The Unibox module has the following configuration:

• Mounting box.
• Thermostatic valve, which is equipped with a bypass jumper.
• Deaeration valve (designed for deaeration).
• Thermostat.
• Couplings.

For the operation of this module is unnecessary electricity. It is installed on the wall in a heated room. There are several types of modules:

1. Regulate the temperature of the coolant.
2. Regulate the temperature of the room.
3. Regulate at the same time the temperature of the coolant / room.

These actions are possible thanks to the integrated thermostatic valve.

Simple temperature adjustment method

One of the simplest methods of temperature control is to install floor heating pipes with operating temperatures up to 95 °. For this purpose, a pump and a check valve are installed for flow. Also installed invoice thermostat on the reverse collector of a warm floor. Thus, a heat carrier that has a temperature of 80 ° C will be supplied to the heated floor. Temperature decreases due to cooled return. If the temperature in the return line rises, the thermostat gives a signal and the pump shuts off, thus the hot water supply stops. The system is in standby mode until the return line has cooled again. Warm floors giving off heat cool the coolant. After that, the pump restarts and a new portion of the hot coolant flows.

Note! This method of adjusting the temperature of the coolant in a water system is considered the cheapest and at the same time reliable option.

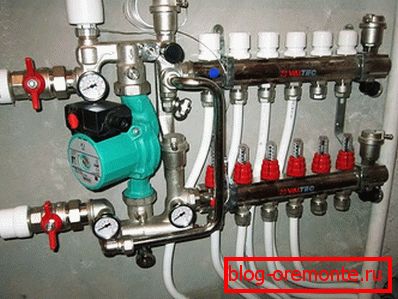

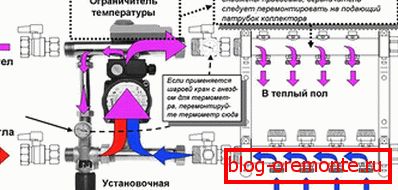

Application of the mixing module

Another method of adjusting a warm water floor is to install a mixing module. It has such a complete set:

• Three-way valve.
• Bypass.
• Pump.
• Thermometer.
• Maximum temperature switch.
• Thermostatic head.

Note! Although in aggregate, this equipment is very expensive, its efficiency fully pays for it. This complete set completely corresponds to the European sample. The radiator system is supported t 65 °C, and on heat-insulated floors the heat carrier with the set temperature arrives.

In our country, in most cases, temperature adjustment is performed through the boiler, which causes certain inconveniences, namely, temperature “chaos” occurs. It is very difficult to derive an average figure for radiators and a warm water floor. Therefore, the use of a mixing module is a valid and effective means of how to regulate the temperature.

So, in this article we discussed with you the method of how to adjust the temperature of the coolant in the floor heating system. If you already use one of the listed methods, then write your observations. Perhaps you notice the disadvantages or merits of a particular method.

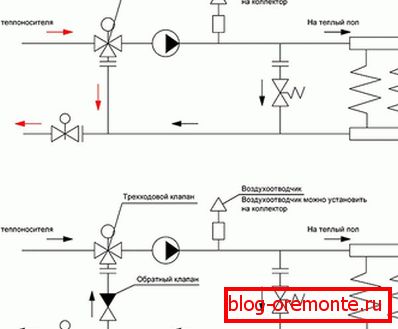

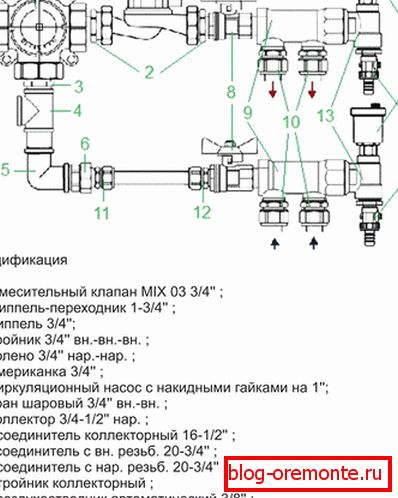

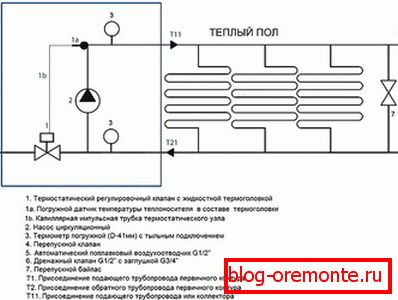

Scheme

Video

From the video you will learn about a simple method of adjusting the temperature of a heated floor:
