We do a section fence from a grid of the chain-link

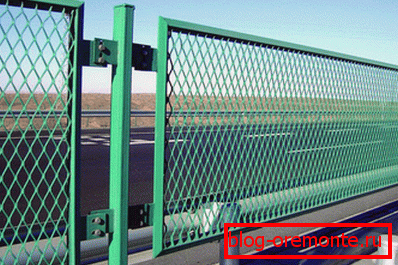

Sectional fence of the grid Rabits - separation fence

When the fence around the estate or production facility does not serve to hide the contents inside, then in such cases, fences from the Rabitz grid in sections are well suited. This, of course, is a rather conditional obstacle, but everyone knows that the thief is not stopped by strong constipation, but by some psychological aspects. In fact, such an obstacle is virtually and more a psychological barrier.

Grid Chain-link and fences

What is the chain-link netting?

Mesh Netting

• The Russian name for the fence came from the German Rabitzgewebe, which literally means Rabitz's grid, but the original source of expression is the name of the inventor from Germany, Karl Rabitz. It was he who in 1878 described and patented this type of structural material. That is, in this case, it turns out that the word Rabitz answers the question “whose” or grid of the inventor Rabitz.
• At present, this patent is either forgotten, or annulled and effective is a document registered in the United States in 1812 in the name of a certain Peters. However, its manufacturing technology has not changed, except that weaving machines have been improved.

Machine for making mesh netting at home

• At the time of manufacture, one flat wire helix is ​​screwed into another, and for this, conventional simple machines or semi-automatic machines can be used, but this is for large production volumes. So this technology is available even at home, and you can easily make a chain-link with your own hands (also learn about the features of installing a cinder block fence).
• When purchasing a machine, of course, you will also be given instructions for working with such a mechanical unit. The grid of this type can be from ordinary, galvanized or polymer coated steel wire. There are also stainless steel samples, but this is extremely rare and is performed, as a rule, on semi-automatic machines.

Council If you want to independently make fence sections from the Slab mesh, then the quality of your product will largely depend on the wire for weaving. For example, galvanized low carbon steel wire is commonly used for handwork.

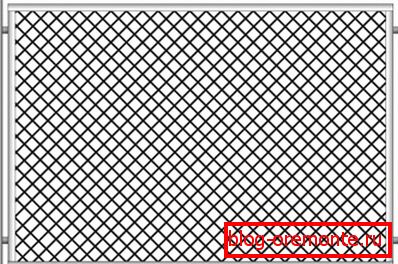

Grid Chain-link enclosed in section

• If you just stretch such a fence, then over time it will stretch and begin to sag, so a rectangular frame of the desired size is made of a metal corner 40 × 40 or 50 × 50 cm and the construction material is installed there. Such sections of the fence from the Rabits grid can be of almost any size - everything will depend on the wishes of the customer, that is, there are no restrictions here (read also about the advantages of the chess fence).

Installation of the fence sections

Attachment options for fence posts

• Any sectional fences from the grid of the Chain-link are made on the basis of metal or reinforced concrete columns, which are mounted in the ground in different ways. The first, the easiest option, is when a steel round, square or rectangular profile is simply driven into the ground to a depth of 60 to 80 cm with a sledgehammer. The method is certainly very simple, but after some year or two the ground will sit down and the fence will begin to warp.
• A combined method is also possible when a hole is made about 40 cm deep and the column is driven into the ground to a similar depth. The remaining pit is filled with cement mortar. In such situations, of course, the fence will not skew soon, but that part of the rod, which in the ground in 10-15 years will still peregrveet and the mount will weaken.
• There is another reasonably robust way to set up the posts to hold the net, this is a boot. That is, a hole 60-80 cm deep is dug, a support is put into it, and then large pieces of granite, brick or concrete waste are thrown into the remaining voids, which are tamped with some kind of scrap or handle from a shovel.
• And, finally, the last, most reliable method of placing supports for the fence sections, is to fill the column with cement mortar in the hole to the bottom. In this case, the underground part of the profile will be saved much better than the aboveground part.

Council Bunting and pouring mortar columns to half is a suitable method for installing reinforced concrete pillars. The most acceptable method for a metal profile is to fill it completely with cement.

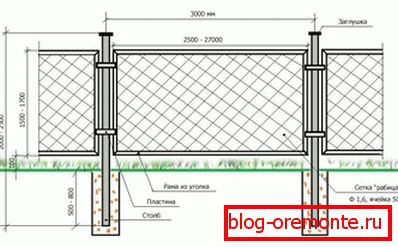

The scheme of installation of the fence from the grid Rabitz

• Probably, it is not necessary to say that all the posts should be set strictly on the level and clearly along the line. On supports, concrete or metal, two plates are mounted, which serve as consoles for the grid (see photo diagrams above). Fastening to the brackets is usually done with bolts and nuts, but sometimes this is done by welding, although this is wrong from the point of view of both production aesthetics and technology (learn also about how to make a fence from the netting chain).

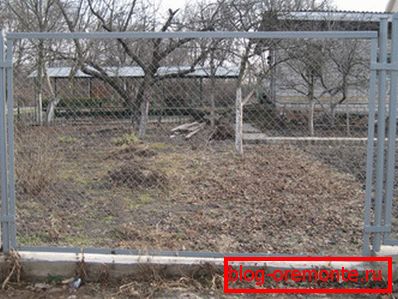

Differential sections as soil slope

• Watch the video clip attached to the article on this topic, and you will see that the grid is always set strictly parallel to the horizon line. If the fence is located on a slope, the installation is still horizontal, but with differences as the platform is tilted. Under the fence is often poured concrete curb, which protects the estate from the drains of rainwater and soil washing garden.

Conclusion

Of course, such a fence is transparent, but in accordance with this its low price is also determined, which is almost always available to the average resident of the Russian Federation. Despite its transparency, the fence serves as an excellent protection from stray animals and neighboring living creatures, and also keeps its own domestic animals in the estate.
