At the moment, European fences began to be widely used, and for their self-manufacturing it is necessary to purchase forms for concrete fence. Such a matrix allows you to make many copies, therefore, having available, for example, ten or twenty samples, you can set up your business.

Polyurethane form for a concrete fence

How to make concrete fences

Fiberglass

Fiberglass product

Прежде всего, хотелось бы отметить, что формы для литья изготавливаются из разных материалов, да и сам процесс изготовления заборных панелей происходит либо методом быстрого выброса, либо методом вибролитья. К тому же вам понадобятся не только матрицы для плит, но и для столбиков, а также жёсткие коробы для образцов из мягких материалов. Для производства применяется АБС пластик, стеклопластик, поливинилхлорид (PVC), полиуретан, полистирол и акрил (для столбиков также используется металл).
The fence form made of concrete is made of fiberglass made of a material not less than 7 mm thick (the thinnest places in the relief of the matrix) in a metal frame and a frame from an angle of 50 × 50 mm. For the convenience of working with equipment, handles are welded to the device so that it can be transferred along with the concrete poured in there. Such forms are used for the manufacture of products by the method of rapid release.

Vibration Casting

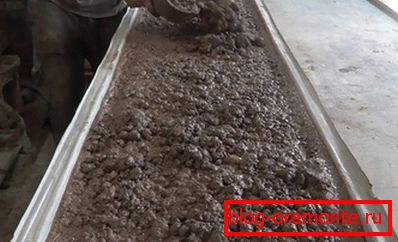

This method allows for one shift (approximately 8 hours) with just one mold to make about 20 cast specimens. The essence of the process is as follows: the form is installed on the vibrating table and concrete is loaded into it, and then vibration is activated.

Product reinforcement

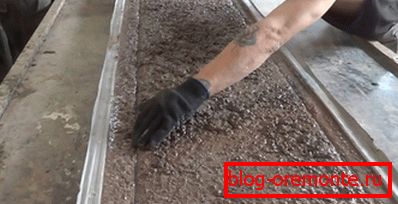

When, during vibration, the solution fills the form somewhere up to half or slightly more, the product, as required by the instructions, must be reinforced, as shown in the photo above. In this case, two metal rods fit into the future panel, but more voluminous plates should be reinforced with a large amount of steel wire (see also Blocks for Fence — simplicity and originality).
After the reinforcement has been placed, the container is filled with the solution to the end, and all this happens when the table vibration is on. When the whole form is filled, it is slightly smoothed from the back side and removed with a spatula. When the back side is smooth - the product can be freed from plastic.
For this, the form is removed from the vibrating table and transferred to a drying rack, where it is placed vertically on its side. Then the cotton is turned over with concrete and gently released from the matrix, which can be immediately used for further production.

Council If you want to establish a non-stop production, then you should take care of the place to dry. This means that for each shift the required number of free racks must be provided.

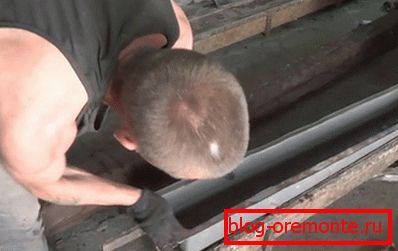

Form for a concrete column

The columns are made in exactly the same way as the panels themselves, and the time for their production is spent almost the same, but of course there is less material. We should not forget that the racks will also be needed to dry the supports.

PVC

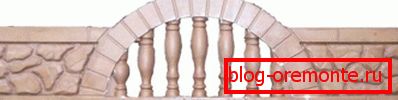

Форма из PVC

Пожалуй, цена на формы из PVC (см. фото вверху) и АБС пластика наиболее низкая, но это никак не умаляет качество самой матрицы и производимого в ней изделия. Плиты для заборов в таких формах производятся методом литья или заливки бетона (фиброцемента) в форму. Высыхание производится либо в сушильных камерах, либо естественным образом, но наименьший срок перед освобождением изделия от кожуха – одни сутки и более – всё зависит от температуры воздуха окружающей среды.
In such forms, you can make slabs of various colors using decorative cement, as well as display the structure of marble with stains or decorate them under granite.. Due to the fact that you can produce no more than one product per day using a single matrix, continuous production will require as many forms as you can make in one shift. In addition, each of them should be with stretcher handles in order to be able to transfer it from the vibrating table to the rack.

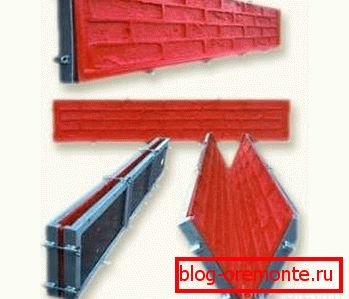

Double Sided Polyurethane Molds

Double-sided polyurethane molds for casting fences

Such forms for casting can provide the display of almost any structure that is pleasing to the customer (see also the article Fence of concrete products: types, advantages, installation features). Most often, concrete panels are made under the decorative stone, which is perfectly combined with other building materials, such as brick, wood, metal and plastic. Considering the fact that for the CIS it is a relatively new type of production, not a very large number of people are employed in it, therefore, double-sided concrete fences at the moment can be a start with a good development perspective.
In order to decide which ones to acquire casting molds, you should think well and watch the video in this article, because the tastes of customers may change or correspond to a specific place of residence. When buying dies, it should also be noted that polyurethane is a relatively expensive material and its cost is made up of the weight of the product. But the double-sided panel itself also costs much more than the others, so all costs will pay off in the very near future.

Council Do not forget that the use of decorative stone and products that imitate it for Russia is very new and not tested, but if you look at European countries, then such a design is quite developed and has a great demand. The conclusion suggests itself - if you like in the West - you will like it in the CIS.

Conclusion

If you decide to set up a business in this industry with your own hands, then, of course, you need to focus on the production of fences, not forms (Find out also what a precast concrete fence is). The manufacture of matrices is interspersed with other production and has no relation to the fences, as such.
