The lock on a gate from a professional flooring: the choice

How to install a lock for the gate of the corrugated their own hands? Which castle is better to prefer? What tools will be needed when doing this work? Let's try to figure it out.

What are the signs to choose a castle? And how to install it?

Lock requirements

To understand what kind of lock to put on the gate of corrugated board, first we formulate our wishes.

• The lock should be as fault tolerant as possible, not afraid of dampness and dust. In this regard, lever locks are more advantageous (with beard keys that displace a set of figured plates inside the body).

Pay attention: if water gets inside and the temperature drops below zero, ANY lock will freeze, regardless of the design.

• It is desirable that the lock on the fence of corrugated opens and closes from the inside without a key. At the same time, the lock closed from the inside must be opened with a key from the outside.

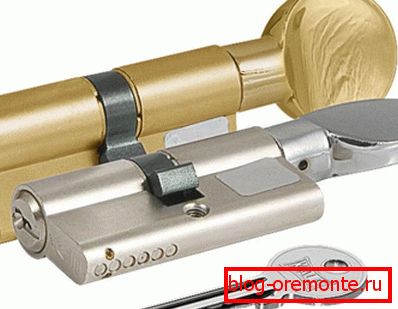

The cores in the photo work that way. However, the general lack of cylinder locks is sensitivity to dust and other contaminants.

• In addition, locks for wickets from corrugated sheets should be compact enough by definition: for massive and extremely reliable structures, for example, there are garage sectional doors with a wicket. Extreme reliability in our case is simply meaningless: if an attacker is VERY willing to enter our yard, he will simply cut or cut through the thin metal of the profiled sheet.

The price of a quality product with the listed characteristics usually fits into 600-800 rubles. Only electromagnetic and electromechanical devices are significantly more expensive; However, such locks on the gate of corrugated flooring set quite rare. Nevertheless, the material implies some budget construction.

Both overhead and mortise constructions are equally suitable for our purposes. Of course, the tie-in of the lock into the gate from the corrugated board in these cases is very different.

Installation

So, it is given: the gate for a fence from a professional flooring is welded, hung out on canopies and sheathed by the pro-thinned-out sheet. Welding at our disposal; there is also a little three millimeter steel sheet. In addition, you should get a drill from the bins, a grinder with a cutting wheel for metal, a square and a scribe (any sharp object made of tool steel will fall for its role).

Scriber on metal factory production.

Overhead

How to put an invoice lock? The instruction is very simple, if at the height of the lock (usually 90 centimeters from the ground) the cross member is welded.

1. Attach the lock on the inside so that one of the mounting holes falls on a horizontal shaped tube, and the core and handle are lower or higher. Mark the future holes in the frame and the notch under the bolt. If the pillar near the gate is not wide enough or is made of a round pipe, you will have to weld a plate or a corner under the counterpart of the lock.
2.  Drill holes - in the frame for fasteners, in the turnkey profiled sheet and, if necessary, under the handle. The hole in the professional sheet is drilled along the contour and leveled with a roller. In the same way is the groove under the bolt in the post.
3. It remains only to secure the lock and install the core, handles and lining.

Tip: you have a problem with how to put nuts on the threads of the bolts on the other side of the frame. Professional sheet will interfere. There are two ways out: if it is fixed on the screws, you can partially or completely unscrew them and then re-fasten; in the case of rivets, it is easier to use metal screws for fastening the lock. It is clear that in this case it is not necessary to drill holes for fasteners.

Another way is to drill holes of a smaller diameter and cut threads under the threads with a tap.

If the crossbar is located at an unsuitable height, the installation of a padlock in the wicket door of the corrugated board will require welding of an additional plate under it.

Mortise

How to embed the lock in the gate of corrugated?

In case the wicket frame is made of thin pipe (for example, 20x40)The only way out is to weld a box made of steel ,, under the lock. Its dimensions should leave above all the minimum lateral gaps between the walls and the lock body. The material is 3 mm steel.

From the end of the gate, a slot for the bolt is selected and the holes for the fastening screws are drilled. It is desirable that they are beyond the limits of our box, otherwise we will again be faced with the inability to screw the nut onto the screw thread. In the box, on both sides, the key grooves are selected (or under the entire core).

The counterpart is mounted on the pole; as an option - directly in it is chosen a groove under the crossbar.

Of course, it is possible and such installation of the lock in the gate of corrugated board. However, it can not be called accurate; besides, the mechanism will be open to rain and snow.

Finally, it is worth mentioning the most, so to speak, civilized script.

On sale for a long time you can find special mortise locks for gates from corrugated board. They differ in the minimum width and are intended for installation in a profiled pipe with a size of 40x40 millimeters.

This narrow-profile lock is designed for a professional pipe with a size of 40x50 mm.

Lock insert is simple and does not require the use of welding.

• After marking at the end of the gate, a groove for the body is selected. The grinder makes two vertical cuts and one more - on the diagonal of the future rectangle; then the resulting triangles are bent out and cut off. The edges are aligned with the file.
• In the side surfaces of the drill are drilled holes for the screws and core.
• For marking the mate of the castle, you can use a little trick. Smear the crossbar with toothpaste, putty, or any other colored thick substance. Then, with the gate closed, turn the key - and on the pole there will be a clear imprint of the place where the groove should be.

After all openings are selected, it remains only to fasten the lock with screws - and the work is completed. But how to install a fence from a professional sheet? Read about it in other articles on our site.

The result of our work.

Conclusion

The video in this article will allow you to see live all the stages of work. Successes in construction!
