Reinforced concrete fences - types, design features and

Nowadays, fashion for country houses does not subside, because this is a way to rest from a big noisy city, enjoying tranquility and harmony with nature. And in order to feel comfortable in the country, you should protect your possessions with a reliable structure.

And reinforced concrete fences - the best option.

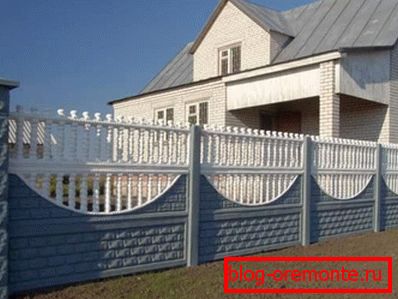

The photo shows a decorative reinforced concrete fence.

Such hedges are:

• Sturdy;
• Reliable;
• Durable;
• At the same time they can boast of originality;

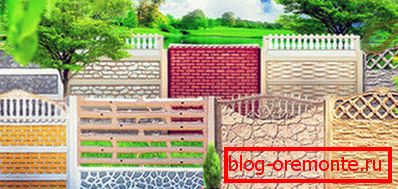

Under the brick, under the tree ... choose!

• Easy to install;
• And the price of these designs will be a pleasant surprise for all those who want to save.

Due to its high performance and accessibility, such fences are a very interesting option for fencing a private house.

Reinforced concrete - durable and reliable material

Reinforced concrete is a durable material used in the construction of multi-storey buildings. However, for a long time, reinforced concrete fences, which protect both private property and protected objects, including construction sites, car parks and factories, became very popular..

If in the first case we are talking more about decorative fencing, then the protected objects use massive slabs, the installation and dismantling of which are carried out using specialized equipment. Such structures include reinforced concrete fence software 2.

Section of the independent fence.

The structure of a reinforced concrete fence of any kind is the same: the metal frame is poured into strong concrete. In this case, the frame prevents the destruction of the concrete base, which gives the structure durability and durability.

Installation of an independent fence

Self-contained fence is a very simple design. Nevertheless, it is impossible to install it yourself without the presence of special equipment. The fact is that the weight of one slab of such a fence is about two tons. Therefore, without a tap can not do.

Such a large mass of elements and allows them to maintain a vertical position under the action of its own weight, without the use of any adhesives and pillars.

Based on the design features, the independent hedges can be divided into two types:

• Actually self-contained, which are installed without any support.
• Installed on glasses. Glasses are supports for the plate. This installation takes place in two stages:
  • Based on the size of the plate, glasses are installed. For this, it is necessary to make an accurate marking so that the section fits into the grooves of the glasses.
  • Plates are placed on the glasses. In the event that the plate is not installed firmly enough - it is necessary to install wooden supports in the glasses.

Installation of reinforced concrete decorative fence

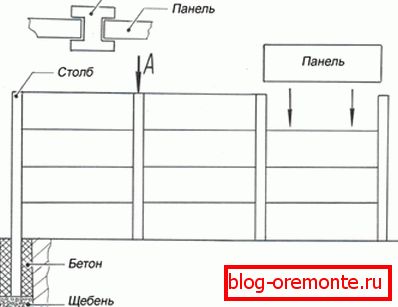

Installation scheme of type-setting fencing.

Reinforced concrete fencing is the most common type today.

Tip! For the installation of sections, it is desirable for you to attract at least one assistant, since the weight of one section is from 55 to 70 kg, therefore it is better to be safe when installing.

Decorative typesetting fence consists of 3-5 horizontal plates stacked on each other, fixing themselves in the grooves of the pillars. The installation process itself is very simple, and even a beginner can handle it.

To date, there are standard forms for reinforced concrete fences, and therefore, regardless of the model, section sizes are 50 * 200 cm.

Speaking of pillars, it should be noted that they are of two types:

• National teams.
• Integral.

Depending on what type of support provides for the construction of a fence, and installation features change. We will consider both options.

Installation instructions for the fence with solid pillars:

1. Mark up the territory.

Tip! The easiest way to mark up is to cut a two-meter bar, measuring the distance with it. Measurements must be made exactly in the groove.

1. Installation must begin with a corner fence pillar. We dig a hole. The pole should sink into the ground at least one third of its length. It turns out that the two-meter support should go to the ground per meter.

Concreted support.

1. Expose the support level, fixing it with wooden supports.
2. Concrete it.
3. We perform all the above steps with the second pillar.
4. We carry out installation of the section. It just needs to be installed in the slots.

Tip! Sections should be installed gradually along the entire length of the fence, which will eliminate its bias.

1. At the corner should be installed perpendicular to each other two pillars.
2. Complete the fence design by repeating the steps of the instruction.

Installing a fence with precast pillars is somewhat more complicated:

1. We dig a hole 50 cm deep and 50 mm wider than the support on each side.
2. We install in the pit reinforcement a 10-12, which in length corresponds to the height of the fence.
3. Level the reinforcement and concrete the pit.
4. On the resulting concrete base set the first section of the column.
5. Concretes the internal space of the section.

Section team support.

1. Install the next section of the fence, building a pillar.

Tip! Each section should be concreted separately. The solution, therefore, will spread throughout the cavities of the support.

1. Install the second support.
2. We install the sections in the same way as in the above described method.

Tip! Upon completion of work, be sure to install a concrete cover on the pole. Thus, you can protect the solution from leaching, which will significantly extend the life of the fence.

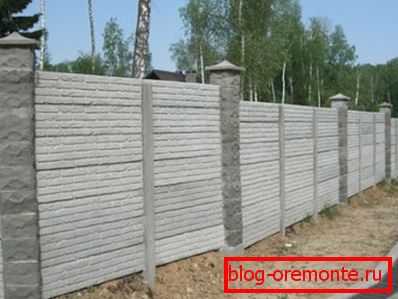

Sections mounted on precast pillars.

Conclusion

The fence is ready!

Today, reinforced concrete fence is the most popular type of fence. By combining sections with different patterns, you will be able to get a hedge of the original appearance. At the same time, such structures are distinguished by high strength and resistance to temperature extremes and precipitation, and therefore will protect your site for several decades.

In the presented video in this article you will find additional information on this topic.
