Panel fences: designs for the fastest possible assembly

One of the types of enclosing structures is a panel fence. At the same time for the construction of such fencing can be used a variety of elements, ranging from sections of welded mesh and ending with reinforced concrete slabs.

In our article we will consider the main types of panel fences available on the domestic market.

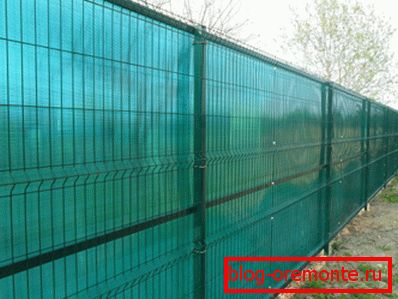

Metal welded sections - universal enclosing material

Modular fences

Mesh hedges

Fence panels are sometimes called modules, since their main feature is the ability to quickly assemble into a single structure. In this case, the module may consist of various elements, and therefore, planning the construction of a fence, you should familiarize yourself with the maximum possible number of offers on the market.

The most common, and at the same time, the cheapest option is welded mesh panel fencing.

They are used as an alternative to wrought iron fences, and have a fairly wide range of applications.

• The basis of such a fence is a grid of galvanized steel rods, interconnected by welding method. The thickness of the rod can be different, but the most commonly used blanks are from 3 to 5 mm thick.
• The rods are welded by spot welding at the intersection.
• To provide each section of a metal fence with mechanical strength, a horizontal V-shaped bend is sometimes added in the top or middle part (in the photo).

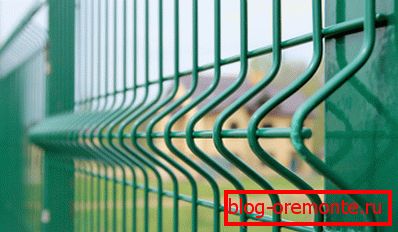

Stiffener

• Over the zinc layer on the grid is applied polymer coating. It not only protects the steel base from corrosion when exposed to precipitation, but also gives the fence sections an attractive appearance.
• Welded panels are mounted on vertical supports from a shaped pipe, which, like the net itself, are subjected to anti-corrosion treatment. Support columns can either be concreted in the ground, or (if the fence is installed on asphalt or concrete), they can be fixed with the help of anchors and a special bracket.

Mesh sectional fences are used for fencing of private households, industrial enterprises, pens for livestock or poultry, as well as for equipment of sports fields. Extensive nomenclature of welded sections allows you to choose the model that best fits the task of fencing.

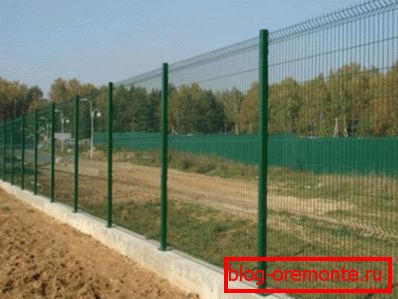

Installation of panels on the strip foundation

Tip! If you decide to mount a sectional fence with your own hands - we recommend that you carefully study the video in this article, as well as practical tips in other sections of this site. Despite its seeming simplicity, the installation process has a number of nuances that need to be taken into account.

Concrete Fence

The second most popular type of panel fencing are concrete fences.

They are quite common, and therefore we confine ourselves to a description of their main types:

Self-standing slabs

• Self fencing - installed on special supports, which are an integral part of the plates themselves. There is no need to carry out preparatory earthworks, and the fence can be assembled in a few hours.
• Fence "on the glasses." The design of this type of concrete modular enclosures includes special hollow pedestals - the very “glasses”. The bollard is placed on a flat surface, after which a support pole is inserted into its opening.

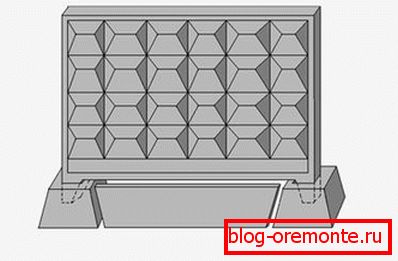

The design of the "glasses"

• Hedges on pillars. Installing a fence made of reinforced concrete panels using this technology is the most time-consuming since the plates are attached to poles embedded in the soil to a depth of several dozens of sentiments. At the same time, this design is much more reliable than the previous ones.

Tip! For concreting support pillars, cement with hydrophobic additives should be used, eliminating the accumulation of moisture in the concrete.

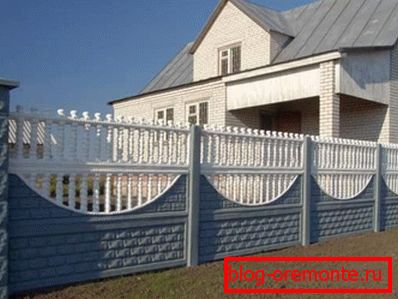

Decorative fencing

The main advantage of these structures is the highest mechanical strength. The disadvantages include an unattractive appearance and considerable labor costs during installation.

Metal Sandwich Fences

Another type of panel-type fencing are sandwich panel fences. Besides the fact that they have excellent protective characteristics, these designs also perfectly isolate the fenced area from loud noise.

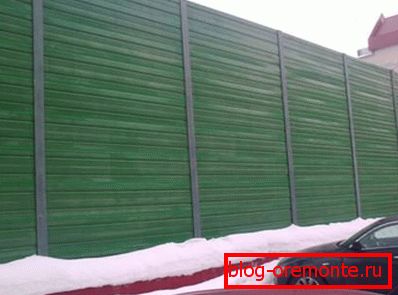

Soundproof sandwich fence. Pay attention to the height!

The fence of the sandwich panels can be installed around the school, around the perimeter of the dacha plots, etc., but most often such fencing is erected along highways.

Note! For maximum effective sound insulation, the construction height must be greater than the average height of the truck. In this case, the sound waves will be absorbed almost completely.

The basis of such a fence are sandwich panels for the fence of a special design.

There are several types of them:

• Frame modules, the inner lining of which is made of galvanized steel. Mineral wool with separating layers made of fiberglass is used as a filler. The outer part is perforated to reduce the number of reflected sound waves.

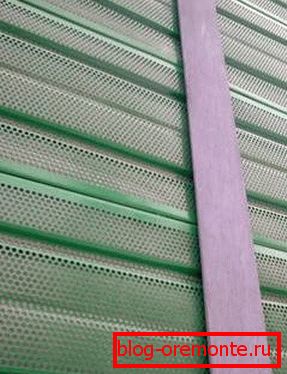

Perforation of the outer layer

• Modules with polyurethane foam filling and perforated casing. They are distinguished by a somewhat higher price, but they last longer than mineral wool panels.
• Three-layer modules filled with polystyrene foam or basalt wool. Such modules can differ both in thickness and in the placement of sound-absorbing materials, and therefore have the widest possible range of applications.

Advantages of modular fencing

Fences, assembled from individual plates, sections or modules, have a number of advantages:

Fast installation - one of the main advantages

• First of all, they include manufacturability: the modular enclosure is quickly assembled, and if necessary, it is also quickly dismantled.
• Also, an advantage can be considered the opportunity to purchase structural elements immediately, without waiting for their manufacture according to your size. In some situations, this is a significant advantage.
• The interchangeability of elements is also very important. When the intake panel fails, you can simply purchase a similar part and replace it. If you have instructions and do not require specialized equipment, then the task is not difficult.

The operational characteristics largely depend on the type of fence and the material from which its sections are made. But a wide range makes it possible to choose - and this is also an undeniable advantage of prefabricated structures.

Conclusion

Panel fence is an excellent solution in the case when you need to build a fence with minimal time costs. But at the same time, in terms of their characteristics, these structures are almost as good as fences of other varieties.
