Metal profile for the fence - the work of the extra-class

Before understanding the tricks of the construction of fences, we learn what a metal profile. Metal profiles for the fence are steel bent sheets with wavy or trapezoidal corrugations. They are produced on special profile-bending machines, used in construction and other business areas.

Sheeting sheets

Metal profile - the ideal material for the construction of the fence

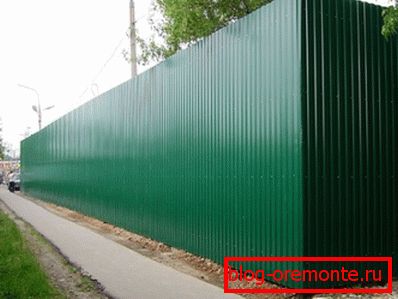

Smooth and reliable fence of corrugated board

The most common use of metal profiles are fences. But why for them use professional flooring?

Metal fences of corrugated flooring are high-quality and durable structures that can be built in a short time. Due to the "opacity" of the material, you can easily isolate your site from unwanted eyes.

The price of the metal profile is quite low, which makes the material affordable and attractive even for the average client.

Note! In order to build a fence of metal profile, you do not need to have a building education and special qualifications. It is enough to refer to our instructions and watch a couple of video materials.

Production

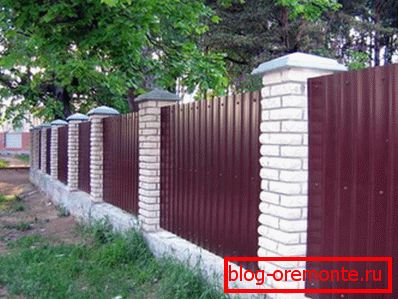

The fence made of metal profiles and brick pillars is a very attractive solution.

For the production of metal profiles, galvanized steel is used according to GOST R 52246-2004, GOST 14918-80, EN 10326, EN 10147, as well as steel with polymeric coating polyester, which is applied by the roller method in special units of continuous operation.

What is a polymer coating? At its core, it is a film that is formed using high-molecular compounds on the surface of rolled sheet steel.

A coating is formed during hot drying and applying a paint-and-lacquer coating method (protective enamels, primers, etc.). Thanks to painting, the steel becomes more protected from climatic and physico-mechanical damage, and also has excellent decorative properties.

Why do many of our fellow citizens choose the metal profile fence?

There are several reasons for this:

• The optimum ratio of price and quality;
• Ease and speed of installation;
• Attractive, not spoiling the landscape, the appearance of the product;
• Safety of operation and durability of the material;
• An opportunity to combine with various types of columns (metal, stone, brick).

When purchasing corrugated flooring, experts recommend purchasing in the same store:

• Paint in cans of the same color with the profile;
• Metal screws;
• Prozhiliny and pillars;
• Missing tool for you to install the fence.

Complete set of a fence from a metalprofile

If it seemed to you that only posts and profiled sheeting are required for installation - you were deeply mistaken.

Now consider a detailed list of components for the new fence:

• The columns are 60 × 60 mm, the length of which is not less than 3 m. The pipe can be ordered already cut, with a welded (in the upper part) plug, which will protect the columns from the ingress of excess moisture and other precipitation.

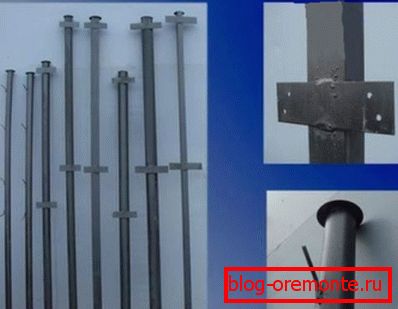

Metal poles

Attention! It should be remembered that before installing the pillars, they must first be primed.

• Prozhilin - represent metal cross-pieces of 20? 40 mm and about 3 m long. Are made of a profile pipe and also grounded;

Prozhiliny

• Profiled - you can order sheets of any length, color, with a polymer coating or galvanized (see photo);

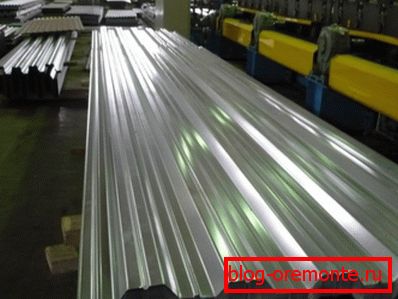

Galvanized profiled

Decking with polymer coating

• Screws for metal - here you can make your own choice. In most cases, experts use self-tapping screws with a cross section of 4.0 × 80 mm (caps in the color of professional flooring);
• Fence bar - made by hand from the same sheeting. Necessary in order to give your fence shape and finished look;
• If your fence will have brick pillars, you should purchase masonry bricks and special caps mounted on the "tops of the pillars" in advance;
• Bulk materials: sand, cement, crushed stone.

In order to make a high-quality fence with rigid design characteristics, we recommend that you familiarize yourself with the following scheme:

• Installation of gates and gates of corrugated flooring includes the installation of additional pillars and prozhilin;
• Installation of pillars and veins of non-standard sizes;
• For the fence with a strip foundation and brick pillars, you can make sills and boxes according to your own sketches.

The scheme of the fence of corrugated

Recommendations from the pros

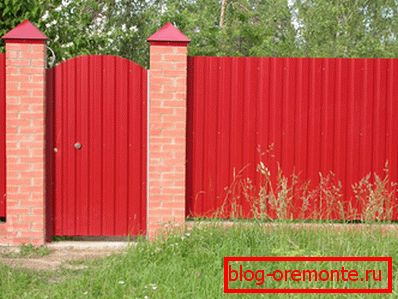

Neat and harmonious fence of corrugated, brick columns and steel plugs

In order for the fences of the metal profile (wherever they were erected by you) served for a long time, during their installation, you should follow some recommendations that we will now acquaint you with:

1. The first and perhaps the most important trick - the correct installation of the pillars. The step between them should not exceed a distance of 2.5 m. Experts recommend to bury poles to a depth of 1200 mm, but here, too, it all depends on the type of soil on which your house is located (plot, cottage);
2. At the installed (tamped and filled with concrete) poles by welding we fasten the stitched. In order to make the fence more reliable, it is recommended to weld 3 veins on one section;
3. Installation of a professional flooring. Overlapped sheets overlap, on one wave. The recommended distance from the ground is 100–150 mm, since spring melt water adversely affects the metal;
4. Fastening of a professional flooring is carried out by means of rivets or self-tapping screws. Builders recommend to fix profiled through one wave (on average, you will need about 13-15 pieces per sheet). When using special screws for metal, you do not need to pre-drill holes;
5. After the end of the main installation work on the construction of the fence, you must install a special fence bar (purchased or manufactured independently). Why is it needed? It is unlikely that you will be able to mount the fence in such a way that the top line is perfectly flat - this problem can be avoided with the help of the fence fence.

Finally

That's basically all that a novice builder needs to know. We hope that our instructions will help you in this fairly simple, but nevertheless responsible work (see also the article Building a fence from corrugated flooring with your own hands, the summer resident's guide).

If something is wrong with you, then it is better not to spoil the construction material and seek help from friends or professional builders. Successes!
