Gitter mesh fence is an inexpensive but reliable solution

26-04-2018

Fence

Strict and solid fence

Gitter welded mesh is a modern alternative to the well-known and outdated Rabitz. Today, it is the most popular material used for fencing construction projects, municipal and industrial enterprises, private houses and cottages.

By design, the fences from the Gitter grid are not very different from their predecessors, but thanks to innovative technologies such qualities as durability, reliability and durability have become much higher. It is necessary to note one important detail in the structure of the Gitter grid: unlike most similar fences, it has a relief, as you can see in the photo.

Therefore, it is also called 3D fence. What gives relief? It greatly improves the performance of the fence.

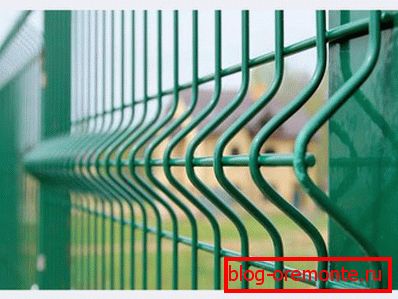

It is very clearly visible distinctive feature - relief

Design features

Gitter mesh (translated from English - "lattice") is a welded section (also called a "card") of galvanized steel wire, which is coated with electroplating, powder or polymer coating for corrosion protection. Wire diameter can be from 3 to 5 mm. The standard size of one welded section is 2.5x2.0 m. The size of each cell is 50x100 mm.

Note! Managers of companies that implement the sale of the grid and components, if necessary, are always ready to go to a meeting and order a product of individual sizes for the client.

The entire wire in the welded section is welded to each other, thereby achieving maximum reliability and durability of the entire structure. Plus, each section has 4-5 stiffeners, which allows it to always maintain its shape.

The fence from the grid Gitter can be any color solution, it all depends on your wishes. This makes it possible to install sectional fences almost everywhere without worrying about the violation of the overall design.

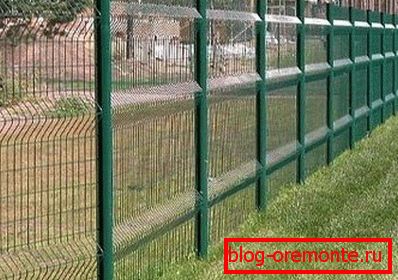

Very robust design

For the construction of such a fence in addition to the grid itself will require:

metal pillars of the profile tube, painted in the color of the grid;
fasteners (metal brackets or clamps);
plugs or special nozzles to protect the pillars from moisture.

Types of fences Gitter

Despite the fact that these products appeared not so long ago on the Russian construction market, they have already managed to gain a solid reputation, especially among owners of private houses and summer houses. In addition, the fence Gitter is ideal for various complexes, guarded parking lots, schools, hospitals and other institutions.

Gitter "Country"

Country option

Specifications:

fence height - 2 meters;
way of installation of columns - dot concreting;
a step of columns - 2,5 running meters;
installation of the panel is carried out using roofing screws through the bracket;
the entire perimeter fence is primed.

Required materials:

pillars - profiled pipe 60x40x2 L-3.0 (running meters);
welded mesh with 4 stiffeners, 2 m high, 2.5 m wide, each cell size 50x200 mm, wire diameter 3 mm, polymer coating (RAL colors);
fastening - roofing screws 4,2x19 (4 pieces for 1 pillar);
plastic caps (1 piece per pillar);
bulk materials - cement, sand, crushed stone.

Attention! Usually, manufacturers or those who implement the Gitter grid and components for it, indicate the cost of only materials. All the work on the construction of the fence you do with your own hands or pay extra for the work of specialists. It should be noted that the price, both for materials and for the delivery and installation services, is very pleasant.

Gitter "Industrial"

Specifications:

fence height - 2 meters;
way of installation of columns - dot concreting;
a step of columns - 2,5 running meters;
transverse parts - 2 pieces for each span;
installation of the panel is carried out using roofing screws through the bracket;
the entire perimeter fence is primed.

Required materials:

pillars - profiled pipe 60x40x2 L-3.0 (running meters);
cross-beams - profiled pipe 40x20x2 L-2.5 (running meters);
welded mesh with 4 stiffeners, 2 m high, 2.5 m wide, each cell size 50x200 mm, wire diameter 3 mm, polymer coating (RAL colors);
fastening - roofing screws 4,2x19 (10 pieces per 1 running meter);
plastic caps (1 piece per pillar);
bulk materials - cement, sand, crushed stone.

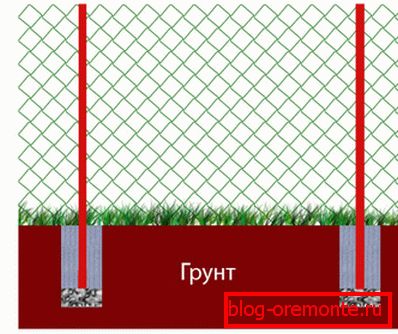

The figure shows the principle of fencing

Gitter "Regime"

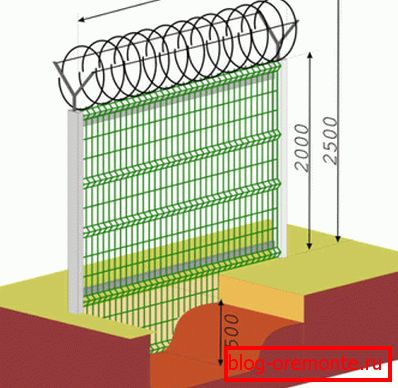

Mode option

Specifications:

fence height - 2.5 meters;
the depth of the so-called "antipod" - 0.5 meters;
way of installation of columns - dot concreting;
a step of columns - 2,5 running meters;
crossbars - 2 pieces for each span;
panel installation - steel U-shaped clamp;
the safety barrier "Egoz" is mounted on the "Y" brackets through the stretched wire (at least 8 spirals for one span);
the entire perimeter fence is primed.

Required materials:

pillars - profiled pipe 60x40x2 L-3.0 (running meters);
cross-beams - profiled pipe 40x20x2 L-2.5 (running meters);
welded mesh with 4 stiffeners, 2 m high, 2.5 m wide, each cell size 50x200 mm, wire diameter 3 mm, polymer coating (RAL colors);
fastening - roofing screws 4,2x19 (10 pieces per 1 running meter);
plastic caps (1 piece per pillar);
bulk materials - cement, sand, crushed stone;
safety barrier "Egoza" d-500 mm (8 spirals for each span);
tensioners - steel wire, 2 threads;
brackets - Y-shaped h-500 mm (1 per pillar).

Hitter "Sports"

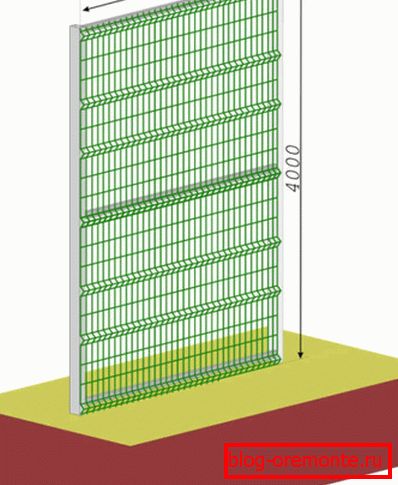

Sports option

Specifications:

fence height - 4 meters;
way of installation of columns - dot concreting;
a step of columns - 2,5 running meters;
crossbars - 3 pieces for each span;
installation of the panel is carried out using roofing screws through the bracket;
the entire perimeter fence is primed.

Required materials:

pillars - profiled pipe 60x60x2 L-5.5 (running meters);
cross-beams - profiled pipe 40x20x2 L-2.5 (running meters);
welded mesh with 4 stiffeners, 2 m high, 2.5 m wide, each cell size 50x200 mm, wire diameter 3 mm, polymer coating (RAL colors);
fastening - roofing screws 4,2x19 (10 pieces per 1 running meter);
plastic caps (1 piece per pillar);
bulk materials - cement, sand, crushed stone.

Positive qualities of Gitter mesh

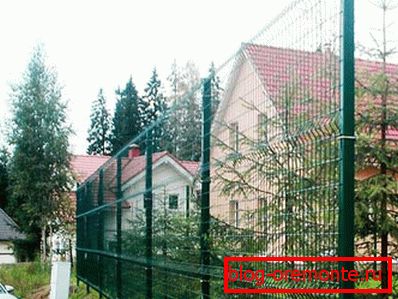

Rational decision of the enterprising owner

Of course, the gitter fence will be inferior in aesthetic characteristics to a wrought-iron fence or concrete fence with architectural delights, but, nevertheless, the advantages of the Gitter grid are difficult to overestimate, which explains the high demand.

So, its undeniable advantages:

democratic value;
quick and easy installation of fencing of welded sections;
durability (instruction manual says - from 30 years and above);
high strength of products due to additional stiffening ribs and relief;
excellent wind resistance, due to the quality of wire welds;
unpretentious care;
the ability to quickly replace damaged elements of the fence;
neat, strict look;
stylish and durable color solutions.

Finally

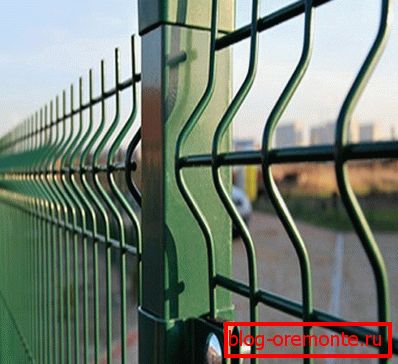

Even in the photo inspires confidence

Gitter Gitter demonstrates excellent technical performance and successfully consolidated in the modern construction market. The practicality and reliability of this material has been tested for years of effective operation (see also the article Fence of welded mesh - today we are not talking about a chain-link).

After all, with the help of such a fence, you can define the boundaries of any land plot, at the same time without separating it from the adjacent landscape. You can get more information about the Gitter grid from the thematic video material.
