Fences from a professional flooring - the most popular type

Fence profiled is becoming, recently, an increasingly popular material for the construction of fences. This is due to the fact that such structures are built very quickly and without any problems. In addition, corrugated sheets are practical, because do not require special care, serve for a long time (up to 50 years) and have an excellent quality / price ratio.

There is also the possibility, with a lack of financial resources, to order such a structure on credit.

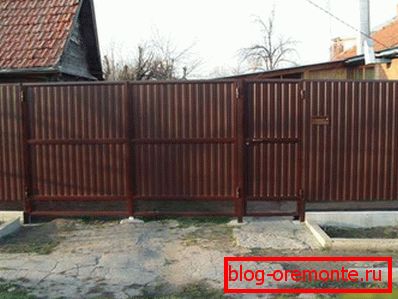

Such a fence is very practical and reliable.

You can purchase both ready-made fences, and assemble them yourself. By own strength to build such a structure is quite simple. Our article is dedicated to this.

What material to choose

Professional color sheet.

First you need to know what kind of material it is and what kinds of it exist.

What are profiled sheets

Decking is a building material intended for the construction of external fences, unloaded ceilings, roofs, walls. It is a metal sheet, produced most often from galvanized steel, less often from aluminum, copper, etc., by the method of cold rolled metal.

In the manufacture of material is profiled, i.e. it is given a trapezoidal, wavy or other shape. This increases the stiffness of the sheets.

Often, professional sheets are covered with polymer compounds or special paint. The color of such an external coating can be selected by the tables RR and RAL.

Decking on the fence is usually chosen wall. It is marked with the letter "C". These sheets have a small height of corrugations and not very large thickness. The advantages of this material are that it is very economical, easy to transport and convenient to store.

In addition to this - it can be used repeatedly, which is very valuable in the construction of temporary fences.

Stamps wall (fence) profiled sheets

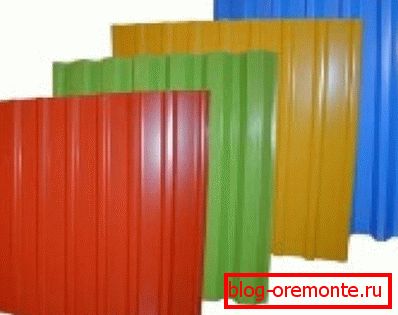

Professional sheets for fences.

At the moment, the production of such, most often used for the construction of fences, grades of corrugated board.

1. C-8 sheets. Used for the construction of fences and partitions, cladding ceilings and walls. They have a profile height of 8 mm, their full width is 1.2 m, and the working part is 1.15 m. The metal thickness is 0.4 / 0.7 mm.
2. Brand C-10 refers to the universal type. This is an excellent material for walls and ceilings, installation of partitions and fences. It can also be used as a roof covering in the construction of buildings that have a large slope of slopes on the roof. The height of the corrugations of such a flooring is 10 mm. The total width of the material is 1.18 m, the working one is 1.15 m. The steel has a thickness of 0.4 / 0.5 mm.
3. A fence with corrugated board will look good if it is made from sheets of a special brand MP-18. They have a sinusoidal corrugation in cross section. It has a height of 18 mm. The width of such sheets is 1.15 m, and the working part is 1.1 m. The thickness of the metal varies from 0.4 to 0.9 mm.
4. C-20 flooring also universal. From it you can make fences, partitions, suspended ceilings, roofing. The height of its corrugations is 18 mm, its width is 1.15 m, and the useful part is 1.1 m. Steel has a thickness of 0.4 / 0.8 mm.

Note! This brand has greater rigidity when compared with previous analogues. Because of this, fences and gates of corrugated flooring C-20 can have a height significantly exceeding 2.5 meters.

1. S-21 profiled sheets are both wall and high-grade roofing material. The corrugation of such a flooring has a height of 21 mm. The total width of the metal is 1.051 m, it is possible to work with a section of 1 m. The thickness of the material ranges from 0.4 to 0.7 mm.

Fence installation

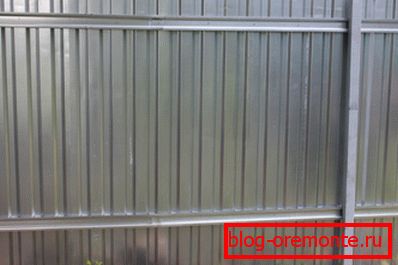

Option fence with sheets installed on its entire length.

The design of a fence from a professional flooring can be different.

The following options are most common:

• sheets are installed on the entire height of the fence: from the level of the soil to a predetermined height;
• the flooring is raised above the ground with the help of a concrete foundation or a side of brick connecting the supports.

The first method is more economical, because less building materials are consumed, in addition to this, the installation of the fence itself is simpler. The second option is more reliable, more aesthetic and respectable, although it will require large financial and labor expenses. We will give him an example of how to build fences and fences of corrugated board.

Fence with metal support posts

Drawing of the fence with supports from the pipes.

Before installing a fence made of corrugated flooring, you must first mark its position and make drawings. At the moment, when identifying plots, land surveyors, with the help of satellites, very accurately determine and then mark their corner points on the ground in the diagram. This is especially useful if the fence will be built on a site with a slope.

These points will be the corner landmarks during construction. By connecting two of them, you get one side of the fence.

Further instructions on how to mount this side of the fence (the other three are also done).

1. After marking you will need to install corner supports. Dig holes in given places and put poles into them to the required depth.

Note! In order for the fence to have good resistance to wind loads, it is advisable to dig supports 1/3 of their length. In order not to worry about the reliability, as well as the stability of the posts, after their installation and subsequent verification of the verticality in the transverse and longitudinal directions, pour into the pit in which there is a support concrete.

Pipes for fence supports.

1. As support columns you can use steel pipes with a square, circular or rectangular cross-section. The optimal height of the metal pillars for the fence is 2.5 / 3 m. At the cottage or garden plot, before you make a gate and a corrugated fence, you can use pressure-free asbestos-cement pipes with a diameter of 100 millimeters as supports. The length of such products is 3.95 m, so two columns can be made from them.
2. Next, install the formwork to pour concrete into it, which will join the supports. Its width can be chosen arbitrarily, but not less than 15/20 cm.
3. Then divide the entire length of this side of the fence into equal sections of 2.5 / 3 m and mark the location points of the posts.
4. Then pull the cord between the corner supports and install intermediate pipes on the marks. To make it convenient to work, pull the second cord underneath from the bottom. So you can put all the columns in a single plane. Bottom of supports position symmetrically with the same distance relative to the formwork box so that the support is exactly in the middle. Using a level or plumb line, set the pipes strictly vertically.
5. After this, with your own hands, pour concrete solution into the formwork and wait until it hardens.

Note! At this time, it is recommended to check the final verticality of the pipes in the transverse and longitudinal direction. In addition - make sure that they are all in the alignment of the fence.

Mounting lag.

1. Now you need to attach to the supports transverse (horizontal) logs for fixing sheets. In their quality you can use profiled pipes with a cross section of 20? 40 mm. The lower plank should be located at a level of 20/25 cm from the ground or from the upper surface of the side. Fix the upper lag at a height of 1.5 / 1.7 m. Fix the lag by welding.
2. After that, you can begin to fix the flooring. As fasteners use roofing screws-screws for metal. Now there is an opportunity to choose their colors to match the profiled sheets.

Fence with brick supports

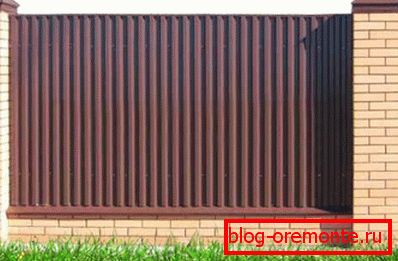

Fence with brick pillars.

This option - the most beautiful fence of corrugated board. In addition, it is also practical, although its construction will cost more. Such a fence, with a wicket and a gate, will look great around a private residential building or cottage.

Further, how to make such a structure.

1. First of all, you need to make a draft fence.
2. Further, in accordance with it, mark the position of the fence and assemble the formwork to build the foundation for the fence.

Note! The foundation must be reinforced reinforcing cage. This is due to the fact that the weight of the brickwork of the pillars and lintels between them is significant. Therefore, over time, the base may crack or burst.

1. Constructing the fence and the gate of corrugated, where there will be support, release the valve vertically upwards. It will play the role of a metal frame for brickwork.
2. Next, lay the brick supports, as well as lintels between them. Note that in an uneven area, their height from ground level may be different. The main thing here is that their upper planes coincide horizontally. Do not forget the bottom, at a height of 20/30 cm and above, retreating from the ground level of 1.5 / 1.6 m, immure with the release of steel mortgages for the subsequent fixation of horizontal lags. When constructing pillars, constantly check their verticality with a level.
3. A further stage of work, when fences and fences from profiled sheets are mounted, is welding to the horizontal bars of the mortgage. On them the flooring will fasten. At this stage of installation, paint all metal elements of the future fence to protect it from precipitation. Otherwise, they will start to rust.

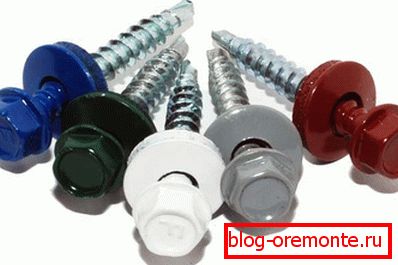

Roofing screws.

1. Now, as shown in the photo, it is necessary to fix the sheets on the horizontal lags. This can be done with roofing screws or using staves. In the latter case, drill through profiled sheeting and lag. Then zaklepochnik fix the sheet to the metal strip.

Such a cap will protect the brick pillar from precipitation.

1. To protect brick pillars from precipitation, place covers on top of them. The gate on the fence of corrugated board is also necessary to protect the eaves.

Fence decoration

There are a lot of opportunities to make a fence out of profiled sheets more aesthetic.

1. It can be decorated with wrought iron elements of various forms - from classic decor to geometric and abstract patterns. You can order a whole ensemble of forging on any topic that you like best.
2. Another way to decorate a corrugated fence is to supplement it with fence strips of rectangular cross section. Having fastened them to the upper edge of the sheets, you will get an aesthetic and complete look of the fence as a whole.
3. Thanks to the plasma type of cutting, it became possible to perfectly process the metal. If you choose this type of decoration, the masters will cut out on your fence, after making a sketch, any ornaments, patterns and elements of any degree of difficulty.



   Fence with a pattern.

4. You can decorate the metal structure with pictures. They can have the most different stylistic orientation and plots. There is the possibility of applying to the fence and reproductions of works of art. A wide range of shades will make it possible to give a unique construction to this structure. Special front paints will not lose their saturation from the action of sunlight and precipitation. As seen in the numerous videos, you get a kind of art fence. In cloudy weather and in winter it will delight you with its colorful, and in summer it will perfectly fit into the design of the site.
5. As already described, the metal fence can be decorated with supporting pillars of stone or brick. They will give the fence visual reliability and durability.

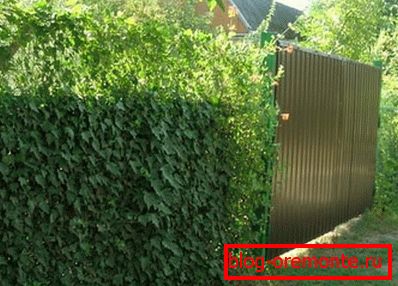

   Fencing with landscaping.

6. Many owners of country sites planted climbing plants along the fence. Only the gate and the entrance gate remain free of them. This additionally creates a green zone. It looks very attractive and lively.
7. Some of summer residents decorate the top of their fences with vases and flower pots, as well as with diverse rural elements: watering cans, birdhouses, decorative buckets, etc. They carry the unique charm of the now popular country style. Such beautiful fencing can be very practical. For example, their interior can be equipped with shelves to store different household equipment.

In the end, it should be noted that each of these ways to decorate the fence is good in its own way and carries some semantic load. Do not be afraid to give free rein to your imagination and imagination. In this case, the constructed construction of profiled sheets will please you for a long time.
