Fence of rods: features of the material and installation

The perfect harmony of aesthetics, cost and strength is provided only by a fence made of metal rods. It is with ease that it will adequately carry all the loads: mechanical, temperature and constant humidity.

And unlike its traditional counterparts - scribbled wooden sticks, such a fence is more durable and reliable many times, and its elegance is much more effective.

Original bar fences fully comply with all the qualities of metal structures.

Such fences are built on the same simple principles as fencing of pipes, profile. By the way, craftsmen, as a rule, decorate these fences with stylish decorative details that favorably present the luxury and refinement of bar weaving.

So experts successfully bring the openwork pattern of rods in their beauty to the expensive wrought fence.

Welded bar fences

How to weave such a fence beautifully and securely? In its manufacture, it is necessary to adhere to a simple technology: carefully connect each joint, carefully process the welds and a variety of attachment points of elements.

Benefits

The accompanying instruction to the steel bar fence made at the factory calls its important advantages: the unique strength of ordinary or alloyed steel in a combination of aesthetics and durability.

• This inexpensive fence will ennoble your manor by taking it into a graceful, almost aerial, but impregnable frame. He will welcome the sunlight to the plants without causing the slightest shading.
• But the main success of the material is its absolute plasticity: we can create an incredible variety of decorative forms from steel rods.
• All designs of these fences are simple to manufacture, and we will not be puzzled by the question of how to weave such sections. It is also easy for us to install ready-made spans by welding or fasteners.
• Such welded spans are very reliable, and the low price complements the list of their advantages.

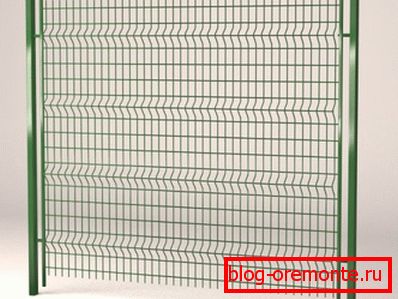

Reliable and decorative fences-lattices

Decorative features

• The top of the fence designers suggest making relief, convex or concave.
• Above the sections, the endings of vertical rods, curved, wedge-shaped or flattened, sometimes rise (additional protection).
• Decorative elements: picturesque leaves, playful curls, rich ornament magnificently ennoble the fence, while maintaining its transparency.
• Fence bars are only suitable for round or square.
• Moreover, the round rod is simpler for welding the sections with your own hands - it takes less time to try on, keeping it in the right position.
• But we can make an elite class fence from a square element, which is not inferior to its respectable forged counterpart, although we will spend more time on its construction.
• A round rod with a diameter of 10 to 18 mm, and a square one, from 12 to 18 mm is most suitable for welding them into sections. Specify that the round bars cheaper square by 20%.

Rods for sections

Note! The replacement of the rod with a profile tube with a section from 20x20 to 27x27 mm will significantly facilitate and reduce the cost of the fence construction. But for bending, forging only rods are suitable; By the way, the high susceptibility to corrosion of pipes is also not in their favor.

Installation of the fence section

Panels give greater rigidity to horizontal V-shaped bends.

3d fencing

Modern firms offer their customers visualization of the fences produced in 3d programs. This gives a pictorial image of the landscape, framed by a fence of a particular species.

The resulting picture of the fence of twigs of various configurations and decor is understandable to the customer, because it represents the design from all angles and in all projections.

• The configuration of fastening the rods in the frame is varied: vertically, lattice and other original methods with welding of decorative parts. The distance between the elements does not exceed 20 cm, and the panel itself is no more than 2.5x3.0 meters.
• Factories produce canvases from galvanized rods with a size of 2430 x 2480 mm with a cell of 200 x 50 mm.
• Durable polymer paint, double horizontal five-millimeter rods and vertical four-millimeter, ending with pins make the territory impregnable, but very modern and beautiful.

Note! Anticorrosion coating of such a fence is necessary if the frames and pillars are not galvanized or without a high-tech polymer coating. And on the supports - the pipes should be stubs.

• Excellent strength data of such sections assume installation of video cameras, alarm systems on them.

Section production

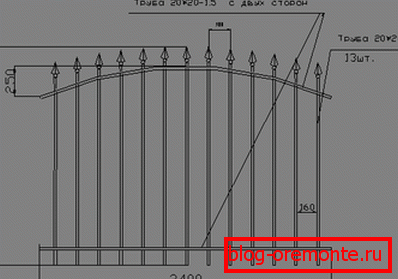

On the photo - section diagram

1. We will make a frame from a corner or from a small shaped tube.
2. Then weld each 15 cm vertical rods. By increasing this step, the bars can be bent and penetrate beyond the fence, and reducing the distance will make the fence ugly.
3. We made a grid - the base for all horizontal connecting rods. The clarity of the picture depends on their proper location. We can even slightly bend the horizontal bars in the places of their contact with the vertical ones or deform them by forging.
4. Now the fence of welded rods is ready for mounting to the supports - by welding, we attach the sheets to the metal fence posts.

Independent installation of sections

From a special tool, only the grinder and necessarily the welding machine are needed. A set of patterns for bending steel rods is also useful.

Action plan:

1. Creating sections of steel rods on metal corners or strip. It is the sectional construction of the fence that will greatly speed up its installation.
2. Laying of the foundation tape, columnar or combined, depending on the density of the soil and the weight of the metal fence construction.

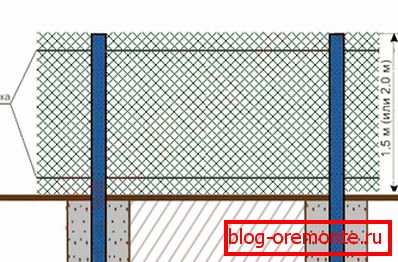

   Supporting structure for rods fencing

3. Good-quality rectangular pillars of 60x40 mm with polymer protection serve to connect the fence sections.. And there are such supports with a square base for anchoring or an elongated three-meter pillar for concreting and with 8 clamps for sections.

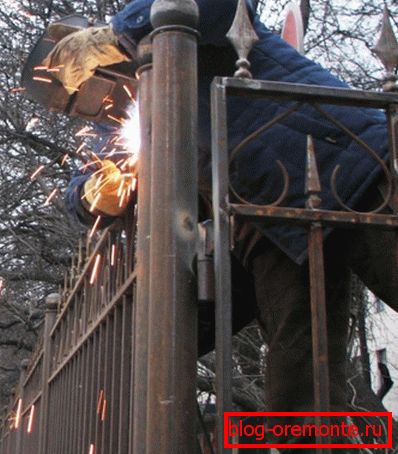

Weld sections to supports

• The image of fences in 3d is necessary for the correct choice of construction.
• Also competent installation, reliable fixing of sections on support is also important: we weld fences from a metal bar in the form of a lattice on sections.
• In addition, this metal fence has a significant weight, and therefore, needs a solid capital foundation and supports. After all, such a metal fence should remain indestructible under the onslaught of elements.

Conclusion

Owners of cottages and cottages prefer a strong, durable and attractive bar fence. The availability of its construction, transparency, beauty, reliability with a low price annually increases the number of customers.

We will also consider the feasibility of this option of the fence, and in the presented video in this article we will find additional information on this topic.
