Evroshtaketnik fence: modern fencing of your possessions

To date, there has been a particularly increased interest in European class fencing. They are universally established both in private ownership, and on various objects. Means - fences from the euroshtaketnik.

Such fences enclose the territory of public and administrative buildings and facilities, warehouses and industrial enterprises, summer cottages and other private property. Let's take a closer look at this direction.

Evroshtaketnik - modern fencing materials

What is a fence of evroshtaketnika

The essence of evroshtaketnika

Evroshtataknik is a shaped metal strips, covered with a protective layer of polymer (decorative). This material is endowed with a number of advantages, among which the low price of finished products stands out..

In addition, it is worth highlighting:

• high practicality;
• presentable appearance;
• ease of installation;
• durability.

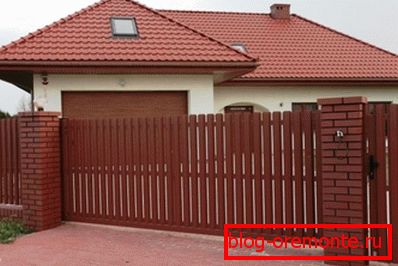

The eurofence picked up on color of a metal tile very effectively looks

In the production of steel used 0.5 mm thick, very high quality processing:

• zinc - 275 g / sq. m;
• primer;
• polymer coating - 25 microns (single or double sided).

This ensures the above-indicated durability and warranty (at least 10 years) for the polymer coating (its uniform fading).

Shtaketnik produce rolling method:

• sixteen profile bends provide reliable rigidity;
• the upper part, cut with a stamp - looks classic.

Metalshtachnik is an excellent alternative to a professional flooring and wooden fence, surpassing them in aesthetic and high-quality properties. With proper installation, such a fence will serve you for a long time, pleasing the eye with originality of performance.

The profile made of galvanization with a protective and decorative polymeric covering

Material properties

• Fences from a metal shtaketnik practically will not demand from you additional leaving at operation;
• This material is absolutely resistant to aggressive environmental influences;
• Metal battens with the same sizes with wooden ones are much lighter than the latter;
• By service life: this material is designed for 20-30 years of trouble-free operation;
• In addition, a similar fence at any time (if desired) can be repainted according to your own understanding, or supplemented with all sorts of decorative elements.

Know Euroshtaketnik strips possessing increased strength - remarkably withstand strong winds, while having the ability to bear the burden of an additional character. Such a fence is almost impossible to damage or break!

Types of intake tips

In the photo above - the first two options for special cases, because it is recommended to use them at a height of at least 180 cm due to the special risk of injury.

On the fences of this material it is possible to mount:

• lighting systems;
• alarm and video surveillance - without worrying about reducing the load-bearing characteristics of the structure.

It often happens that fences of this kind are equipped with pointed tips, which greatly increases their protective qualities. Additionally, for the insurance, instead of fasteners use anti-vandal bolts-heads.

Design and material for the fence

By design, the fence - evroshtaketnik consists of:

• load-bearing area (posts);
• metal picket fence - enclosing area.

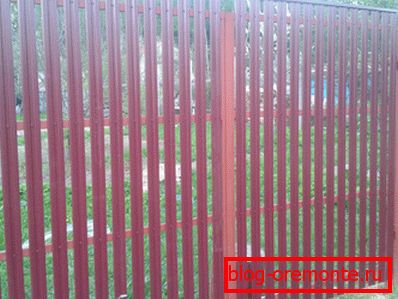

This photo shows profiled supports - the most acceptable variant of the bearing part of the fence.

The carrier area is the pillars between which the fence itself (the enclosing area) is held.

Poles can be made from:

• bricks;
• concrete;
• metal.

The latter option is the most acceptable, because it is the metal (pipe 60 x 60 or more) the most durable material. In addition, it is less labor intensive and cost in comparison with the above materials for the supports.

Tip! Choosing a specific brand of metal pipe for the bearing part of the structure, one should proceed from the characteristics of its enclosing part. The power of the support should depend precisely on the weight of the enclosing part: for a single-sided picket fence, for example, a pipe 60 x 60 will do.

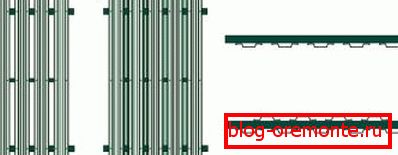

Fence section options - one-sided and two-sided

The sections of the enclosing part are the elements of direct filling between the supports. For metal fence fences, it is recommended to use a carrier jumper from a profiled pipe 20 x 40 between the supports.

One shtaetina has a weight of - 700 g - and it is precisely a small weight that does not hinder the use of profiled pipes of small cross section as the supporting posts of the fence. The fence can vary in height from 1.5 to 2.2 meters.

However, thanks to modern technologies you can order any size and color. The width of the section are 2, 2.5 and 3 meters.

Assembly activities

Installation of supports

Installation of metal fence fences begins with the installation of support pillars:

• Holes for them should be equipped with a depth of 0.5 to 0.7 meters (taking into account the depth of soil freezing);
• Then, the adjusted pillars are concreted;
• After that, transverse lags are attached to the supports, to which, in turn, the crate is attached.

Assembling a fence from an evroshtaketnik with their own hands is a simple matter

Installing the enclosing part

• The height of the fence of metal picket can be from half a meter to 3 m, but the most common option is to use 1.25 - 2 meter planks;
• By installing a similar fence, the pillars can be positioned at any reasonable distance from each other;
• Sometimes shtaketiny set in staggered order, thus obtaining a "deaf" fencing increased strength, but while maintaining the functions of ventilation.

Conclusion

As you understand, it is realistic to make a hand-made installation of a fence from an evroshtaketnik at home or in the country. Clear instructions can be a good help for you! In addition, in the presented video in this article you will find additional information on this topic.
