If you observe the life of residents of any city in Western Europe, the number of pensioners and people in wheelchairs is striking. They move freely, and it seems that they are not at all burdened with their position.

In our country, these people are almost not visible. And not at all because they are not there, but because it is just difficult to leave the house for them, which is difficult to solve on their own. How is this issue resolved? We study together!

Photos - Ramp at a public building

Ramp - general information

Concept

Begin to study this topic is important with the definition of basic concepts.

In this case, there are two:

1. Low mobile population groups (MGN). This category includes not only wheelchair users, but all people who have difficulties moving independently. These include retirees, women in late pregnancy or with wheelchairs for children.
2. Ramp or sloping platform. Today it is one of the essential elements in the architecture of the building. It is intended for the descent - lifting MNG.

Since 2009, in the Russian Federation a decree obliging to equip public premises with a ramp has been in force.

Legislation

At the legislative level, the requirements for the presence, placement and parameters of a ramp and fences for it are contained in the following documents:

• Construction norms and rules SNiP 35-01-2001 “Accessibility of buildings and structures for people with limited mobility. General provisions. Standards are valid from September 2001.
• GOST 51630-2000 “Lifting platforms with vertical and inclined movement for disabled people. Technical Requirements Accessibility. The standard is valid from July 2000.
• PB 10-403-01 “Rules for the Construction and Safe Operation of Lifting Platforms for Persons with Disabilities”. The regulations are valid from November 2001.

Ramp - technical information

Ramp design

A ramp is a movement device consisting of three parts:

1. horizontal driveway, which must necessarily settle down at the beginning of the construction;
2. ramp surfacetilted;
3. horizontal exit area. She completes the design.

Фото – Ramp design

If necessary, an additional platform can be equipped for making a turn and ramp fence.

Note. The minimum length of access pads is at least one meter. Otherwise, movement along the ramp will be complicated.

Ramp requirements

Requirements are defined in building codes, state standards, requirements for the design and safe operation of ramps intended for people with limited mobility.

They regulate the following design parameters:

1. Material.

• для изготовления несущего каркаса пандуса должен применяться негорючий материал. Предел огнестойкости > R60. Этот показатель показывает продолжительность времени в минутах, от момента возгорания, до начала деформирования;
• perforated metal, tile, asphalt, concrete are used to cover the canvas.

Note. It is important to ensure sufficient surface roughness. Otherwise, the stroller may slip.

Note. The canvas must be provided with a heating system or perforation. This is necessary to avoid surface icing in the winter season.

1. Tilt angle. It is logical that the greater the angle of inclination, the longer should be the canvas to move. Slope can be indicated in two ways:

• in the form of a relationship.
• in percents.



  Photo - Tilt angle

For example, the drop height is 0.1, and the exit length is 1 m. Then, a ramp with a slope of 1:10 or 10% is necessary.

1. The size.

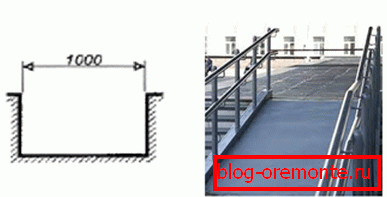

• for areas with one-way traffic, the width of the web must exceed one meter;
• for platforms with two-way traffic - more than 2 meters;
• the width of the platform for turning is more than 1.5 meters.



  Photo - Passage width

1. Rise height over 0.8 m is not allowed. The permissible angle and maximum length of the march are presented in the table.

   Photo - Table



   Photo - March height

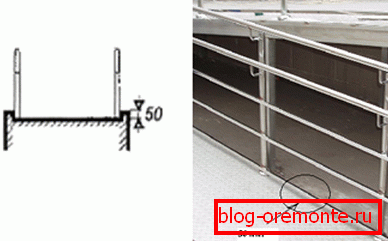

1. Limitations. Вдоль продольного края полотна должны присутствовать бортики. Высота > 50 мм.



   Photo - Limit the edge of the canvas

Fencing requirements

Photo - Up to goal six steps

Fence ramps for disabled persons are required if the angle of the march is more than 5%.

The following requirements apply to them:

1. Material. Для изготовления ограждающей конструкции должен применяться негорючий материал. Предел огнестойкости > R120.

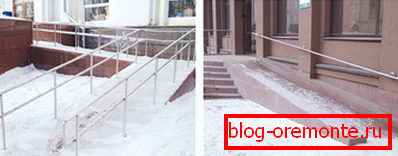

2. The number of handrails. Handrails can be double-sided or located on one side.



   Photo - Location of ramps for ramps

1. The number of handrail levels.

Multi-level railings for fences are more common.

This is because:

• for adults, the distance from the canvas to the handrail should be 0.7 and 0.9 m;
• for children - 0.5 m.

1. Limitations.

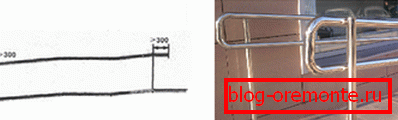

The railing must extend beyond the canvas by at least 0.3 m.

Photo - Requirements for the length of the railing

1. Designations on the railing.

If the ramp covers several floors, then on the surface of the fence provides for the application of their convex designations.

Ramp - practical information

Ways of arrangement

You can buy ready-made ramp fence, and you can do it yourself.

Depending on the degree of human participation in the arrangement of the railing - there are several ways to obtain the desired result:

1. Order finished sections with installation. In this case, the ratio of "price-time for installation" will be in favor of saving time.
2. Buy collapsible sections and install. The cost of the collapsible section is lower, but, and the time for its assembly and installation increases.

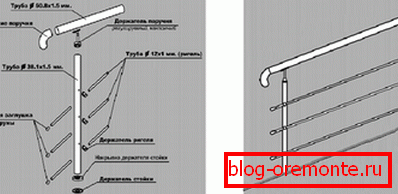

   Photo - Example set for the arrangement of the railing

The end of the handrail or side bracket for the fence is presented in the video

1. Make all the parts and install them yourself.

Walkthrough

Since in our country the protection of ramps for people with disabilities is the work of the people with disabilities themselves or their loved ones, let us consider how to design them yourself, without involving public services.

Starting installation of a ramp fence - the instruction is useful to you.

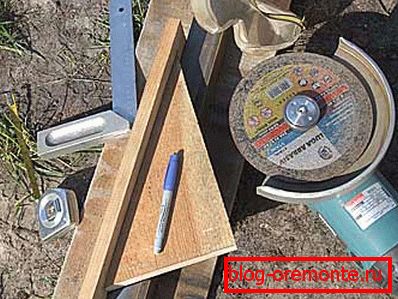

1. Cooking tool

Photo - The tool necessary for arranging the ramp and fence.

1. Choosing a material. For the surface it is best to use perforated metal, and for handrails a pipe.
2. Install the frame for the march of metal corners.
3. Top fix sheet metal.

Note. The metal must be thick enough to withstand the intended load.

1. We weld the pipes forming the handrail.

Note. It is advisable to make several levels of the handrail. So it is more convenient to use them.

1. Weld the ready rail to the base of the ramp.

Note. If possible, try to fix the railing to the walls, or at least one of them. So you give the railing more durability.

1. We paint the design. Since the ramp and railing of the fence are made of metal - it is better to protect them with paint.

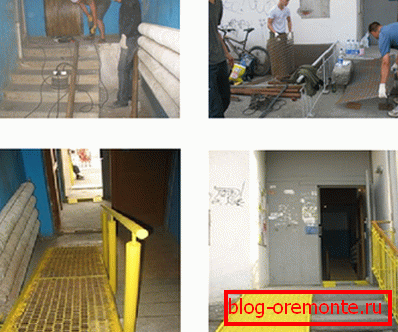

Stages of works are presented in the photo.

Photo - Arrangement of ramps and fences on their own.

Conclusion

I want to believe that the information provided in this article will benefit both concrete people and society as a whole. After all, by showing today, caring for people with limited mobility, we are shaping the respect and understanding of their problems among the younger generation.

Given the requirements for the arrangement of fences for ramps, you can easily make them yourself. Thereby, removing another obstacle, for people with disabilities, to a fulfilling life.

In the presented video in this article you will find additional information on this topic.

More information about installing the ramp is presented in the video.
