Cascade fences: options for fencing and installation

Fences Cascade for many years leading among the high-quality prefabricated metal fences, and successfully tested in the most difficult weather zones. Any Cascade intake section has improved ergonomics and an improved stylish design.

Metal fences of this type reliably restrict access to industrial facilities, as well as any protected area.

Such a barrier is not just a necessary barrier, but also a modern decoration of the territory.

Section characteristics

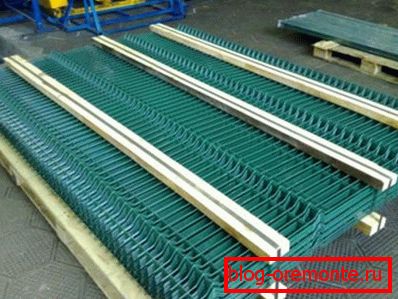

Cascade Fence Sections

Virtues

• Production of these metal fences is a high-tech multi-stage process on modern equipment.
• All the details of this design at the final stage carefully cover a good layer of galvanizing, high-quality paint or polymer protective means of the new improved line.
• These fences successfully delineate the entire territory into the required sectors and need a capital fixed installation.

Dimensions and equipment sections

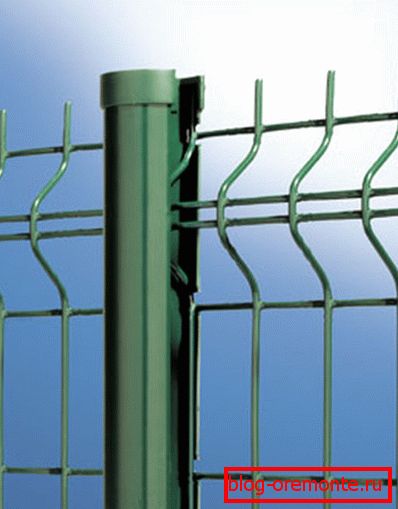

On the photo - Cascade sections with coating

Popular Cascade panels have practical standard sizes of 1925 x 2500 mm in black, green RAL6005, white RAL9010 colors. Attractive price is advantageously combined with fashionable minimalism of the decor of these fences.

Standard:

• With a length of 2.5 m, the section height is 1.925 m, and the cell itself is 50x200 mm.
• Prutytsinkovye D-4 mm, and D-5 mm are also covered with PVC.
• Pillars 50x50 mm D-76 mm, height 2.6 m.

Coated:

• The Cascade section is reinforced with PVC coating.
• Its height is from 1.5 to standard 1.925 meters with the same length of 2.5 m.
• Galvanized rod and the same wire 4 mm or 5 mm PVC.

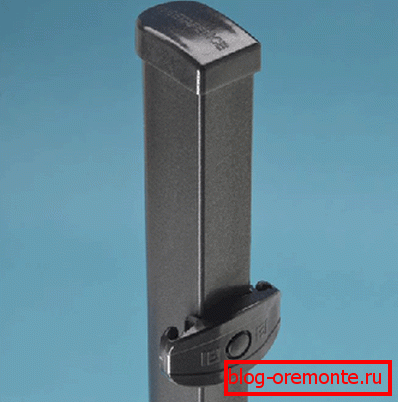

Metal poles are needed, and 60x60 shaped tubes will fit in 2.5 m steps.

Accessories:

• The 3 m high column is intended for a coated intake section with a diameter of 76 or 51 mm and dimensions of 50x50 mm.
• The steel clip with PVC coating is released for fastening the panel with the required set of fasteners: 2 bolts, nuts, washers. In the range there is any fasteners.

Cascade Grid

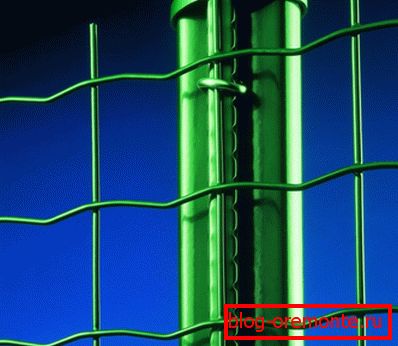

Galvanized PVC coated welded intake mesh Cascade

• Galvanized welded mesh in roll length of 15 meters and a height of half a meter to 1.8 m. The cells vary: 75 x 100, 50 x 100, 50 x 50 mm with a wire diameter of 1.8 mm (without coating).
• The coating is available in 15-meter rolls with a height of one and a half meters and a wire diameter of 2.2 mm, and the cells are of the same size as in galvanized ones.
• The colors are metallic and green.

Installation of welded mesh fencing

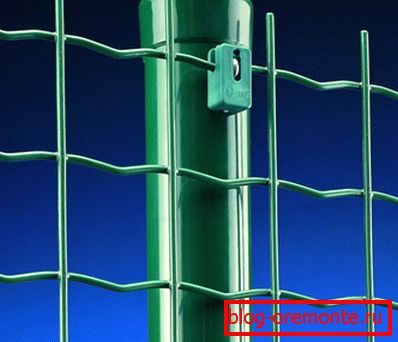

Welded mesh is more economical at cost and in the cost of installation and maintenance of its appearance.

Welded fabric has valuable advantages:

• it is more rigid, durable, does not sag;
• This mesh is durable due to its corrosion resistance;
• captivating and fastening to the fence posts, but these supports should have welded struts - "whiskers" at the lower end to increase stability with mandatory concreting;
• The unique convenience of this fence is that only we can complement it even with a heavy gate.

Installation забора

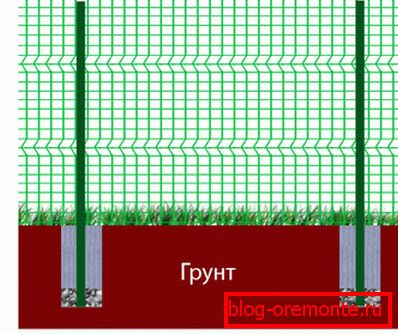

Installation scheme of a rigid grid Cascade.

You can build a fence from a welded web or Cascade sections yourself. These fences are easy to install, they do not require the use of expensive tools or additional building materials.

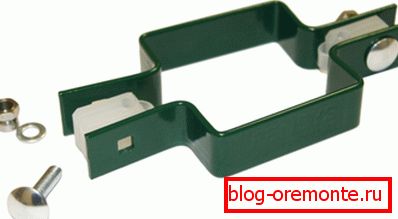

Fastening clamps without drilling holes in the pole

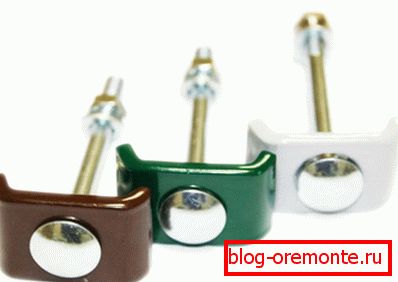

Elements for fastening the web with a pole: when using, drilling holes in the support is necessary.

Markup

Denote the place of digging the pillars along the border, measuring with a tape measure and driving in pegs. By the way, a small error of a step from one pillar to another is insignificant.

Soil preparation

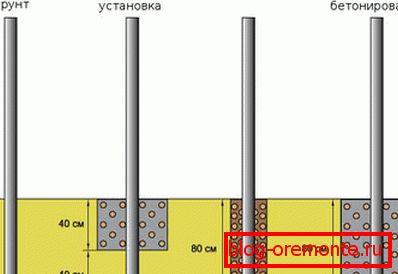

Installation options of support: the choice depends on soil.

• At the planned points to a depth of 80 cm, as advised by the instructions from the professionals, we drill holes of the required diameter with a gasoline drill, or habitually dig them with a shovel.
• The depth of these pits is determined by the characteristics of the soil and the future load on the supports.
• Corner supports, as well as columns at the gate, are made very durable so that they carry the reinforced load.
• Pillars in the ground will be strengthened strictly vertically on the level. The foundation for the section of the welded mesh is required and depends on the hardness of the soil.

Tip! The Cascade fence will become much more stable if the holes with the supports are poured with a powerful cement mortar. However, in clay soil, such a fill is harmful: the water frozen inside the pit pushes out the posts. And the clay itself rather firmly and viscously holds the metal risers.

Installation

Fastening the welding web to the posts.

By technology fencing Cascade installed in one of 2 ways.

The first method: welded fabric is fastened between the posts in advance dug.

• In this case, be sure to use the template board.
• Having installed all the pillars, we mount the sections.
• For fastening a welded web to a pole, we use U-shaped clamps with threaded connections.
• To reduce installation time, use a cordless screwdriver.

The second method: sequential installation of welded mesh fencing.

• To the two pillars fixed in the ground, first fasten the welded mesh, and then install the pillar for the next section.
• This method will take more time, but eliminate errors in the calculations and is acceptable where the ground is uneven.

Note! The drop in the relief of the site will determine the level or hydraulic level - with them we will build a perfectly correct fence.

The method of installation of the corners of the fence

Conclusion

Metal products for Cascade fences fully meet international standards for their quality, capabilities and equipment. That is why the Cascade fence is stable, durable and accessible to all of us who want to protect their homestead beautifully and reliably.

We will install sections at equal distances - this will significantly improve the appearance and functions of the fence, especially if the gap between the sections falls on the center of the riser.
