3d fencing: the benefits of technology

27-04-2018

Fence

The need to protect the territory - this is the second step after its acquisition, which will symbolize the presence of borders, as well as prevent foreign invasion. There are many variations of the fencing of objects, ranging from blank walls and ending with metal products of different heights. Each of the possible options has its advantages and disadvantages, which, one way or another, affect neither their operational characteristics.

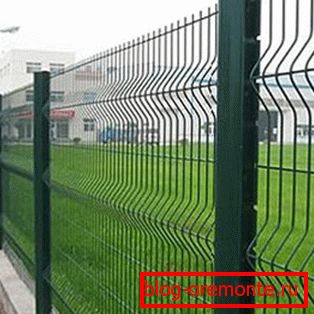

Metal fences 3d

This niche of building materials, in spite of its already quite long-established assortment, is still replenished with various novelties, among which a special place is occupied by the concept of “3d fencing”, which is called the new type of metal fencing created using modern developments. It is about him and will be discussed in this article.

Technology features

The 3D fence, first of all, is distinguished by its manufacturing technology — a spatial curvature forms on the panel plane, which plays the role of additional rigidity. As such, the overall structure remains unchanged, but the presence of bends gives the fence a special advantage - strength. Consider the main advantages of 3d fencing in more detail.

Strength

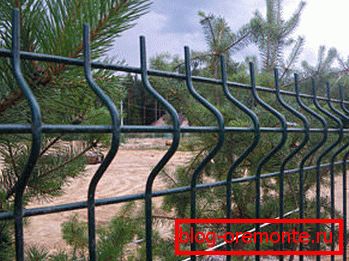

3D fence

Additional bending added to the panel design increases its strength for transverse fracture.
This technology allows to strengthen the structure of the fence without increasing its mass. Hardening occurs by creating additional uniform planes along the entire perimeter of the panel, which replace the presence of reinforcing rods of identical diameter.
Bends can be made in several places along the transverse structure of the panel - depending on the location of the rods.
The composition of the sealing stiffness can also include additional reinforcement in the form of a rod, which starts parallel to the central part of the bend.
In most cases, the diameter of the rod corresponds to the cross section of the rods from which the panel is made.

Appearance

Additional bends can be made in different styles:

square,
cone-shaped,
figure bend, etc.

This type of design, in addition to improving the parameters of strength, has a fairly strong influence on the appearance of metal 3D fences and fences, making them more rich and diverse.

It should be noted that the location of the amplifiers, their number and shape are the result of the work of designers who select the optimal values for the design of the panels.

Efficiency

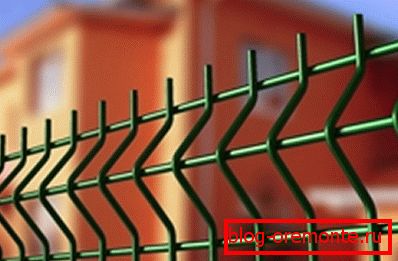

3D panel bend

As mentioned above, the design of metal fences, as such, does not undergo practically any additional changes that could significantly affect the cost of the product. Strengthening the structure and improving the appearance in this case is embodied by changing the structure of the panel, without additional costs for the source material. In this connection, the price of 3D fencing does not exceed the limits of availability.

The structure of the fence is designed in such a way that the customer has the opportunity to do the installation by hand, in particular, this is also facilitated by detailed instructions from the manufacturer, which comes bundled with the product being purchased. It describes in detail the installation options and mounting methods that will help you when installing this design.

Thanks to this feature, you can significantly save money on installation, while not losing as much as installation. Also, if you decide to install the fence yourself, you can read the video in this article for details of the nuances.

Durability

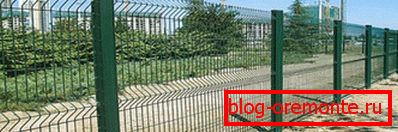

Fencing of the territory 3d fence

3D fences are highly resistant to corrosion due to the special technology of multi-layer coating, which effectively prevents the process of wear of the product under the influence of external factors - ultraviolet radiation, moisture and external damage. The average life of the fence is about 70 years.

The coating consists of three layers:

Zinc. The steel base is primarily subjected to cold or hot galvanizing. This coating protects products according to the principle of “sacrifice” - zinc belongs to the category of active metals and while even a small amount of zinc is on the steel surface, corrosion will not touch the fence.
Nanoceramics. After galvanizing, a nanoceramic layer is applied to the fence, which is inert to the environment and provides additional protection against corrosion.
Polymer layer. The structure of the polymer is created in such a way as to soften the mechanical effects - impacts, scratches, etc. By damping, it prevents damage to the inner layers of the coating. Also, the presence of the polymer layer deprives you of the need to carry out primary processing - it perfectly replaces paint and varnish materials.

Equipment

Stadium fencing

The complete set of the fence consists of several separately running parts, which are subject to further assembly. In most cases, these elements are:

Bearing poles. They can be of two types - with or without foundation. The first option has an elongated lower part for driving into the ground and possible concreting, and the second is intended for installation on a hard surface.
Panels of welded at the intersection of steel rods - their location can be both vertical and horizontal, depending on the design you choose.
Mounts in the form of clamps or brackets, which are fixed by means of through bolts.

Note! Some manufacturers of metal fences supply bolts with anti-vandal construction as clamps - their purchase will prevent you from dismantling the panels by intruders or vandals.

Total

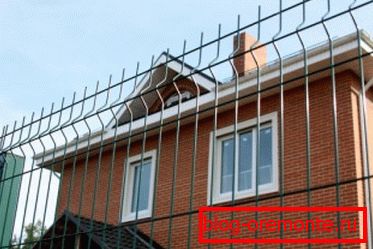

3D fence: photo

Enclosing the territory is not only a protection against the entry of unauthorized persons, but also the first thing that people will see who will somehow come into contact with you. 3D fencing is a reliable protection, the acquisition of which does not require excessive costs and, at the same time, has good appearance (read also the article “Forging a fence is beautiful, reliable, durable”).
