Warming the house outside with siding

To reduce heating costs and maintain a comfortable temperature in the room, it is necessary to warm the walls with high quality. Finishing the exterior of the house with siding performs two functions - improves the appearance and serves as an additional barrier to the cold. Between the walls and cladding is a layer of material that provides minimal heat loss. Warming the house outside with siding is performed in a short time and does not have complicated processes that require expensive tools.

Types of siding

Finishing the house with one of the siding types is not only practical, but also aesthetic. The universal material protects the walls of the building with insulation attached to them and gives the facade a modern, attractive appearance. To perform the cladding is used:

1. Vinyl siding - PVC panels resistant to temperature change, having different texture and color.
2. Cement or ceramic siding is a worthy alternative to natural stone, resistant to moisture and easy to install.
3. Metal siding - aluminum or galvanized material. Resists fire, moisture, negative temperature.
4. Wood siding - cladding panels are attractive and environmentally friendly, but serve a short time.

The choice of insulation

The material chosen for siding as a heater should have good moisture resistance, have a long service life, be resistant to fire and temperature changes. Among the heat insulators used for outdoor work, mineral wool and foam are popular. Mineral wool is made from rock, blast furnace slag or glass.

The characteristics of these materials determine the quality of insulation:

• ensuring breathability;
• resistance to chemical and thermal effects;
• durability;
• environmental Safety;
• affordable price;
• fire resistance.

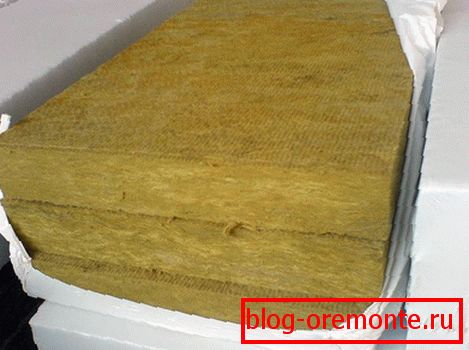

Insulation is available in the form of plates and rolls. Stone wool is an optimal choice for outdoor insulation, the material has high elasticity, low degree of water absorption and withstands heating up to 1000 ° C.

Styrofoam изготавливается в виде плит различной толщины, благодаря пористой структуре, он является отличным изолятором тепла. Он легкий, безопасный, не боится мороза и влаги, легко режется. Благодаря низкой стоимости, этот материал часто используется в строительстве и ремонте зданий.

Styrofoam выпускается в виде плотных панелей, обладающих долговечностью, безопасностью. Кроме того, он отличается простотой обработки и установки.

Preparation of walls for installation

Before insulating the house, you need to know the recommended value of the insulation layer. Standards are calculated according to the climatic conditions of the region and the material of the walls. For a brick house, a layer of heat-insulating material of 10 cm is required, for a concrete one - 15 cm, for a wooden one - 10 cm. The surface of the facade must be freed from protruding parts, decorative gratings, shutters, drainage. Small cracks and irregularities do not affect the structure, they are insulated by insulation. The walls of the wooden house before finishing are treated with fire retardant and fungus agent.

Note! To prevent moisture from entering the insulation, a vapor barrier film is placed between it and the wall. It will not allow the material to get wet and spoil. This is especially true when using mineral wool.

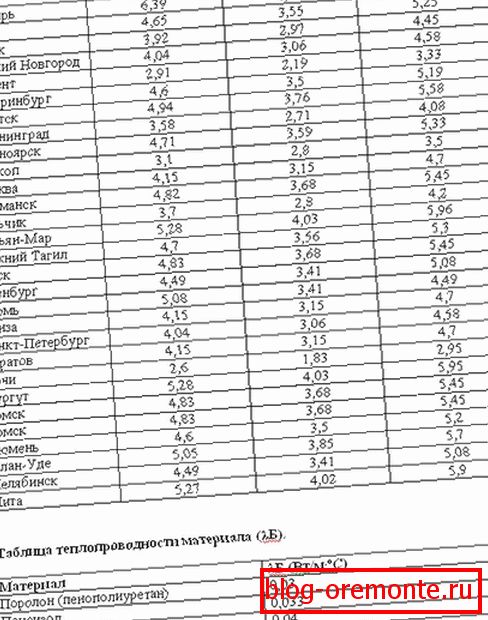

Using the following table, you can independently calculate the thickness of the insulation according to the formula R? ? B:

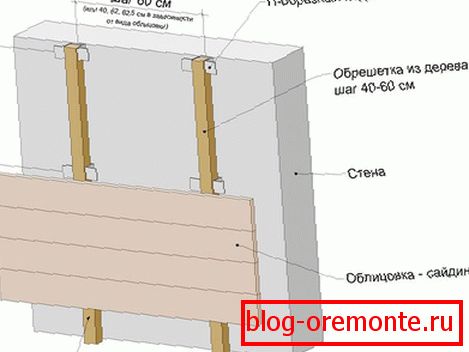

Frame under siding

So, how to make a frame? The siding crate is made of wooden beams or metal profiles. The wooden frame is cheaper, but it is not so durable.

• The cross-section of the beam used should be at least 50? 50 mm.
• It should protrude above the insulation surface by 2–5 cm - this will ensure the presence of an air gap.
• Dry lumber is taken for work, preferably coniferous, without rot and damage.
• Previously, it is covered with antiseptic.

The metal profile will provide a reliable and durable base, but will require substantial cash outlay.

• Its installation is carried out on special suspensions. To fix the frame to the brick, screws will be required, and it is nailed to the tree.
• Profile or timber for horizontal placement of siding is fixed vertically. The thickness of the batten depends on the size of the insulation boards. The step of fixing the vertical guides is from 50 to 30 cm, it should be 1 cm less than the width of the insulation.
• The installation of the batten starts from the corner of the building, retreating from it 10 cm. Having fastened the two extreme planks on the level, you can tighten the cord and place the remaining guides in the same plane.
• Additional door and window openings will require additional bars or profiles.

Laying insulation

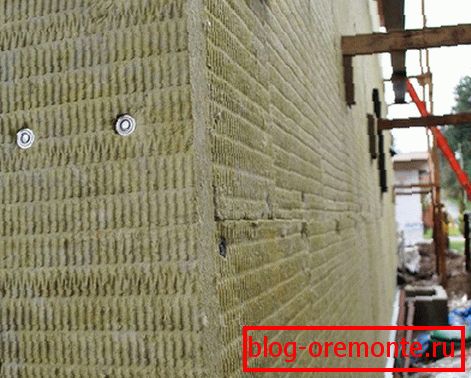

When warming mineral wool it is better to use not rolled material, but plates. They are conveniently placed between the guides and fastened each separately. To do this, use five plastic dowels with large caps, drive them in at the top, bottom and in the middle of the insulation plate. It is necessary to lay insulation as tightly as possible so that cold bridges do not occur. To increase the efficiency, it is possible to lay the material in two layers, overlapping the existing joints with the upper plate.

Note! In conditions of low temperatures applied two-level insulation. The first layer is laid in the crate fixed horizontally, and the second between the vertical guides.

• Thermal insulation foam is performed using glue and dowels.

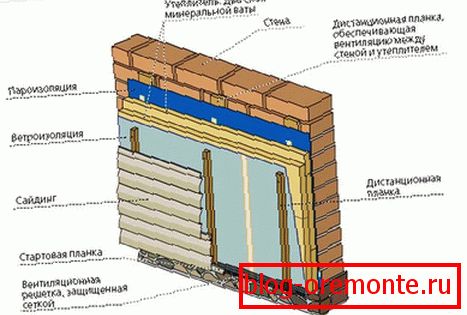

• The laid insulation is covered with a special membrane used for wind and waterproofing. This rolled material additionally seals the joints and protects the insulating layer from external influence.
• The membrane is attached to the crate with a stapler, the canvas is laid with an overlap and glued with butyl tape.
• Diffuse material does not let moisture in and out steam. Between the membrane and the siding is left a gap for ventilation.

Siding installation

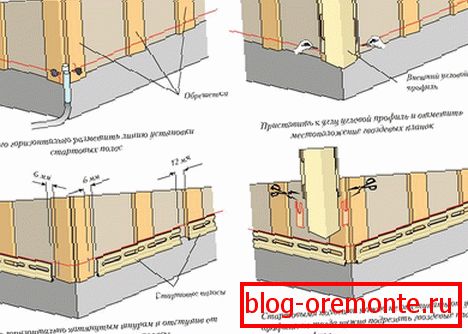

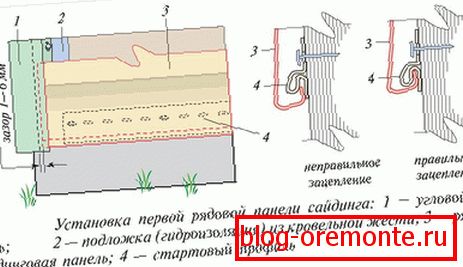

Work on the installation of siding start with marking the installation site of the starting profile. To do this, from the edge of the crate mark 5 cm and lay a line around the perimeter of the house. On it the starting guide is screwed, which should be in a strictly horizontal plane. The next step is the installation of corner elements, followed by framing of window and door openings. Installation of panels with horizontal placement begins at the bottom left and goes up. Vertical siding installation can begin in the central part of the wall. When fixing the screws in the slots of vinyl panels need to leave a gap of 1 mm for thermal expansion.

Warming the building with your own hands and covering it with siding is quite an affordable process. Observing the described technology, you will get a guaranteed result - a warm and attractive home.

Read our other articles:

Choosing Vinyl Siding

How to insulate walls with a polyfacade

How to insulate the facade with mineral wool

How to insulate the facade of the foam

Video

In this video you can find instructions on how to insulate a house with stone wool and a siding facade:

See how to mount siding, after insulation of the facade with polystyrene foam:
