How high to install sockets

Modern household appliances tightly entered our lives. It allows you to speed up and simplify many processes. But as you know, their work is connected with electricity, so in order not to run around with carrying around the apartment, it is worthwhile to correctly place the sockets. From this article, you can learn more about how high to install sockets.

Main provisions

Although everyone can independently decide where and at what height to install sockets, it is still worth considering the main nuances:

• First of all, it is good to have an apartment project, which will indicate the location of furniture and basic electrical appliances.
• Based on this, the project can indicate the location of sockets, including telephone and Internet.
• Each apartment has a stationary equipment, which for years stands in one place. So, for the refrigerator, TV, computer, etc. sockets must be placed so that they can be easily reached. But at the same time you should not have them in a prominent place so that they do not spoil the look of the room and do not interfere. Well, when electrical appliances hide them.
• As for outlets in open areas, it is best to place them on the same level from the floor.

Now, take a closer look at where to install sockets in different rooms.

Kitchen

• For household appliances such as a dishwasher, a washing machine and a refrigerator, sockets should be placed at a height of 20 cm from the floor. This height will be ideal even in cases where the device has a short cord.

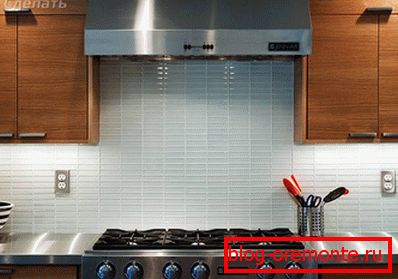

• At arrangement of a working zone (apron) it is also necessary to take care of additional sockets. Usually the kitchen uses an electric kettle, a mixer, a slow cooker, a blender and other appliances that are needed for cooking. So, from the floor installation height will be about 110 cm.
• To connect the hood outlet must be positioned so that the connection wires were not visible. After all, you see, it will be ugly if the cord hangs over the working area, especially since it is not safe over the open fire of the stove. Thus, the optimal height of the outlet is 200 cm from the floor.

Do not install sockets on the working area by the number of household appliances. Otherwise, the whole apron will be flooded with them. Also, do not follow the path of minimalism, and then put tees or carrying. If the working area is large enough, then from two sides you can put 2 blocks of sockets, each with 3-4 pieces. Also do not forget to keep the symmetry.

Bathroom

When planning the location of sockets in the bathroom, it is worth considering the peculiarity of this room, where there is always high humidity and there is a risk of flooding. Therefore, the height from the floor should be reasonable. So, from the sink or bath rosette should be located at a distance of at least 60 cm, but better than 100 cm. Also, you should think about the amenities when using a hair dryer or an electric razor. Calculate so that when using these electrical appliances the wire from them is not tight.

So, you can focus on the following parameters:

• For a washing machine not lower than 50 cm from the floor.
• For a razor, hair dryer and other appliances, the height is about 100 cm.
• For an electric boiler in the region of 150 cm.

If in living rooms sockets can be lowered to 15 cm, then in the bathroom this is undesirable.

Bedroom

As for the bedroom, the installation guide sockets is a bedside table, standing near the bed. It is necessary in these places to charge your tablet or mobile phone. A night light is also installed on the bedside table, for which a separate exit is required. Often, a telephone jack is mounted here. European standard mounting height - 30 cm and higher.

Also in the bedroom are needed additional power sources. For example, to connect a vacuum cleaner or ironing things with an iron. And if you want to hang a TV on the wall, the socket should be behind it. From an aesthetic point of view, this is a plus. The very same wire can be hidden in a plastic box that is mounted in the wall. To do this, you must first do the strobe. Also required sockets for connecting a computer, printer and other equipment.

The main thing to remember is that the power source must be accessible to you. If necessary, de-energize this or that device should not be difficult.

Also consider the fact that in the presence of small children, choose such outlets that will be protected by special curtains or covers. They will serve as protection against direct contact with the current.

Resume

So, to summarize how to install sockets and switches so that they are convenient to use. Regardless of the choice of mounting location and height, be sure to make a diagram. It will help to make all the preliminary work with high precision, and in particular the wall shaving.

So, the diagram should indicate:

• door and window openings;
• the location of the electrical wires on the walls;
• installation locations of the distribution box;
• the presence of a household appliance;
• arrangement of furniture.

With accurate data, there will be a very small chance that you will make a mistake when working.

If you know about other subtleties of installing the outlet, then write comments at the end of this article. We hope that the information provided will help you to do the work correctly.
