The gate from a professional flooring with your own hands is - Blog about repair

The gate from a professional flooring with your own hands is

07-01-2018
Doors

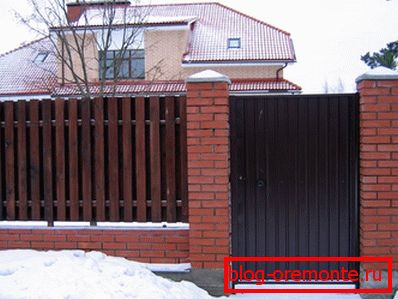

The gate is the place through which a person passes daily. Naturally, everyone is trying as much as they can to elevate, highlight, make comfortable and attractive. One of the uses of modern materials is profiled.

Wicket with your own hands from corrugated board is not such a problem if you know some nuances and have the necessary tools.

What happens a professional flooring

Decking это листовой металл, которому на специальном оборудовании придано тот или иной профиль. Короче говоря, это профилированный листовой металл со специальным покрытием. Его покрывают цинком в электролите с целью защиты от коррозии.

Such professional flooring is called galvanized. In addition to galvanizing, profiled sheeting is covered with paints and special polymer coatings.

Depending on the coating of protective compounds, decking is:

  • Coated with paintwork
  • Coated with polymeric compounds
  • Double coated
  • Without cover

Accordingly, the profiled flooring can be applied:

  • In the interior
  • As roofing material
  • For formwork

In addition, when creating a corrugated sheet during machining, it can be given a different profile.

The profile of a professional flooring can be:

  • Symmetric
  • Ассиметричный

In order to understand the variety of professional flooring introduced special notation. They are not so complicated.

The letters in the floor marking mean:

  • C-wall
  • N-flooring

Numbers mean wave height. For example, the NS-35 is a flooring with a wave height of 35mm is intended for roofing and wall coverings.

By the way, the profile in the sheet metal is made to impart mechanical rigidity to the sheets, and not at all for decoration. The higher the wave profile, the greater the mechanical stiffness.

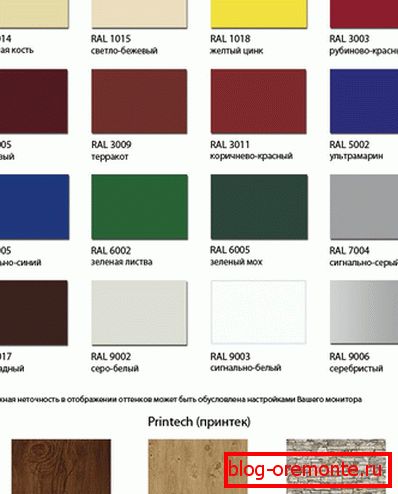

Color gamma profiled

Above all, you need to know that the color of the corrugated board is standardized and is selected according to RAL. This is an international classification that helps to select the color of corrugated board, fasteners and other details in case you need to make an additional order.

wicket do it yourself from corrugated board

In addition to monochromatic coatings, there are coatings under wood, stone, etc. Sometimes we are confronted with names other than professional flooring and professional sheet. What is the difference between profiled and professional sheets?

No! This is the name of the same material. Gates from the professional sheet do not differ in their own hands, from the gates made of corrugated board.

Advantages of a professional flooring:

  • Resistant to wind loads, not afraid of rain
  • Durable enough
  • Economical
  • Easy to mount
  • Does not require special skills to work with it.

Wicket selection

Wicket with your own hands from corrugated board - there is nothing complicated. Considering that the profiled flooring is a solid sheet of metal, the wicket can only be deaf. It can be rectangular or in the form of an arch. But it is necessary to take into account that the arched gate is more difficult to manufacture than the rectangular one.

A high-quality wicket from a professional sheet will be made faster and more qualitatively by hand if you first measure the amount of work and draw a wicket or sketch with all sizes.

Pillars, на которые опирается калитка, нужно углубить в землю на глубину промерзания грунта. Глубина промерзания для различных территорий различна.

Ways of fastening of basic columns:

  • Concreting
  • Backfilling with gravel-sand mix with tamping

Types of wicket installation:

  • In the fence of corrugated
  • In a stone or brick fence
  • In other types of fences

Монтаж wickets with profiled do-it-yourself не трудный. Она легко устанавливается в любом виде забора. Установка калитки не требует специальных строительных знаний.

Features of the installation of the gate in the stone fence

If the fence is already installed, and even more so from stone, brick, foam blocks, concrete, etc. there is the question of installing hinges for the gate (see Types of door hinges: consider in detail). Such loops are welded by electric welding to embedded metal parts in stone pillars.

Embedded detail in masonry

Embedded parts are therefore called mortgages, because they are laid during the construction of stone pillars in masonry. These are usually steel plates with pins. If the pillars have already been built, and it is necessary to install a wicket, then jagged forged metal pins are driven into the masonry, and plates are already welded to them.

wickets with profiled do-it-yourself

Gate in brick pillars

If the pillars are concrete, then holes are drilled in the concrete, into which the jagged pins are driven, and then the embedded parts are welded to them.

Concreting столбов производят бетоном марки М200. Для того чтобы получить бетон марки М200 необходимо смешать цемент марки , 400, песок и щебень в пропорции Ц1: П 2,8 : Щ 4,8.

For example, if cement M400 is in a bag, then concrete M200 will be C 50: P 140: S 240 = 430 kg. The basis for calculation is one bag of cement weighing 50 kg.

wicket from a professional sheet with their own hands

Decorative decorations for gates made of corrugated flooring

To make a gate from a professional flooring with your own hands and decorate it is not such a difficult task. Gates and gates of corrugated have not particularly decorative appearance. Therefore, developers are trying, as they diversify. As a rule, it is forged decorative plates, etc.

hand-made wicket doors

Council A few decorative wrought iron ornaments will make the gate more welcoming.

Preparatory work

Для того чтобы сделать fence made of corrugated board with a wicket, необходимо подготовить необходимое количество материалов. Следует иметь в виду то, что высота забора равняется ширине листа профнастила. Кроме того необходимо взять в расчет  расстояние от земли до забора. Оно равняется 50 мм. Ширина листов, так же как и высота бывает разная.

Having removed all dimensions in kind on the ground, it is necessary to design a fence, a wicket and a gate. A multiple number of sheets is calculated in the fence. As a rule, the distance between the pillars is 2.5 m.

Having calculated the required amount of materials, and this is:

  • Pillars
  • Decking
  • Corner or square
  • Cement
  • Sand
  • Rubble
  • Electrodes
  • Hinges
  • Wicket locks
  • Self tapping screws

Begin to develop drawings wickets and fence. Make a detailed drawing of one section of the fence and the gate. In order to facilitate your work you can find a sufficient number of various projects of wickets and fences on the Internet with detailed dimensions and adapt them to your own occasion.

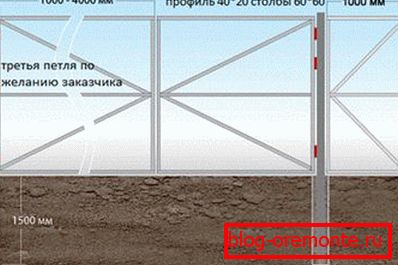

Approximate types of drawings wickets and gates

to make a gate from a professional flooring

The diagram shows the installation of wickets and gates of corrugated with reference sizes. You should pay attention to the depth of laying the pillars for the gate. The greater the width of the gate, the greater the depth of laying columns. The gate and gate are concreted as an assembly and are set at once in all planes vertically.

It is necessary to provide for gaps between the doors of the gates or wickets and a pretended column of about 8-10 mm. Do not rush to open the gate or gate ahead of time. In fact, the concrete hardens for 28 days, but it is possible to operate the gate or wicket in 14 days.

fence made of corrugated board with a wicket

After analyzing these drawings, you can add for yourself the idea of ​​the number of materials needed and the size of the future product.

Fence of corrugated

Fence of corrugated своими руками с калиткой  будет служить долгие годы. Он легкий, простой по конструкции, требует минимального ухода. Фактически уход сводится к мытью забора. Сам монтаж забора простой и никакой сложности не представляет.

After installation, two or three columns are welded to them, depending on the height of the fence, transverse square pipes with a cross section of 20x40 mm. Pipes are cleaned of rust, primed with metal primer and painted in two layers of paint.

After that the professional flooring is mounted in one of two ways:

  • Riveted
  • Self tapping screws

In the case of fastening with rivets, it is first necessary to drill holes of the appropriate diameter in a corrugated sheet and transverse square tube, and then fix profiled sheeting with a rivet gun.

If the professional flooring fastens screws, it is necessary to have the screw gun with the corresponding nozzle. One will not be able to make fences and wickets out of corrugated flooring with their own hands. You will need two more assistants. How to make fences and gates of corrugated with their own hands, look at the video.

Tips:

  • In order to align all the columns vertically, first align the two extreme columns vertically, and then tighten the cord and align the others with it. Thus, one plane will be ready. The second vertical plane of each column is aligned with the water level
  • The level is best to take a two-meter
