Pendulum doors - features and scope

For rooms with high permeability, the problem of protection from cold, dust, insects and other external factors is very acute. Therefore, their owners often wonder how to install a pendulum door, which is better than others to cope with this task.

But first you need to well study the characteristics of such doors, their types and purpose in order to make the right choice.

But thanks to their ability to open in any direction without effort, pendulum swing doors have also been used in health care facilities - hospitals, sanatoriums, clinics, as they allow wheelchair users to move freely and carry patients on gurneys. Such doors are not uncommon in homes and apartments.

Features of swing doors

Principle of action

If ordinary swing doors open only in one direction, then the pendulum can move to any. The principle of their operation is based on the rotation around the axis with the same amplitude both in one and the other direction, and spontaneous return to the closed position. Therefore, these doors and got the name of the pendulum, or swinging.

Due to the presence of floor closers in the design of the pendulum doors (see Installing a door closer with your own hands), they can be fixed in the open position. This option is very convenient for residential premises and premises located inside heated buildings - for restaurants, cafes and boutiques in shopping centers.

Purpose

It:

• Preservation of heat in the room.
• Preventing drafts.
• Reducing the penetration of dust and insects from the street.
• Maintain temperature and humidity conditions.
• Providing ease of passage for a large number of people, for people with a load in their hands or having problems with the locomotor system.
• Ensuring unhindered passage in emergency situations, for example, in case of fire.

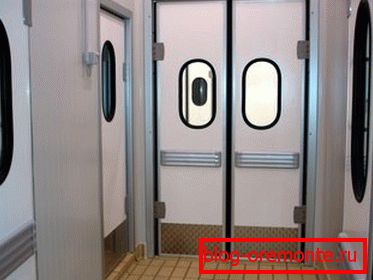

The pendulum interior doors are installed in the apartments, at the entrance to the kitchen, dining room or workshop — that is, in those premises that often have to be entered with busy hands.

Types of swing doors

To destination

According to its purpose, swinging doors can be:

• Input. Installed at the entrance from the street to public buildings, major stores, subways, train stations, stadiums.
• Interior. Used in homes, boutiques, medical facilities, as well as in the halls of restaurants and cafes between the visitors' hall and the kitchen to ensure convenient movement of waiters with trays in their hands.
• Industrial. They are installed between workshops, warehouses and other production facilities for the convenience of moving goods.

• Fire fighting (see GOST: installation of fire doors). Pendulum fire doors have high fire resistance and are installed both at the main entrance to buildings with large crowds and at fire exits.

By production material

It would not be an exaggeration to say that all the known “door” materials are used for the manufacture of swing doors. But the most popular and popular are:

• Pendulum glass doorswhich can have all-glass cloths or canvases enclosed in a wooden frame or aluminum profile.
• Pendulum wooden doors - these are most often interior or interior structures, which should isolate the rooms from each other visually.
• Pendulum aluminum doors, along with glass, set at the entrance to the subway, shops, markets, etc.
• Pendulum metal doors made of galvanized or stainless steel and is used most often in warehouses and industrial plants, filling polyurethane for strength.

Installation of swing doors

No matter what the door is made of, no matter how reliable and durable the material is, using low-quality fittings and a non-professional installation, it will not last long. Therefore, the choice of accessories and installation of the pendulum doors should be approached very responsibly, especially since there are some peculiarities here.

Installation features

If you easily cope with the installation of conventional swing doors (see Installing Swing Interior Doors), it will not be much more difficult for you to install pendulum doors.

The main task will be to provide a vertical for the axis of rotation of the door, otherwise it will touch the upper transom or floor when moving. In addition, if the door is double, then you need to achieve a perfectly flat gap between the canvases.

Attention! Special attention should be paid to the installation and careful fixation of the floor closer, which accounts for a large load.

Some difficulties may arise during the installation of all-glass doors, in which assembly holes and cutouts for fixing accessories have already been made in production.

The choice of accessories

Fittings for swing doors include:

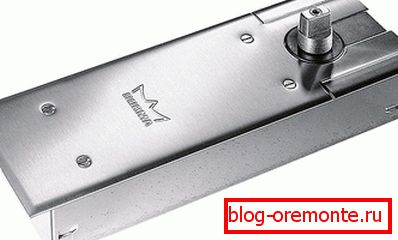

• Floor closer, which sinks to the floor. If there is no possibility for shtrobleniya floor, instead of the closer set the bottom axis.
• The upper axis, which is mounted either in the upper fitting of the stationary panel, or on the upper edge of the opening.

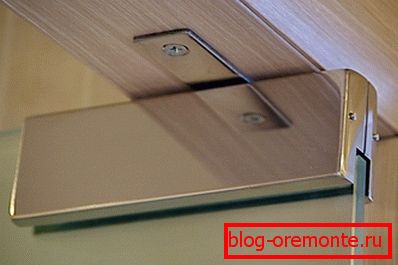

• Door fittings are special design mounts that play the role of hinges.
• Door handle
• Corner lock that secures the door to the upper transom fitting or to the floor.

The most important element of fittings are hinges for swing doors (see. Hinges for doors: their types and rules of choice). They differ in location on the door leaf: they can be attached to the side of the leaf or to its lower and upper corner.

Each type of loops has its advantages and disadvantages. In addition, hinges should be selected depending on the weight and dimensions of the door leaf.
