Gate from profile pipes together with gate

To date, the gate and the gate of the profile pipe, are the most common options for arranging sites. Such pipes are made nowadays from various alloys, there are quite easy connections. Collected in a single design, provide reliable and durable protection of the site.

• Acceptable price;
• Durability;
• Reliability;
• Simplicity of design;
• An opportunity to choose any design of facing (see. We choose design of a gate);
• The use of forging elements and decorative products.

Tool and materials

To do the work in one day and not be distracted, you should prepare the necessary tool in advance:

• Drill:
• Set of drills;
• The Bulgarian, will help to cut and clean metal. Stripping wheel, cutting;
• 220W welding machine, or semi-automatic
• Compressor, which will help to paint without streaks and quickly enough;
• Hammer;
• Roulette with nylon thread and protractor.

This is a list of the most essential tool. You should also purchase the desired material. Make a drawing. Choose a profile that suits you, carefully calculate the size.

Caution: Accurately determine the dimensions of the structure. Provide all the nuances, there should be no obstacles when closing and opening the gate and the gate. Choose the optimal width, a large increase in sagging over time.

When measurements are made, you can calculate the material and purchase it:

• Profile tube. It is not necessary to take a very thin, the design must be sufficiently rigid and withstand the load of its weight and the external environment;
• Anticorrosive liquid or gasoline, primer, paint;
• Hinges for wickets and gates (see. Hinges for doors: their types and rules of choice). Take powerful to withstand the load, preferably with a built-in bearing, it will serve as a smooth movement of the structure;
• If you prefer to sheathe, get the right material;
• Lock on the gate and bolt on the gate (see. Mortise lock in the gate). Or you can take automation. It all depends on the desire.

Mounting construction

To make a wicket gate of the trout pipe with a gate, everyone can. After preparing the desired material and tools, you can begin the installation. The gate and the gate of the proftrab are mounted on posts, so you should start with them.

Pillar installation

To install gates and wickets, pipes are taken one meter longer than the height of the designed structure. The frame will be mounted on them, so you should take this work seriously.

The pillars must withstand the load not only of the parts, but also the gusts of wind and prevent sagging:

• We make surface treatment of the pillars: we clean the place of metal damage (if the material was used) with the help of a grinder, degrease with gasoline or an anticorrosion fluid. After drying, wipe the surface with a cloth;
• Mark up space for the installation of columns. We drill (using a hand drill) or dig a hole in the ground of the desired depth. The diameter of the pit should exceed the circumference of the column by 10 cm;
• Preparing a liquid solution for pouring pillars. We use cement brand 300 and mix it with sand (preferably river), the ratio is 1: 3. Mix thoroughly, bringing to a liquid state;
• We put the pillars in the holes and fill with rubble, you can use unnecessary stones and pieces of asphalt from the site. Rub the rubble and pour the prepared liquid solution;

Caution: Correctly expose the pillars. Measure the perpendicular to the ground with a plumb line. From the quality of the installation will depend on the entire structure.

Brick pillars

If the design of the metal posts does not fit into the appearance of the main structure, it is possible to change, make brick. For this you only need to impose pillars of this material.

With this production, the quality of the structure will benefit, the gate of the prof pipe and the gate will be more stable and less exposed to external influences. The color and configuration of the brick will not be difficult to choose, the market for this material is saturated with various types and colors.

• Preparing the solution, as mentioned earlier, only reduce the viscosity (bring to the state of sour cream);
• The first row starts with laying a whole brick. The second with three quarters. With this we make a bunch of ordering durable.

Attention: Do not forget to install mortgages in the seams of masonry. Metal plates with a thickness of at least five mm should be used.

Next, you should wait for the solution to dry, but not completely, and make the jointing of the structure.

As a rule, for the final completion of the structure, decorative caps are installed on top of such pillars. They will give a finished look and will divert the flow of water during rain. Their various types are on sale, it is possible to order production by the individual order.

Mounting the frame

The manufacture of wickets from shaped pipes together with the gate should be started with the arrangement of the place of work. Well, if there is a welding table, and if it is not there, you should equip the workplace.

Much depends on the quality of manufacturing the frame. If the configuration of the elements is incorrect, the entire system will fail. This period of work should be performed fairly qualitatively.

• Choose a suitable place where you can freely place the desired structure. We lay the channel so that its dimensions are smaller than the product by 15–20 cm.
• Cut off the pipe profile, according to the desired size. Remove burrs using grinders.

Attention: When working, we carefully lay out the diagonal of the structure. Level check the plane. This is important, it will allow to avoid the formation of a "propeller" in the design. All elements before welding should be pressed with clamps (firmly fasten).

• Lay out the details in the desired configuration. We press it to the table with a rigid mount. Weld the joints;
• We make welding struts. This will give the desired rigidity. If it was decided to make the gate and the fence transparent, then weld the metal rods between the top and bottom of the structure;
• Welding do the point method. This will save time and reduce costs;
• We clean the seams with a grinder with a stripping wheel. We process the design with gasoline or anti-corrosion fluid. Give dry. Rag washable formed plaque.
• Grounding;
• Krasim.

Так делаются ворота и do-it-yourself wicket. Каркас собран и следует провести навешивание на столбы.

Fastened to the pillars

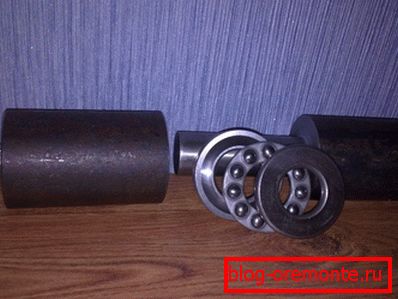

For mounting the structure to the posts, use only powerful curtains. This will add stiffness and avoid sagging. Use fasteners with bearings, this will give reliability and durability.

Caution: Provide a gap between the ground and the construction sheet. It should be at least 10 cm. This will allow for the free operation of the mechanism during precipitation in winter.

The making of wickets from the profile pipes together with the gates is completed. Now there is an opportunity to show your imagination on the design of the gate. You can sheathe any material or leave it transparent and decorate with the necessary decorative details. It all depends on the desire of the owner.
