Gate and gate from a professional flooring with their own

Profiled steel sheet is a very convenient material. Lightweight, durable, beautiful, durable. In recent years, it is very often used as a fencing material, and accordingly, for the manufacture of gates and wickets.

It is possible to make the gates and gates of corrugated flooring with your own hands. Gates and gates mounted on poles. The foundation of the pillars is a special issue, depending on the geological state of the soil.

Pillars

Pillar strength

And the strength of the pillars should be dismantled. In all construction markets offer columns of square pipe 60? 60? 2, that is, 2 mm thick.

The most significant load on the continuous fence - wind.

• At a wind speed of 25 meters per second, a force of F = 38.90 kgf acts on 1 square meter of the surface of the fence.
• It should be noted that such a wind happens in Central Russia once every 5–10 years, but then we set the fence even for 50 years.

A wind load of F = 2 × 2 × 38.9 = 155.6 kgc acts on a span of 2 meters of a typical two-meter fence.

• Точку приложения силы принимаем на высоте 1,25 м от уровня грунта.>
• Where 25 centimeters add to the height of the cap.
• Consequently, the maximum bending moment at the point of entry of the pole into the ground is M = FxLxk = 155.6? 1.25? 1.5 = 291.75 kgf • m, where k = 1.5 is a safety factor.

Note!

• The square tube 60? 60? 2 has a destructive moment of 173.64 kgsxm, which is significantly less than the calculated one.
• A square tube of 60 × 60? 4 (wall thickness 4 mm) with a breaking moment of 313.8 kg / s is passed through.

If there is no base, then the height of the point of application of the load is at a height of 1 meter from the ground level.

• The bending moment will be equal to 233.6 kgf • m.
• The strength of the pipe will be 60? 60? 3 (wall thickness of 3 mm), with a breaking moment of 247.61 kgf • m

Of course, in a high forest or among multi-storey buildings such wind is rare, but still it makes sense to think about the owners of sites located in an open field or on the banks of large reservoirs.

Gate posts

For gates, I would recommend poles of pipe 100 × 100 × 4 mm. Sometimes a truck can run over the gate, and then how to straighten bent poles?

Gate

Width calculation

Sometimes it is fun to read such tips on the web: “... As you know, the width of a professional flooring is 1100 mm, so the width of the future gate (see Which gate is better - we make a choice) is equal to this width ...”

Is it known to this respected "adviser" that there are a great many options for profiles and width of corrugated flooring?

Moreover, they are all different from different domestic manufacturers and foreign suppliers. It seems that a person writes an article on the topic, a gate and a gate made of corrugated flooring with his own hands, and at the same time he has never seen profiled flooring.

It is possible that there are several dozen types of profile. Each view has its own original arrangement of ridges and valleys.

• It will not be beautiful if there is a crest on one edge of the gate, and a hollow on the other side.
• This situation is not only not beautiful, but simply dangerous.
• It is unacceptable if the sharp edge of the steel sheet is raised above the surface.
• This edge will cut hands and clothes.

Therefore, it is necessary that on the sides of the gate or gate there should be a “hollow”.

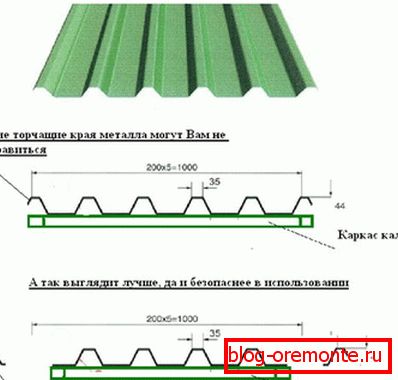

Let's show it in the illustrations:

In the figures above, we have shown examples of calculations for the width of your future wicket.

As already noted in this article, there are many types of profiles and profile widths. It is not possible to analyze all types of profiles in a short article.

When choosing the width of the gate, pay attention to this order of calculation:

• We look at the location of the ridges and the trough of the purchased profiled sheet
• Determine the flat areas on the valleys.
• We measure the distance between the two extreme sites.
• We add to this value 6 millimeters. Since the steel pipe of rectangular cross section has roundings on the edges, then we give 3 millimeters per side.
• This will be the width of the future frame.
• We add 20 mm to the frame width (two gaps of 10 mm).
• This will be the distance between the pillars. (width of the opening of the gate).

Pillar installation

It is best to install wicket pillars with new knowledge (see How to make a wicket for the fence itself).

So:

• It would be convenient to cut the width pattern of the gate opening from an unnecessary board.
• It is best to concrete both pillars at once.
• If there is a welding machine, then we weld the reinforcement to the underground part of the pillars.
• You can grab fittings and a couple of places aboveground parts.
• We install in the prepared ditch.
• Fill the concrete.
• As a template, you can use the frame of the gate. In this case, we add a board with a thickness of 20 mm to it and fasten it with wire to the posts. But splashes of concrete can stain the surface.

Frame welding

Not every man knows the art of welding. If you have never studied this, it is better to entrust the work to a professional. But you can check the professional.

The profiled sheet is relatively light, so the gate will also be light. As the material of the frame, you can use a steel pipe of rectangular section 40? 25 or 50? 25, with a wall thickness of 2 mm and above.

1. Now professionals have a lot of tools., including band or circular saw blades for metal with swivel head. Therefore, it is better to cut the frame piping by a mustache, that is, 45 °. It looks more beautiful and will not allow water to get inside.
2. We put the details of the strapping and cross member on the welding table, fastened with clamps to the table.
3. First do the tack. This is actually spot welding, which allows you to align the diagonal.
4. Careful hammer blows trim the diagonal.
5. Check the diagonals.
6. Secure with clamps.
7. Boil the seams.
8. Let cool.
9. Remove clamps and turn the frame. On the other side again fasten clamps.
10. Boil the seams and let cool.
11. We clean the weld seams.
12. Gruntuem and beautiful.

It should turn out like this:

• Optionally, you can also weld the kerchiefs in the corners, the plate for installing the lock and strut. But it is quite possible not to do this.
• If the parts are rusty, then you first need to clean the rust and degrease the weld.

Pay attention: If it is necessary to weld under construction conditions, then as a mounting (welding) table, you can use pieces of heavy steel channel or I-beam, for example No. 24.

These beams must be installed on the ground or on the floor strictly horizontally and fix the parts to be welded to them with clamps. If the beams are installed unevenly, then the frame will be a curve (propeller).

Fixing profiled sheet

Brigades of builders and construction organizations love to fix corrugated screws with self-tapping screws.

• Often use screws with a drilling head.
• For builders it is very convenient and fast.
• Screws paid by the customer.
• Spend little time.

Money received and left for the next object. And you have problems. Any attacker calmly with a wrench or pliers unscrew the screws and penetrate the site.

There are cases, especially in winter, when there are few people at the sites. Dashing brigades enter the ZIL-131 or KAMAZ-4320 from the side of the field and remove them in a row: the gates + wickets + decking their own hands from the fences of empty sections. Not every single neighbor dares to argue with the brigade of large men, and even with the glands in their hands.

Therefore, we recommend that you use the rivets. Dump - connection is not collapsible. If you have a rectangular pipe as a vein, then the head of the rivet is hidden and it is impossible to disassemble the fence without damaging the decking.

Professional sheet cutting

When the gate and the gate are made of a professional sheet with your own hands, in no case do not cut the flooring with a grinder or other abrasive tool.

• In the place of abrasive cutting there is an extreme warming up of the metal.
• Here zinc, plastic coating and all intermediate layers burn out.
• Therefore, the corrosion process is accelerated many times.
• Sparks flying around also spoil the protective coating.

Only scissors on metal or jigsaw. In those places where you can touch with your hand, for example, in the casing of the gate, it is better to pass the cut edge with a fine sandpaper to remove the burrs.
