Equipment for the production of steel doors on the automatic
In order to provide a home with a real fortress, it is necessary to block the entrance to it with reliable metal doors that will protect against uninvited guests, noise from the street and cold winds. Entrance metal doors are a standard requirement made today by every inhabitant of their own homes. What equipment for the production of steel doors used in their manufacture, prompts article.
Methods for manufacturing metal doors
In the manufacture of metal doors, first of all, the technology of their production is determined. This sets the speed of the process, the design features of the product, the accuracy of fitting parts and the quality of the design.
Doors can be manufactured in three ways:
| A method of manufacturing a metal door | Process features |
| This method uses manual labor with minimal use of equipment. Disadvantages of the approach:
The main advantage of the method is the ability to manufacture doors for complex special projects. |
 | Products are manufactured in a fully automated way using robotics. This minimizes costs in the production of metal doors, and ensures maximum quality of the finished product. On the automated line you can receive up to 600 ready-made doors per day. Disadvantages of the process:
|
 | When combining manual and automatic labor, the use of semi-automatic lines is foreseen, with the fulfillment of some works manually. Thus, it is possible to obtain a product with higher quality than the analog produced by the artisanal method, but this option is inferior to the automatic manufacture of metal doors in terms of speed and accuracy of the resulting structures. Up to 20 doors can be made per day. |
The main stages of production
Whatever method is used to make the doors, the production process consists of such mandatory steps as:
- Preparation of materials;
- Frame assembly;
- Welding design;
- Installation of locks;
- Installation of accessories and security elements;
- Filling the space inside the structure;
- Covering and painting doors.
Materials for production
Metal doors can be made of specialized varietal materials: corners, pipes of rectangular cross-section or curved profiles. In the latter case, certain profiles are formed from sheet metal. The thickness of the sheet should not exceed 2 mm.
Tip: Do not use a large sheet thickness. In this case, very heavy doors are difficult to open / close, hinges will quickly wear out, due to the high load on them.
Necessary hardware and security features:
- Hinges: hidden or mounted (see Hinges for metal doors - the nuances of choice). For doors weighing up to 70 kg, two loops are enough. Armor design is better to mount on 4 loops.
- Padlocks for locks from durable metal with a thickness of 1.5 to 4.5 mm, mounted on cylinder-type and lever-type locks. These elements protect the locks from drilling. Armored plates can be laid on, mortise, magnetic, classic.
- Pins against hacking. These small devices are located on the door leaves and enter the frame holes when the doors are closed.
- Eyes of any type.
- Signalingwhich can be autonomous, console.
After getting acquainted with all the elements of the construction of metal doors, you can decide what equipment is required for their manufacture.
Equipment for producing blanks
Before using metal for the manufacture of doors, you must:
- Sort it;
- Check marking;
- Determine the presence of deformations;
- Remove corrosion and scale.
Next is cutting sheet metal. For this, the center of the part and scoop on the sheet are applied to the dimensions of the parts (templates can be used).
For cutting metal used:
- Guillotine shears, saws, presses;
- Stationary machines with hand torches or gas cutting;
- Laser, plasma cutting.
For processing blanks in the manufacture of the necessary parts, bending equipment is used. In this case, under the pressure of the press, the metal sheet is given the desired shape: a standard rectangular or arched model. To obtain the arched profile of the upper part of the door, the workpiece is passed through a rolling machine. After rolling, the profile is cut into the desired areas.
Burrs are removed from the blanks. This is done manually with a file or with a special sawing machine.
Then the blanks are sent for punching holes of different diameters for the installation of locks and accessories, according to prepared cutting cards.
Door assembly and welding equipment
Tip: For the assembly of the door leaf should use the method of resistance welding to eliminate the deformation of the blade and to ensure the absence of welding seams.
Instructions for assembly and welding of the door:
- When welding sheets to the frame, an indent of about 20 mm is left on the front side, which will act as a door to the door;
- To increase the rigidity of the web structure, special stiffening ribs are installed;
- At the same time with the stiffeners, door locks are installed in special “technological pockets”;
- Between the door leafs, a compactor made of a non-combustible basalt plate is mounted;
- The hinges are welded to the assembled door, with their own hands. At the same time it is necessary to observe the required clearances between the leaf and the door frame.

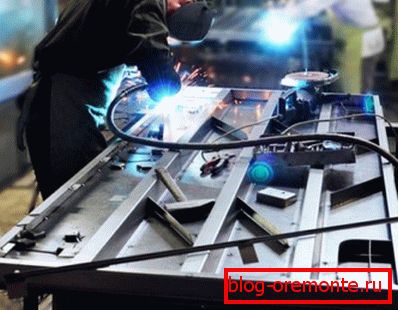

The photo shows the equipment used for the manufacture of metal doors in the production shops of the plant.
To better present the whole cycle of manufacturing metal doors, to get acquainted with the work of the equipment, it is worth watching the video in this article.
Processing door paint materials
Assembled metal door enters the area for painting. The coating is applied to a well-cleaned and degreased surface.
There are three main methods of applying paint:
- Jetting;
- From pneumatic spray;
- Spray paint in an electrostatic field.
Paints of various colors are used as a coating. Usually it is: nitro paint, powder, hammer or graphite. This allows you to get a good door protection against corrosion and minor mechanical damage.
The use of special equipment for the production of doors, allows you to get a high-quality construction that ensures the use of the design in its original form for many years.
