Doors-shutters in the interior of the room

Simple, and at the same time beautiful, can look modern doors, blinds. This is due to the originality of designs and diverse design. In addition, the constant air circulation, carried out between the lamellas of the door, expands the space of the rooms, improves their microclimate. On the features of products, will be discussed in the article.

Door types

The peculiarity of the louvered doors is their unique design: a rigid frame and a set of slats. The angle of inclination of the horizontal elements is chosen so that they do not overlap. However, this arrangement of the slats hides everything that happens in the room from prying eyes, ensuring good air circulation.

Louvre structures usually have a rectangular shape, but you can order or manufacture them yourself:

• Polygonal.
• Square.
• Semicircular.
• Any other form.

Fastening the frame for the slats can be performed on standard hinges, or mechanisms used in the coupe systems.

Louvred doors may have:

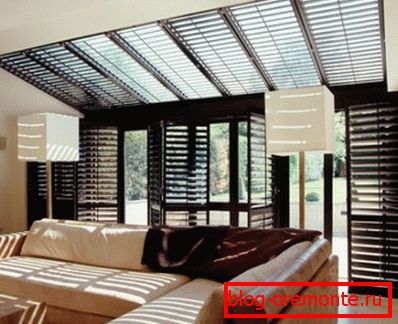

• Movable blinds. This is the most universal option in which you can change the position of elements. This is a rather complicated construction, so its price is quite high.

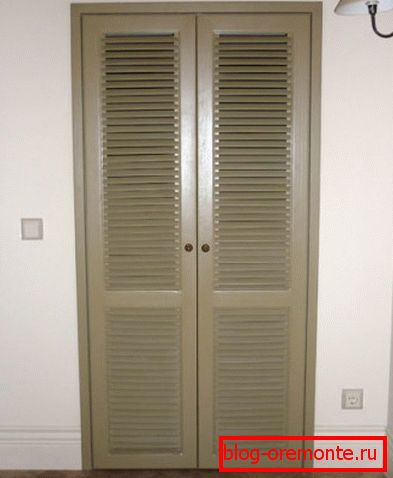

• Fixed blinds with a fixed position of the slats, as in the photo, providing a view of the room from one point.

By design door blinds are:

• Horizontal.

AT дверной раме ламели устанавливаются горизонтально. Такие конструкции часто используются для небольших шкафов. Между ламелями можно выбирать разные размеры, что зависит от предпочтений заказчика.

• ATvertical.

Vertical slats are installed on the door frame.

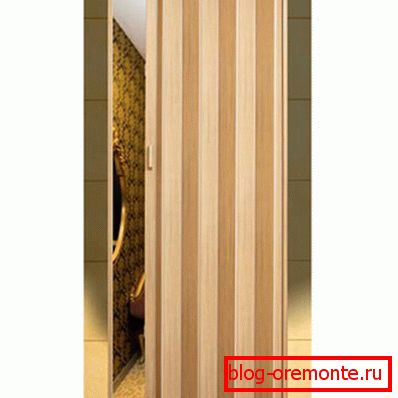

• Doors-garmoska.

They are installed as door partitions when decorating the space of rooms or for wardrobes.

Advantages and disadvantages

The device louvered partitions instead of doors, has a lot of advantages.

AT таблице указаны основные плюсы и минусы конструкций:

Application area

Louvre doors can be:

• Street.

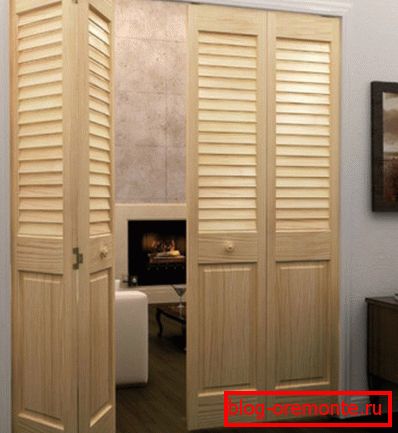

• Interroom.

• Furniture

• AT гардеробной такие изделия обеспечат доступ воздуха, что особенно важно для натуральных материалов:

1. furs;
2. skin;
3. silks.

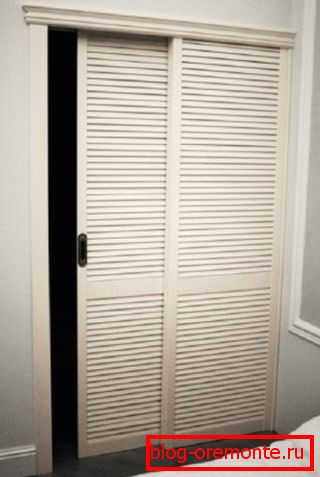

With periodic ventilation, the mole will not wind up in the room. The material for the slats can be any, including fabric. Particularly stylish and appropriate in any interior look sliding doors.

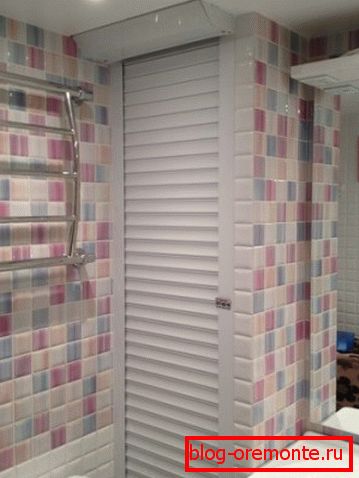

• Blinds instead of the door to the pantry.

ATозможность приоткрывать ламели, предотвратит появление неприятных затхлых запахов в помещениях, где нет вентиляции. Полоски из алюминия на жалюзийных дверях, дополнительно окрашенные эмалью высокого качества, предохранят конструкции от образования коррозии из-за повышенной влажности и перепадов температуры.

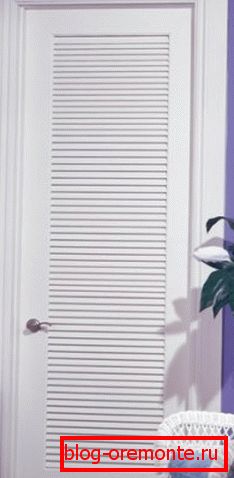

• In the bathroom.

Here they provide ventilation to the room, which reduces humidity and prevents condensation from forming. These can be plastic slats or louvered aluminum doors. White louvered doors will go well with all colors of tiles and plumbing.

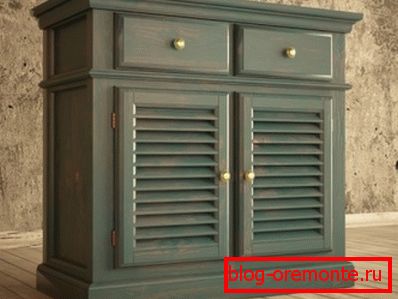

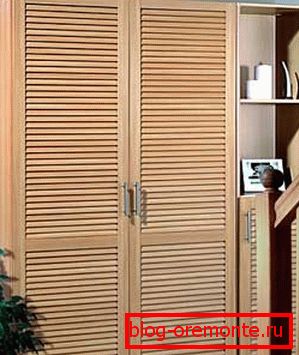

• Doors in almost any furniture. In the kitchen, they provide moisture removal, because of wet dishes, in other cabinets will be ventilated laundry and other household belongings.

Materials for production

Tip: When purchasing louvered doors, you need to pay attention to the material from which they are made.

ATыделяются три типа таких конструкций:

• Plastic doors. Most often, such plastic products are a folding option, which is otherwise called a door-accordion.
• Jalousie doors from the array.

Как правило — это двери с неподвижными ламелями, расположенными с некоторым наклоном. Benefits таких дверных конструкций — их довольно просто изготовить самостоятельно. AT этом случае, практически все деревянные двери легко можно оборудовать ламелями.

• Metal doors, blinds for the garage.

Such structures are the best option in the absence of the possibility or the place of installation of conventional sectional doors. In addition, it is the fastest option to close the garage opening.

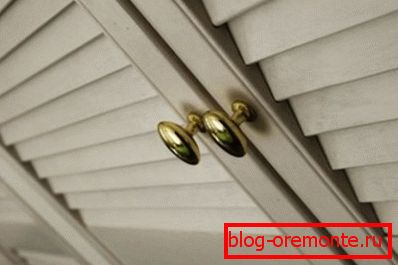

• Doors louvered MDF.

MDF can:

1. covered with enamel is the most popular option for the manufacture of louvered doors. It is a smooth, easy-to-handle and inexpensive material;
2. покрываться шпоном. AT этом случае материал имитирует массив дерева, но со значительно меньшей стоимостью. Шпон придает изделиям натуральный вид и большую прочность.

Manufacturing principle

Despite the complexity of manufacturing, in the home to assemble such a design is possible. A better way to present the whole process will help the video in this article.

This will require:

• Boards, for assembling the frame, with dimensions:

1. width from 100 to 150 mm;
2. 40 mm thick;
3. length - 2 meters, in the amount of 2 pieces;
4. The length of the width of the door leaf - 3 pieces.

• Bars for the manufacture of blinds, section 30x30 mm.
• Клей ПATА или современный высокоэффективный клеевой состав, используемый для древесины.
• Self-tapping screws or confirmatics.
• Заглушки, или смесь опилок с клеем ПATА, для маскировки шляпок крепежных элементов.

Tip: For assembly, preference should be given to plugs. This will facilitate the replacement of the lamella, broken during the operation of the door.

Door assembly procedure:

• Собирается рама дверного полотна. For this:

1. two long and two short boards, a rectangle of door leaf is formed;
2. in the center of the frame is inserted transverse web, which increases its strength.

• Blinds gather. This is a frame construction mounted from 30x30 mm bars:

1. preparations for a frame are prepared;
2. inclined holes for inserting the slats are cut in the side elements;
3. the frame is connected with carnations or screws;
4. glued slats blinds.

• The door leaf is going to:

1. A central lintel is docked with the two side elements of the door leaf, a structure resembling the letter “H” is obtained;
2. Blinds are inserted from below and above. This should be done carefully, lightly tapping with a wooden mallet, so as not to break the structure consisting of thin wooden elements;
3. after installing the blinds in its place, put the top and bottom of the leaf for the door.

Louvers inserts can be:

• Solid, located across the entire height of the canvas.
• Consist of two parts.
• If necessary, in four parts.

There are several options to decorate louver doors. It can be painting, pasting veneer.

Подробней узнать об изготовлении ATы можете из видео:

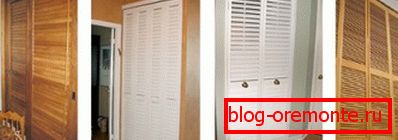

Alteration of standard linen in louver doors

A simpler version of the manufacture of doors with blinds is to remake the existing door leaf, replacing the decorative part in it with lamellae.

This can be done in three stages:

• Removed decorative insert. The glass from the canvas is removed quite simply by removing the glazing beads in the following sequence:

1. lower;
2. lateral;
3. top.

This will ensure safe glass fallout.

• ATо внутреннем контуре изготавливаются наклонные прорези. Для этого ручной фрезой вырезаются углубления для установки ламелей. При этом необходимо правильно рассчитать месторасположение и угол наклона пазов.
• ATставляются ламели. Для надежного крепления, лучше применять клей ПATА.
• Ordinary rail is stuffed with small studs around the perimeter of the blinds. This will hide the ends of the slats and the holes for them.

A simpler option is to install standard adjustable shutters on existing doors.

For this:

• Removed the inner part of the canvas.
• Ugly inner butt is decorated with furniture melamine ribbon.
• AT получившийся проем устанавливаются обыкновенные горизонтальные жалюзи.

Louver doors with their own hands to make quite simple. Everyone chooses the technology of their manufacture. The main thing is that they have an attractive appearance and fit the interior of the room.
