Adjusting metal doors - what needs to be done

04-01-2018

Doors

Metal doors today are widespread due to its high performance. In addition, metal-plastic doors are aesthetic, and harmoniously fit into almost every interior, which makes them even more popular and popular.

Doors of this material today are in most residential, office and industrial areas, so many useful information on how to adjust the plastic door.

Common problems that can be fixed by adjusting the door

So:

Difficult to turn the handle. В этом случае устройству понадобится смазка. Смазку необходимо будет нанести на все подвижные элементы конструкции — прижимные площадки, эксцентрики, петли и прижимные механизмы (см. Adjustment прижима пластиковых дверей своими руками). Для проведения данной процедуры понадобится масленка с обыкновенным машинным маслом. Производится смазывание кисточкой либо ватной палочкой.
Those who installed metal-plastic doors must know how to adjust them, because these skills will definitely come in handy. Another common problem is the appearance of drafts. In other words, the tightness of the metal-plastic door is broken, it starts to blow from under it. This problem is eliminated by adjusting the sash clamping flap.
The middle part of the window began to touch the frame. The reason for this is usually a vertical or horizontal displacement of the sash. To resolve this problem, you must move the sash horizontally or vertically in the desired direction.
The bottom of the sash began to touch the frame. The cause of this problem is most often in the slack of the sash. You can eliminate it by using one of the vertical or horizontal regulators.
How to adjust metal doors, if the handle is loose? This problem is solved by turning the plate located at the base of the handle 90 degrees. Screws tighten with a screwdriver. There is one more way - a special plate of the ventilator regulator (comb) can be installed under the base of the door handle.

We regulate a metalplastic door - an order of work

Anyone who knows how to adjust metal doors, can carry out this procedure on their own, while saving money to call a specialist.

In order to perform the adjustment by hand, it is only necessary to study the basic principles of adjustment of this type of doors and general information about breakdowns and how to eliminate them. And, of course, you need the appropriate tools.

Basic information on the adjustment of plastic doors

So:

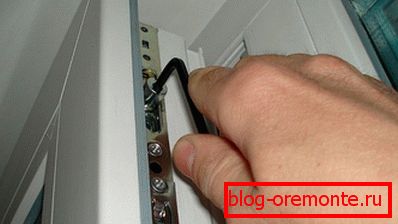

For adjusting, use a 4 mm hex key (number 40).

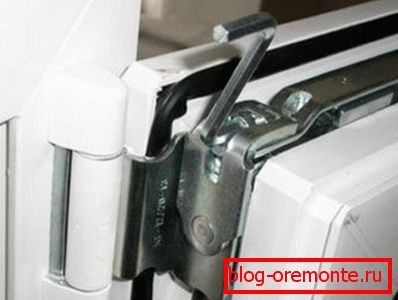

Horizontal adjustment of the metal-plastic door is performed using the upper and lower hinges. For the implementation of these works in the hinges there are special holes for the hexagon. To adjust the top loop, you first need to open the door.

When the hexagon rotates in a clockwise direction, its flap is attracted to the loop. At the same time, the bottom of the metal-plastic door opposite the hinge rises. Accordingly, if the hexagon is turned counterclockwise, there will be a gradual removal of the sash from the hinge, and the bottom of the door, located on the side of the opposite hinge, will be lowered.

Adjustment с помощью нижней петли может выполняться с внутренней стороны при открытой двери, либо с внешней стороны, когда дверь находится положении «закрыто».

The methods of adjusting metal-plastic doors listed above make it possible to eliminate the bevel or to move the frame (an adjustment stroke of ± 2 millimeters).

Vertical door adjustment

Adjustment прижима створки

So:

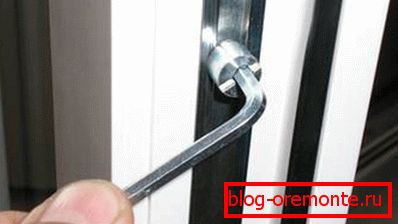

In order to adjust the doors vertically use the bottom hinge. The adjusting hexagon is located under the cap of the lower hinge. In order to access the hexagon. Cap bottom sang need to fold.

Eccentrics with each turn of the handle will go for special clamping, which are located around the perimeter of the frame.

On the eccentric is a mark on which you can navigate by performing the clamping sash.

To loosen the door, it is necessary to rotate the hexagon counterclockwise, to increase the pressure, respectively, in a clockwise direction.

Sometimes there are varieties of eccentrics, to adjust which you need to use pliers (or a wrench).

For clamping, you can also use plates located on the plate of a metal-plastic door.

The clamping mechanism is on the doors and from the hinge side. It is regulated by means of a hexagon. The more the tongue extends, the greater the pressure. For doors with left hinges, the hexagon should be rotated counterclockwise to extend the tongue.

The clamp can be adjusted depending on the season. In winter it can be strengthened, in the warm season it can be weakened.

Adjustment прижима петель

So:

Depending on the features of the door hardware, the adjustment of the clamping force is carried out for both hinges, or only for the top hinge. At the top hinge, the clamp is adjustable only in flaps.

In order to tilt the door in the "open" position, you must press the lock, while simultaneously turning the knob into the ventilation mode. You can see the procedure for carrying out this procedure in a video showing the entire process of adjustment.

Those who want to know in all subtleties how to regulate metal-plastic doors should take into account that a door lock can be located on the door, therefore tilting of the sash is possible only in the “closed” position.

Of all the varieties of modern doors (see Doors in the interior of the apartment), the most profitable and reliable in operation are metal-plastic doors, the adjustment of which is available even to a non-professional.
