Wall chasers for aerated concrete: structural features and

Building materials based on cellular concrete are characterized by such advantages as low weight and comparative ease of machining. Thanks to these properties, it is possible not only to build construction objects in a short time, but also to assemble complex engineering communications in a hidden way, using electric or manual wall chaser for aerated concrete.

In this article, we will talk about what these tools are, what their design features are, and what their scope is.

Equipment for laying hidden communications

Главной особенностью газобетона является пористая структура. С одной стороны, наличие большого количества пор - это существенный недостаток, так как смонтировать те или иные навесные конструкции посредством шурупов и прочего крепежа не получиться (читайте также статью «Подбетонка: что это такое и как она делается правильно»).

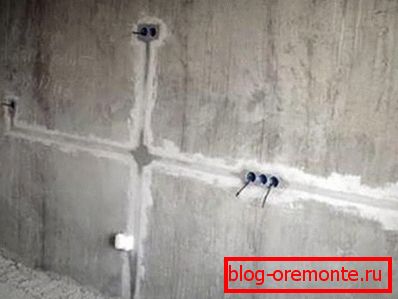

On the other hand, the porous structure of the material is an advantage, since using the wall chaser you can make special grooves in which you can place a corrugated pipe. Having placed the communications in the wall, the groove can be bricked up with mortar, and the wall will look like new.

Of course, it is possible to make a recess in the wall with various improvised devices including a hammer and a chisel, a perforator, a grinder with a special disc, etc. However, all these improvised means have a number of drawbacks, including noise, dust, a strong impact, laboriousness of work and, as a rule, a strong curvature of the groove.

These problems can be avoided by abandoning the use of available tools and using a wall chaser for concrete (burs). Using a special tool, you will minimize the level of noise and vibrations, and in addition, the dust from under the cutter will be an order of magnitude less.

Important: If you plan to work using available means for reasons of economy, keep in mind that the price of a special device is low and certainly will not affect the cost of construction.

Main varieties

There are two main types of furrowers on the market, namely, hand-held devices and power tools. In accordance with the design features, the two categories of equipment are distinguished by the degree of performance and price.

Manual Wall Chaser по газобетону стоит дешевле электрического аналога, но вместе с тем он демонстрирует меньшую производительность и сложнее в применении. Бороздодел с электроприводом проще и результативнее в эксплуатации, а потому с учетом цены приобретается для профессионального использования преимущественно на больших объектах.

Consider the main structural features of the other modifications.

Electric trench

This type of equipment is very versatile, since such devices can be equally used for working with aerated concrete blocks and with more solid surfaces, including brickwork, cement plaster and reinforced concrete structures.

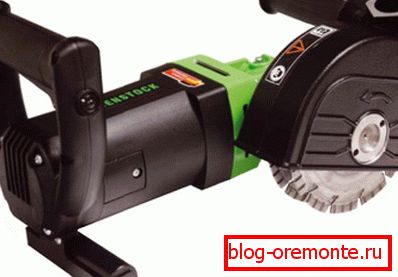

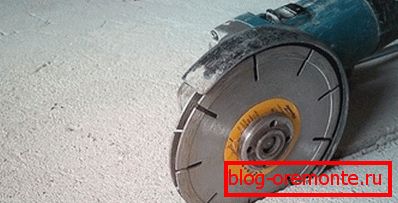

Using an electric wall chaser is, in fact, cutting reinforced concrete with diamond circles. In the tool, as a work item, two disks located on the same axis are used. The width of the ditch depends on the distance between the disks. Depth, in turn, is determined by how deep the discs cut into the work surface.

Important: Despite the simplicity of the tool, for its successful application requires appropriate skills.

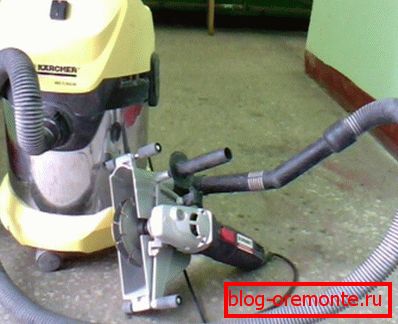

An important feature of electric furrows is increased dust separation. Therefore, the use of the device must be duplicated by using an industrial vacuum cleaner.

Once again, the operation of units with electric drive is justified only when working on large construction sites, while the use of these devices in private construction is unprofitable and impractical.

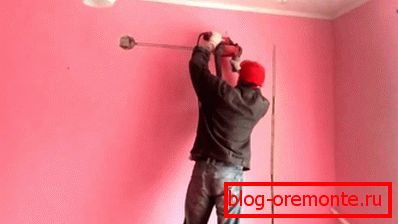

Another point that will help you determine the selection of a tool is the noise level. The electric motor, in combination with cutting discs, produces a lot of noise. Therefore, for laying wiring in an already operated building, such equipment, like diamond drilling of holes in concrete, cannot be used.

Important: Taking into account the volume of dust and noise in the process of working with a wall chaser, the use of personal protective equipment, including goggles, headphones and a respirator, is mandatory.

What to look for when choosing an electric wall chaser? First of all, you need to familiarize yourself with such parameters as the maximum and minimum width, and the depth of the groove, the method of adjusting the distance between the disks, the maximum and minimum diameter of the disks used, the number of revolutions.

The price of a motorized curtain cutter depends on the functionality, equipment, equipment performance and brand popularity. On average, the cost of the device starts from 4 thousand rubles. In addition, from time to time it is necessary to purchase discs for a wall chaser for concrete, which are erased as they are used.

Important: On the market are presented models of furrowing with both automatic and manual adjustment. The difference lies not only in the comfort of operation, but also in the cost, since the price of devices with the automatic adjustment function is much higher.

Manual Wall Chaser

In those conditions when the power tool is difficult to use, use a manual counterpart.

The use of manual wall chaser is the best option from the point of view of a private developer. And this is not surprising, since the price of this equipment starts from 450 rubles, which you will agree cheaply. In addition, the manual models practically do not create dust and noise.

Important: Unlike an electric driven wall, manual modifications are used only for cutting cellular concrete.

The design of manual installations is extremely simple, because it is just a piece of pipe with firmly fixed handles. A cutting tool is fixed on the straight section of the pipe, which during operation is mechanically driven into the thickness of the material being processed.

Varieties of manual furrow

Manual type furrows, in accordance with the shape of the base, are of two types:

• modifications for working on horizontal surfaces;

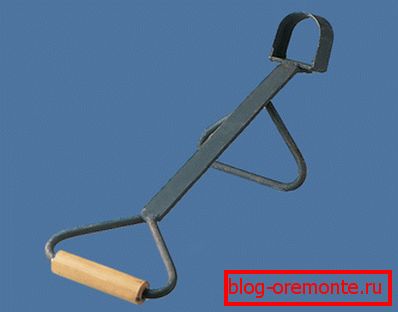

• tool for processing vertical surfaces.

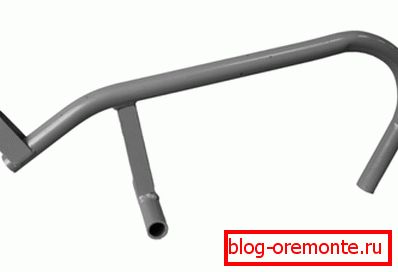

The method of application of those and other devices is similar, and the difference lies in the configuration of the cutting part and the base. For example, a wall chaser for machining horizontal surfaces is equipped with a special curved handle. At the same time, the handle of the device for working with vertical walls is straight.

These differences are not accidental, as they allow to exert the maximum mechanical load on the surface to be treated with relatively small physical effort.

Buy or make yourself?

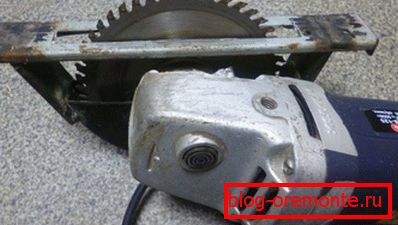

Известно несколько способов изготовления штробореза своими руками в домашних условиях. Преимущественно все рецепты основаны на применении болгарки в качестве режущего инструмента (см.также статью «Деформационный шов в бетоне: необходимость применения и особенности реализации»).

Does it make sense to make such a device using an angle grinder?

Independently collect an electric wall outlet does not make sense for a number of reasons.

• Homemade wall chaser with low productivity is characterized by the same drawbacks as a full-fledged factory-made power tool. That is, dust and noise will be provided.
• In the absence of an industrial vacuum cleaner, you are unlikely to be able to organize an effective "fight" with dust.
• Using a conventional angle grinder (Bulgarian) you can hardly fix two cutting discs on the same axis. Consequently, ditch cutting will be carried out at least in two passes.
• Due to the lack of the possibility of a full fixture of two cutting disks on the same axis, it is impossible to precisely adjust the width of the ditch, which negatively affects the quality of the finished result.
• The use of a self-made construction is at least not safe, since improvised tools are assembled according to untested methods..

From the above, we can draw the following conclusion: if the length of the ditch for the communications tab is small, then there is no point in acquiring a power tool, much less trying to build it from the grinder.

If you still want to save money, you can apply a piece of steel pipe with sharpened walls on one of the cuts. Having installed the end of the pipe with an inclination of 30 degrees to the surface, we apply rhythmic blows with a hammer along the other section and lead the ditch in the right direction.

Important: In the process of work one should not forget to shake out particles of cellular concrete from the pipe.

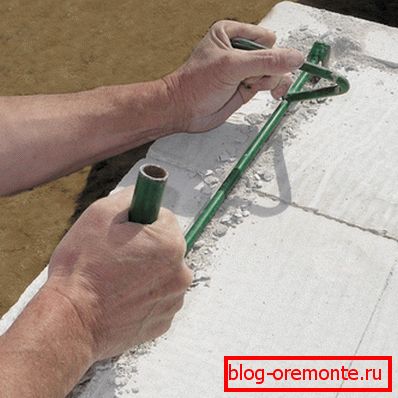

Features of the manual wall chaser

The technology of using manual chaser is not as complicated as it may seem.

We work as follows:

• we apply the tool with the cutting part to the surface;
• use the left hand to grab the handle that is farther from the cutting part;
• with the right hand, take up the other handle and press;
• gradually draw the device along the line of the future ditch;
• so that the ditch is flat, an approximate line should be drawn on the surface in advance.

Conclusion

Инструкция применения бороздодела несложная, и следуя вышеприведенным рекомендациям, вы наверняка справитесь с поставленной задачей самостоятельно. Если остались какие-либо вопросы, посмотрите видео в этой статье (см.также статью «Пигменты для бетона: основные характеристики, сфера применения и методы самостоятельного приготовления»).
