Projects of the house from a bar 6х8 with a penthouse and

Often, the owners of private plots are faced with the issue of building a comfortable and spacious house, in which all family members would find a place, but at the same time space was saved on the plot. In this case, the best solution is semi-mansard projects of a house from a 6x8 bar. Next, we consider the features of such a structure.

House designs from timber 6 to 8 are compact, despite the fact that the total area of ​​the room is quite impressive. In this case, the cost of such housing is significantly less than that of concrete or brick buildings.

Even the price of wooden logs from the rounded log will be higher. The speed of construction of such a structure can be inferior only to frame structures.

Project advantages

The project of the house from a bar 6 by 8 has a number of advantages:

• With the observance of construction technologies, the house turns out to be strong and durable, its service life can reach 100 years.
• Construction will cost 50 percent cheaper than a brick or stone counterpart. In addition, the log house will save a significant amount on materials for insulation.
• A month after the start of construction, the building will be ready for operation.
• Since houses are built of wood, this project provides good air circulation and a constant level of humidity. Therefore, in the home there will be no mold and mildew.
• Living in a house from a bar has a positive effect on health. This is due to the fact that the tree produces volatile and resin, which has a calming and relaxing effect on humans. Wood has a particularly beneficial effect on people with disorders of the nervous system, problems of breathing and the cardiovascular system.
• The project involves the construction of houses exclusively from environmentally friendly materials.

Features of planning

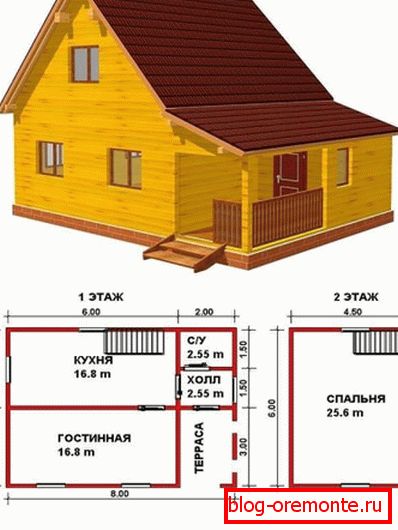

Ground floor

For the best distribution of the area of ​​the first floor to the multifunctional zones, it is necessary to combine all the technical premises in one small. These include the bathroom combined with the boiler room, changing room, dressing room and flight of stairs. Experts recommend combining all these elements in the hall, which is adjacent to the central entrance.

Tip! If you decide to perform construction on your own project, first of all you should study the existing projects of houses from timber 6 by 8, which are launched for sale by various companies. This will allow you to leverage the best of their moments.

In this case, the project of the house of 6x8 lumber will include a small vestibule with a staircase to the second floor and several doors. The only drawback of this solution is the lack of light in the lobby; therefore, it is necessary to organize an artificial room. But for that there is an opportunity to attach a terrace on which you can organize a small recreation area in the summer.

As a rule, in such houses on the ground floor there are only common areas. To save space, rooms of similar functionality are combined within the same room. For example, a dining room can be combined with a kitchen, a living room with a playroom for children, etc.

Second floor

Most often projects of houses from a bar 6х8 on the second floor contain bedrooms. If the family is small, then two spacious rooms will be enough. If the family is large, then you can create three or four rooms with a smaller area. The arrangement of the balconies will allow to slightly increase the size of the bedrooms.

Tip! Fans of outdoor activities can make a gym in the attic, set there a billiard or tennis table.

Project home bathrooms

Recently, bath projects from a 6x8 lumber with an attic, where the second floor is reserved for residential premises, have become very popular. Such a structure will be an excellent option for a country house, when you want to have a real Russian bathhouse, but you also need to save space on the site and money.

If you decide to give preference to such a structure, then you should take into account that the project of a bath from a 6x8 bar with a residential attic has a number of features:

• The building must be equipped with a ventilation system in order to eliminate the increased humidity in the residential premises. In addition, you will have to be especially careful to perform waterproofing.
• In the warm season there is a problem of heating the whole house in the process of cooling the steam room. Her decision could be the installation of air conditioners.
• The presence of a wood stove increases fire safety. This requires increased attention to the furnace and its operation.

Tip! Expand the area of ​​the first floor can be using the veranda, as shown in the diagram. Such a solution will also keep the heat indoors.

On the ground floor of such a structure, in addition to the steam room and the washing room, you can place a kitchen-living room. In this case, on the attic floor there will be more space for living rooms.

Features of construction

The best material for the construction of a house or a bath is a profiled bar 150x150 mm. If you want to expand the living space, you can make the walls more thin - use a timber section of 100x150 mm. Such a solution, taking into account the semi-attic floor, will increase the living space by about 3 square meters.

True, the use of a thinner timber requires wall insulation, but it can be done from the outside. For example, you can trim the walls with vinyl siding. The voids are filled with insulating material.

As for the foundation, a strip foundation is used for the above projects, not heavily recessed. If the soil on the site is strong enough, then you can use a lightweight version of the foundation for a log house - cement blocks.

A support for interfloor overlappings is also a wooden bar. At the same time, for the floor of the attic and the ceiling, you must use a heater with a good vapor-transmitting ability. For example, you can use ISOVER or URSA.

Interior partitions do not have to be made of wood. For these purposes, suitable sheet material, which is attached to the iron profile, for example - drywall.

Such walls are not difficult to do with your own hands, the main thing is that they are bilateral. The void between the sheets must be filled with soundproofing material.

Since the area of ​​the house 6 * 9 is small, the roof can be gable. This will significantly simplify the truss system. As the roofing material is most often used metal or ondulin. Laying these materials does not pose any difficulty.

Heating

Most often in houses from a bar use individual water heating. The principle of its operation is extremely simple - the energy that is released in the central boiler when burning fuel heats the water tank. Further, hot water circulates through the heating system and thereby heats the whole house.

As a rule, specialists install the system, as it requires separate calculations. Therefore, one installation instruction will not help you to properly perform the heating system.

If the project of the house implies the presence of a bath, then on the first floor there may also be a stove, the chimney of which passes, usually in the center of the attic.

Tip! When installing the boiler, it is possible to provide heating in other rooms, for example, in a bath, if it is located separately.

Conclusion

Thanks to a successful project, reliable and at the same time cheap construction materials, you can build a warm and spacious house for little money. At the same time, such a project would save additional square meters on the plot, for example, for constructing a greenhouse or garden breakdown.

Additional information on this topic can be obtained from the video in this article.
