Projects of houses from the profiled timber: useful

06-01-2018
Building

Building of profiled timber is the best option for those who plan to get an inexpensive, environmentally friendly and beautiful housing. This versatile and practical material opens up broad opportunities for the implementation of any architectural idea.

In addition, for example, projects of houses from a profiled bar 9x9 m with two tiers can significantly save land area, while increasing living space inside the room.

Photos of log houses in country style.

The advantages of construction, which is carried out using profiled timber

The convenience of such a building material is that the standard designs of a house from a profiled bar allow you to modify a ready-made layout. This aspect is peculiar only to such types of structures and it is very important when for any reason it is necessary to change the location of the internal partitions, window or door opening.

This list of advantages lumber buildings does not end there.

So, this type of construction has the following advantages:

  1. During the construction of buildings from this lumber, the cauldron is not required because, thanks to the thorn-groove system, the material is tightly attached to each other and after shrinking of the structure, it is as if it “grows together” into one whole. Also available "locks" prevents the penetration of moisture into the home, therefore, the walls of these structures are well protected from rotting. All this largely saves money spent on the purchase of insulation for timber and material for waterproofing.

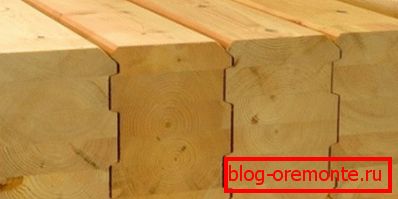

Photos of high-quality profiled lumber with a perfect junction.
  1. Provided that the project of the house from the profiled timber was originally drafted correctly, and the company provided quality material, it is possible to build such housing in one or two seasons. Moreover, design drawings made by professionals are usually so simple that if there is a skill in construction, then any adult will be able to assemble this structure with his own hands as a designer.
  2. For constructions of profiled timber does not require additional sheathing, since natural wood itself looks very attractive. It is enough to process the material with an antiseptic and cover the finished structure with varnish.
  3. Due to the relatively small percentage of shrinkage, such houses can be settled immediately after construction.

In connection with the aforementioned positive aspects, the demand for wooden housing is increasing every day, so along with this there are more and more companies that not only create projects from a profiled bar, but also offer services for the production of this material.

Among such a huge choice, any person who does not possess the necessary information can easily be mistaken. What you need to know the developer of a log house or cottage at the design stage, who chose this type of housing?

What types of projects exist from profiled timber and what should be guided by when choosing

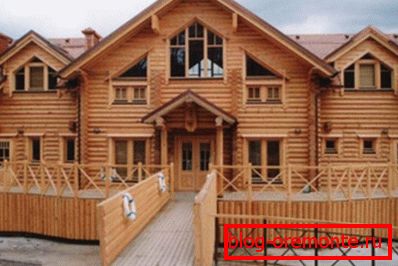

Medieval style log houses.

Before creating any project, the design of the building and its architectural type are selected first.

As for the style of the houses, the profiled profile allows you to give the buildings various images:

  • modern;
  • country music;
  • Swiss chalet;
  • medieval;
  • bavarian.

In terms of form and architectural features, projects of residential buildings of profiled timber are:

  • single tier;
  • multi-tiered;
  • rectangular;
  • square;
  • triangular;
  • polygonal;
  • with annexes and without them;
  • with attic;
  • with multifaceted bay windows;
  • with summer verandas or terraces;
  • with closed balconies.

Note! The final price of housing from the profiled timber will directly depend on which project is selected. So, the model will cost much cheaper than the individual, since in this case it will not be necessary to write fundamentally new documentation.

The project of a single-level log house with a bay window and a mansard.

In other words, using a profiled bar, you can create many different projects that will satisfy almost every taste. But it should be noted that not only this should be guided at the design stage of a log house.

Criteria for choosing a draft log house

In addition to the attractive appearance when choosing a project, you should consider the following factors:

  1. Location of the future home. This takes into account the distance from the city. If the future owner of the house has a transport, it is better to choose a project that includes a garage. It is also very important to pay attention to where the communications take place.
  2. The total area of ​​housing and the number of rooms - depends on the number of households.
  3. The total area of ​​the land plot and the future house should correspond to each other.
  4. When choosing a style, you should consider the design of the nearby buildings and stick to this image, otherwise the owner’s house will look ridiculous against their background.
  5. It is determined in advance whether the building is intended for temporary or permanent residence. In the first case it is more expedient to choose small, light projects.

Features profiled timber, its types and applications

When choosing a project, the developer should also pay attention to what type of timber is included in it. This is very important because this material has a different cross section, and each of them must be used for its own purpose.

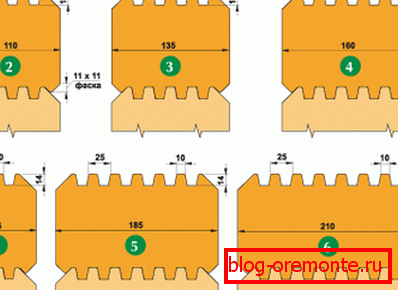

Types of spikes on profiled timber.

Since a profiled bar is made with gash according to the project of each house, then the number of profiles in lumber should also be taken into account.

Manufacturers offer, as a rule, 5 options:

  1. With one gash.
  2. With two gash.
  3. With beveled grooves.
  4. "Grove".
  5. Finnish version (grooves have a greater depth than on other wood).

Note! The deeper the groove and the more the gouges, the tighter the material will fit to each other, which will give the structure uniformity. This will directly affect the strength and appearance of the erected walls.

For lighter buildings, you can use a bar with a few spikes, but to build a house for permanent residence is better from Finnish material or with a comb. You should also consider what percentage of wood moisture is specified in the project drawings, since this will depend on the shrinkage period of the house.

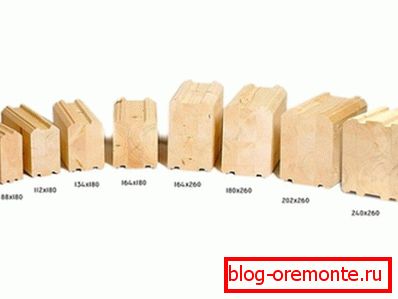

Various profiled bar of non-standard sizes.

Section 100 mm

The existing instruction states that this thickness of wood is suitable for such light buildings as bathhouses, bungalows, gazebos. This type of timber is divided into a section of 100 to 150 mm and 100 to 200 mm. In the first case, usually in one cube of sawn timber with a length of 6 m, 10-11 pieces of timber are produced, and in the second, 8 pieces. As a rule, they make one or two gash.

150 mm cross section

This timber is 150 by 150 mm thick and 150 by 200 mm thick. This type of sawn timber already allows you to grind it in the form of a “comb”, so it can be used to build small houses where you plan to live permanently. In one cube of sawn timber with a section of 150 by 150 mm and a length of 6 m, a little more than 7 pieces are produced, and with a section of 150 by 200 mm - a little more than 5 pieces.

Section 200 mm

The price for this type of timber is relatively higher than the previous versions, since it is characterized by increased strength and more complex multi-tiered structures can be built from it. Such timber is 200 by 200 mm thick. About 5-6 pieces of a finished product 6 meters long come out of one cube. This is an excellent option for regions with harsh climatic conditions.

Tip! Order profiled timber for the project from reliable manufacturers, as the quality and quality of the material will determine the reliability and durability of the building. This should be done after all the details are thought out.

An example of a cheap project log house

The project drawing of a moderately sized log house.

Projects of profiled timber differ in their diversity. But among them there are more successful options. For example, a bunk house of medium size is perfect for an average family, as it consists of 6 rooms and a vestibule.

The first tier is conveniently located living room, kitchen, bathroom and vestibule. On the second floor there are bedrooms and a small hall.

The advantage of this project is that a large plot of land will not be needed to build a house on it, since having a second floor saves usable space. This is a great option for building a cottage or a house outside the city.

In addition, the price of a house built on this project is relatively budget. So, if for this purpose a timber with a section of 150 by 150 mm is selected, then the approximate cost of such a log house will be about 950 thousand rubles.

Photos of the finished house of profiled timber.

Conclusion

Finally, it should be noted that each project of a house from a profiled bar should include basic equipment. The video in this article will help not to be mistaken with the choice of the designer and give preference to a competent manufacturer.
