Projects of baths from timber 4 by 4: a great chance to make

For many dacha owners, building a bath is not just a whim, but to some extent a necessity. What a summer cottage without a bath house, cottagers ask themselves and turn to a construction company for help.

The point is not cheap, so you should listen to some of the recommendations before making a decision about the construction of this structure. For those who want to save, there is the possibility of building a bath with their own hands.

Free wooden bath projects

In the bath you can not only recuperate after a hard day, but also relieve stress, and just cheer yourself up. And in order to build it yourself, it is necessary to select a suitable project for a bath from a bar 4 by 4.

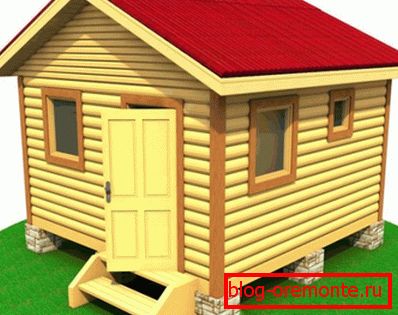

Project №1

Size 4x4 is a traditional option. At the same time, an area of ​​16m2 is completely constructed of wood, preserving traditions and combining them with modern materials and technologies.

The project of a bath from a 4x4 bar will allow not only to organize the space for comfortable procedures, but also to significantly save on construction:

• For decoration of the steam room and door manufacturing, lime or aspen paneling is used;

Note! This material can be used without fear, since the wood is not only dried and well processed, but also has healing properties.

• You can also choose a 4x6 sauna project from a bar, which will allow you to make a small attic and come up with your own layout. However, the thickness of the log for construction will depend on this.

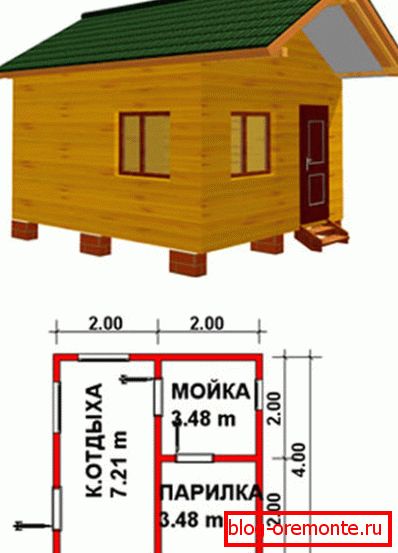

Project №2

This small, but very practical bath is built from a 4x4 bar and has an area of ​​16 m2. In a similar way, projects of baths from a 3x4 bar are created.

Due to its size, this building will perfectly fit even into the construction plan on a small summer cottage. This clever bath is made of profiled timber and is an excellent economical option.

The basis of the structure must include:

• procedure room;
• lounge;
• steam room, for the decoration of which aspen lining of class “B” is used.

Tip! Here it is recommended to lay a special heat reflector, which is the foil.

Due to the fact that the walls in the structure of the grooved timber, they look very similar to the profile of the log, although its price is an order of magnitude lower. The foundation consists of cement blocks.

As for the floors and the ceiling, they are additionally insulated with mineral wool with waterproofing. The entrance will be decorated with steps made of wood.

Typical equipment includes:

• foundation made of cement blocks of 200x200x400 mm;
• a base consisting of double strapping, in which the first and second rows are not planed logs, and genital lags of the same material 100x150 mm in size;
• double floors consisting of draft and finishing floors, as well as insulation for timber;
• walls of profiled timber with a gasket between the rims of flax fiber;
• partitions from the profiled log with atmospheric drying;
• steam room;
• sink with drainage through the floor;
• wooden windows with double glazing;
• pediments made from logs 100x100 or 100x150 mm .;
• roof truss system, using ondulin as a roofing material;
• bath stove.

Basic calculations

Before you begin the construction process, first of all, you should decide on the dimensions of the building.

This will help a knowledgeable specialist who will advise how to calculate the size of the building, depending on the number of people who will be in it at the same time:

• for 1-2 people, an area of ​​3-6 square meters is enough, so the project of a bath from a 3x4 bar is perfect;
• and for 2-3 visitors - 4-8 square meters, for which you can choose the project of a bath from a 6x4 bar.

The area per visitor is taken in the calculation of about 3-4 square meters. The most optimal is considered to be the size of 4 to 4, or 6 to 4. This construction of small dimensions is quite possible to arrange in a small summer cottage.

It is best if within 30 m there will be any water body. Closer to the water source is not worth building, so that the building was not flooded during the flood.

Строительство

Before the beginning of the construction process, as stated in the instructions, it is necessary to level and compact the site, and only after that it is possible to proceed with the construction.

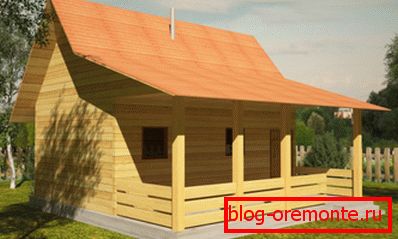

The main advantages of the layout, which offer projects of baths from timber 6 by 4:

• main premises;
• washroom with shower and toilet;
• steam room;
• terrace;
• prebanner.

In addition to the above, in the draft bath from a 5x4 or 4x4 bar, you can include several additional rooms to relax after a hot day and drink tea in the fresh air.

Tip! The terrace should not be excluded from the project, as it will help protect against precipitation.

At first glance it may seem that the size of 4x4 is quite small and it will not be possible to fit all the desired rooms into such an area. This is true, and you may have to abandon any of the rooms, or from the terrace. But at the same time, the traditional Russian steam room will satisfy the needs of all lovers of excellent steam.

Try experimenting. In fact, with a little effort, you can achieve that your small area will decorate a beautiful log-sauna, created by a special project with your own hands. Set a goal, and boldly go to it - your creation will probably soon become a role model and admiration of the neighbors in the dacha.

findings

We talked about some projects of baths, which are used for the construction of timber. We hope that our recommendations will be useful for you, and the video in this article will demonstrate the topic clearly.
