How to make molds for concrete rings and make rings with

Concrete rings are used in a variety of household needs, in particular, they are used for the installation of water supply systems, drainage, sewage systems, sometimes rings are used even in the construction of cellars. Specialized companies are engaged in the manufacture of concrete rings, however, in some cases it is more profitable to make them yourself. There is nothing complicated in this; the only thing is that you need some knowledge and time to make the molds.

Next, we will take a closer look at how to make molds for reinforced concrete rings on our own and use them to make the rings themselves.

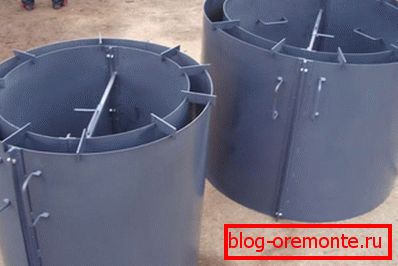

Mold making

По сути, формы (опалубка) представляет собой два цилиндра разных диаметров, один из которых устанавливается ровно посередине другого. Пространство, образовавшееся между ними, заполняется бетоном. Соответственно, от разницы диаметров зависит толщина стенок будущих колец (читайте также статью «Бетонные кольца для канализации: строим простейший септик»).

I must say that you can not engage in the manufacture of forms, and buy finished products. However, their price can be quite high. Therefore, it is more expedient to make the formwork yourself.

To do this, first of all, it is necessary to determine the size of the rings, i.e. their parameters such as:

• Diameter;
• Height;
• Wall thickness.

There are many options for the manufacture of formwork, in particular, you can find recommendations from experts about the use of wooden boards for this purpose, which are filled into circles of the desired diameter.

However, it is easiest to use:

• Metal drums of appropriate sizes;
• Metal pipes;
• Air ducts;
• Also fit plastic barrels.

Now let's take a closer look at how to make a form for concrete rings with your own hands from a metal pipe or barrel.

Outer ring

For the manufacture of external formwork, you must perform the following steps:

• First of all, you need to put on the cylinder two longitudinal vertical lines that will divide it into two identical parts.
• Next, on each side of the marking line, at least two window or door sheds should be installed. Their flaps should be located at the edges of the line, and the hinge connection - strictly on the line. You can attach the sash with rivets or welding.
• Then, on the one hand, you need to cut off the lower caps of the spindles, which will make it easy to disassemble the sheds.
• After this, it is necessary to project vertical lines on the outside of the cylinder.
• Next, using the grinder, you need to cut the cylinder with a thin disk along the marked lines. Perform this procedure very carefully so as not to spoil the sheds.

This completes the production of the outer wall formwork. Now you need to pull out the canopy spindles and open the cylinder. If necessary, the canopies need to be lubricated so that the mold can be easily opened.

Inner ring

Instructions for making the inner form are similar to those described above:

• Initially, vertical lines are also plotted, only this time they do not divide the cylinder in half, but are separated from each other at a distance of 2/3 from the circumference. In addition, they are located on the inside, not the outside.
• After this, the canopies are also installed and the heads of the spindles are cut off, only they are located on the inside of the structure.
• Then follow the projection line on the outside of the cylinder and cut it with a grinder.

Now both forms are ready.

Features of the manufacture of formwork

In the manufacture of formwork must consider the following points:

Note! When removing the product from the mold, the inner wall is first formed and then drawn out of the fresh ring. After this, the outer cylinder is disassembled.

Concrete Ring Making

Once the forms are ready, you can proceed directly to the manufacture of concrete rings.

This operation consists of several stages:

• Formwork preparation and reinforcement;
• Preparation of the solution;
• Fill molds;
• Extract the finished product.

Now let's take a closer look at each stage.

Formwork preparation

So, before you start pouring, you must prepare the forms.

To do this, follow these steps:

• Rings should be placed on a level surface.. The inner cylinder, as already mentioned above, should be located strictly in the middle of the outer cylinder. If the procedure is performed in the summer, the form should be put in a shady place so that the concrete does not dry ahead of time, as this will reduce its strength.
• Next, reinforcement is performed with a special metal mesh, which is installed midway between the cylinders.. If there is no reinforcing mesh, you can use wire for this purpose, which is laid in a spiral during concrete pouring. I must say that it is allowed to manufacture rings without reinforcement, but in this case the wall thickness should be at least 15 cm.
• After that, it is necessary to install several spacer wedges between the cylinders, which will prevent their displacement during pouring..

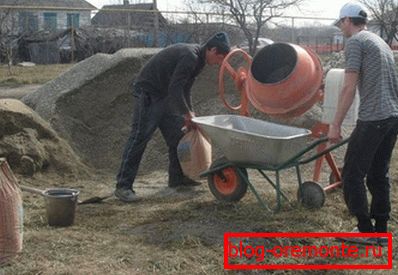

Preparation of the solution

The preparation of concrete is an important step, since it determines the strength and durability of the product, as well as many of its other characteristics. This procedure will require the following materials:

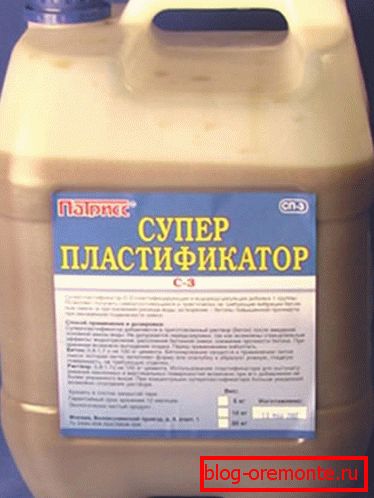

I must say that the enterprises use special vibroforms for concrete rings. But, since in our case the process will occur without any electric vibrators, you need to use a plasticizer that will improve the properties of concrete. This is especially necessary if the product is in contact with water. Instructions on the use of plasticizer and its dosage are on the package.

The process of making concrete is as follows:

• First of all, it is necessary to mix sand and cement.
• Then in the dry mixture, you need to add water, while also added to the composition of the plasticizer.
• Next is added gravel. Before it must be moistened with water.
• The resulting composition should be well mixed in the mixer.

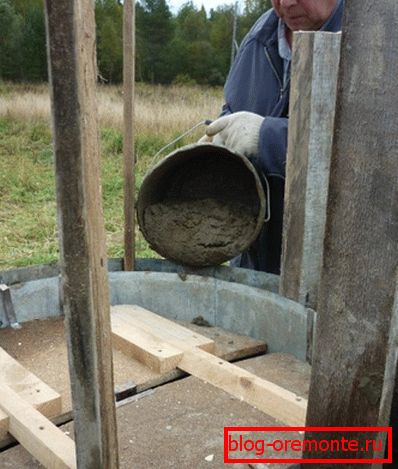

Fill

Getting to work is possible only if the air temperature is at least +8 degrees Celsius.

The procedure is as follows:

• Concrete solution must be carefully laid around the entire circumference to a height of 15-25 centimeters.
• Next, you need to tamp the solution with a thick metal rod. You can use for these purposes and a wooden stick, for example, the handle of the shovel.
• Then the solution is poured another 20 centimeters and also compacted.
• When its level is above average, wooden struts need to pull out.
• Then the solution is poured to the top and compacted. If necessary, concrete must be added.
• After that, the upper part must be carefully leveled. Since the end of the ring will be docking, it is desirable that it be flawless.
• If the filling was carried out in hot weather, the form should be covered with a wet burlap and moistened periodically.
• At optimum humidity and air temperature, the formwork can be disassembled after 3-4 days according to the scheme described above. At the same time, the ring cannot be moved or rolled over, since the concrete has not yet gained sufficient strength to withstand even minimal loads.
• Over the next 7 days, the concrete must also be periodically moistened.
• After 10 days, the product can be moved. It is desirable to operate the ring after a full set of strength, which occurs no earlier than after 28 days.

Tip! The arrangement of wells may require machining of the rings, in which case diamond tools are used. For example, for drilling pipes, diamond drilling of holes in concrete is performed. If it is necessary to install the structure flush with the ground, the reinforced concrete is cut with diamond circles.

On this process, the manufacture of concrete rings completed.

Conclusion

Как мы видим, в изготовлении форм и самих бетонных колец нет ничего сверхсложного. Самое главное – выполнять работу не спеша и аккуратно. В таком случае вы получите существенную экономию при строительстве различных сооружений (см.также статью «Формы для бетонных изделий: советы специалистов, какую из них выбрать»).

From the video in this article, you can get more information on this topic.
