House of timber 6 on 7: we build on our own - Blog about repair

House of timber 6 on 7: we build on our own

23-05-2018
Building

The increasing popularity is gained by cottages from a bar. This is due to both the cost-effectiveness of this construction, and with good performance qualities of the built dwelling. One of the most common varieties of these buildings is a house of 6x7 lumber. On the features of its layout and construction, we now talk.

The building of timber 6 * 7

Advantages of houses from a bar

To begin, consider the question of why it is worth making your choice in favor of the house from a bar and logs. The answer to it lies in the advantages that such a structure has.

They are as follows:

  • ensuring an optimal microclimate - the tree is a "breathing" material. This means that it is able to take away excess moisture in room air. In addition, in the case of lack of moisture, the tree can allocate it;
  • opportunity to save - as already mentioned, these buildings are very economical. This is manifested in the fact that they can not produce interior decoration. In addition, wood is not only beautiful, but also a heat insulating material. And this, in turn, reduces heating costs;
  • the possibility of construction at sub-zero temperatures - a 6x7 lumber house can be built even in winter;
  • ease of installation - the assembly of such products is not particularly difficult. She can handle the usual home wizard;
  • environmental friendliness - wood is one of the most environmentally friendly materials. Therefore, being in a building built of timber, you can not fear for their health;
  • cozy atmosphere - it is pleasant to be in such a dwelling, because it creates a feeling of warmth and comfort.

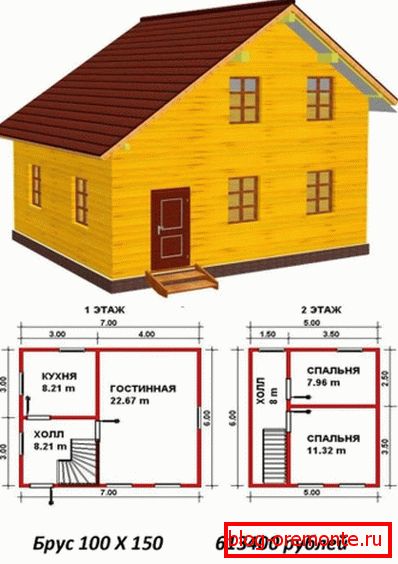

House project 6 * 7

We have already mentioned that the projects of houses from 6x7 lumber are very common. Their first feature is a large usable area. It allows residents to provide comfortable accommodation throughout all seasons of the year.

It should also be noted the ease of this design. It allows you to install the house on a lightweight foundation, consisting of concrete blocks. This makes it possible to save finances. In addition, the time required for the construction of the building is also reduced.

The project of the house of 6x7 lumber, being designed correctly, will allow you to get not a country house, but real suburban housing. By placing 4 rooms and a hall in it, you can ensure a comfortable living for a family with children. In addition, such a log house may be suitable for two small families.

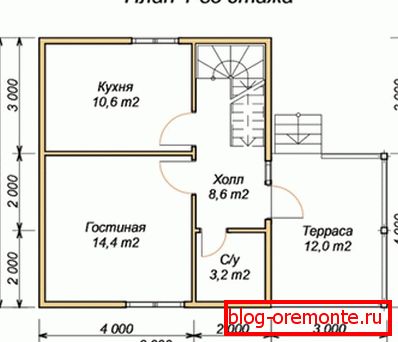

On the first floor you can put 4 rooms and a hall.

Despite the modest area, such a home can be very roomy. On the first floor you can arrange a spacious living room, as well as a kitchen and children's room. On the second floor is the place for two standard bedrooms.

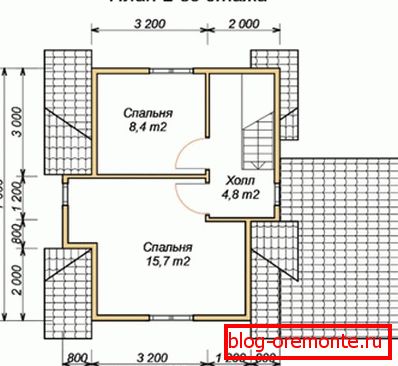

On the second floor we place 2 bedrooms

As a result, we get a layout that is not only functional enough, but also comfortable. It will make the house suitable for year-round living.

Tip! To make such a calculation on your own will be very difficult. Therefore, it is better to purchase a ready-made package of documents. Projects of houses from timber 6 7 can be purchased at any organization specializing in construction.

Erection of log houses

Foundation creation

Having a finished project in hand, you can proceed to the construction of the building. The process of building a house of timber begins with the laying of the foundation.

For this purpose, the layout of the future construction site. Further, trenches are dug out, formwork is installed and a sand cushion is poured. Next is a reinforcing frame and pouring concrete. The resulting construction must be kept for at least three days.

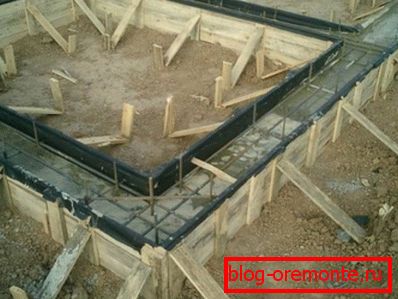

In the photo - formwork with reinforcing frame

Building a log house

Having prepared the base for housing, proceed to the assembly of the log house. For him, we take the bars, section 150 * 100 millimeters. We also have to prepare nogie.

These are special pins that are installed inside the timber. They are necessary in order to avoid the possible curvature of the walls. They are made of scraps of boards that remain after construction work.

Tip! Nagel needs to be made of more dry wood than timber. Subsequently, after shrinking, the resulting compound will become very durable.

Having collected all the necessary materials, we proceed to the assembly of our log house. First of all, let's lay a layer of mastic on the foundation with our own hands, and spread roofing material on top of it. It will be waterproofing.

After that, we proceed to the installation of the first crown of the structure. It should be laid as smoothly as possible. After all, the correctness of the entire subsequent assembly depends on the quality of its installation.

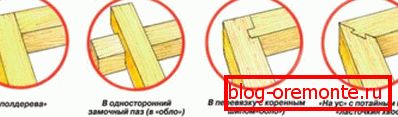

Connection methods

Bars need to connect the way, called "half-tree." To realize it, we make longitudinal and transverse cuts at the ends of the blanks. The extra part is removed chisel.

Then alternately install the following wreaths. And, of course, do not forget about the use of dowels.

They can be not only wooden, but also metal. Often, instead of them use nails having a length of 250-300 mm. But it is better not to use them, since this method of strengthening the structure is ineffective. When the load on the bend, the nails just start to leave their seats.

The use of wooden dowels is more preferable. They are round or square. Instructions for installing them below.

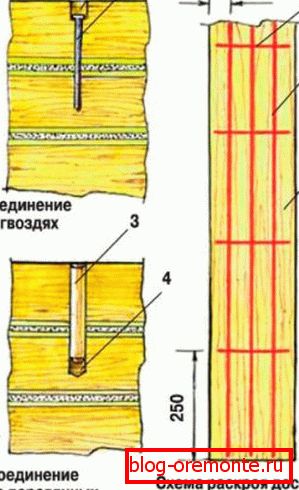

Mounting of a gate

First, with the help of a drill, holes are drilled in beams in staggered order. The distance between them should be 150-200 centimeters. After that we insert the pins into the grooves. They are installed through the crown.

The seams between the bars need to be warmed. To do this, you can use the usual moss.

Reaching the level of the windows, you should make a markup for the openings. It is produced in strict accordance with the existing project.

In this case, the minimum size of the opening will be equal to the width of the window block. Taking into account this size, we mount the crown with openings. Carrying out this work, we necessarily control the verticality of the elements. To do this, use a plumb or construction level.

After reaching the upper crown, we install the shoals. We mount them on all openings. This will make the structure we have assembled more reliable.

Conclusion

Houses from a bar become more and more popular. There are a number of reasons for this. And this is not only an affordable price. In such a dwelling, an optimal microclimate and a cozy atmosphere are created.

In addition, this structure is environmentally friendly and easy to install. Its additional plus is the possibility of carrying out construction work at low temperatures.

Among the variety of options for the execution of such housing, one of the most common is the house 6 * 7. With proper planning, it can become not just a country house, but a full-fledged suburban housing.

You can build such a building on your own. This will help you our recommendations outlined above.

In addition, we strongly advise you to familiarize yourself with the video material posted on our website. In the presented video in this article you will find additional information on this topic.
